WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-95716iCM5#,6#,KM5#,YM55,6#198610-199611

sub85110-27010

main85110-95718iCM5#,6#,KM51,YM55,6#198808-199611

sub85110-27020

main85110-95718iCM5#,6#,KM5#,YM55,60198610-198808

sub85110-27020

85160LINK ASSY, WINDSHIELD WIPER

main85160-95707iCM5#,6#,KM5#,YM55,6#198610-199611

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85168-95700iCM5#,6#,KM5#,YM55,6#198610-199611

85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

main85179-95701iCM5#,6#,KM5#,YM55,6#198610-199611

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08123iCM5#,6#,KM5#,YM55,6#198610-199311

main90179-08209iCM5#,6#,KM51,YM55,6#199311-199611

85190ARM ASSY, WINDSHIELD WIPER

main85190-95715iCM5#,6#,KM5#,YM55,6#198610-199611

main85210-95705iCM5#,6#,KM51,YM55,6#198610-199611

85192COVER, WINDSHIELD WIPER ARM

main85192-28020iCM5#,6#,KM5#,YM55,6#198610-199611

85220BLADE ASSY, WINDSHIELD WIPER

main85220-22500iCM65..TS;CM5#,60,61,KM51,YM55,6#198610-199611

main85220-32420iCM5#,6#,KM51,YM55,6#198610-199611

main85220-95712iCM5#,6#,KM5#,YM55,60198610-199003

sub85291-27010

main85220-95713iCM5#,6#,KM5#,YM55,60198610-199003

sub85291-27020

main85291-27010iCM65..TS;CM5#,60,61,KM51,YM55,6#199003-199611

main85291-27020iCM5#,6#,KM51,YM55,6#199003-199611

85221BLADE, WINDSHIELD WIPER

main85221-95703iCM5#,6#,KM51,YM55,6#198610-199611

sub85214-12H90

main85221-95704iCM5#,6#,KM5#,YM55,6#198610-199611

sub85214-27H90

85230BRACKET ASSY, WINDSHIELD WIPER

main85269-95700iCM5#,6#,KM5#,YM55,6#198610-199611

9009900913

main90099-00913

9011908063

main90119-08063

9011908198

main90119-08198

9165160814

main91651-60814

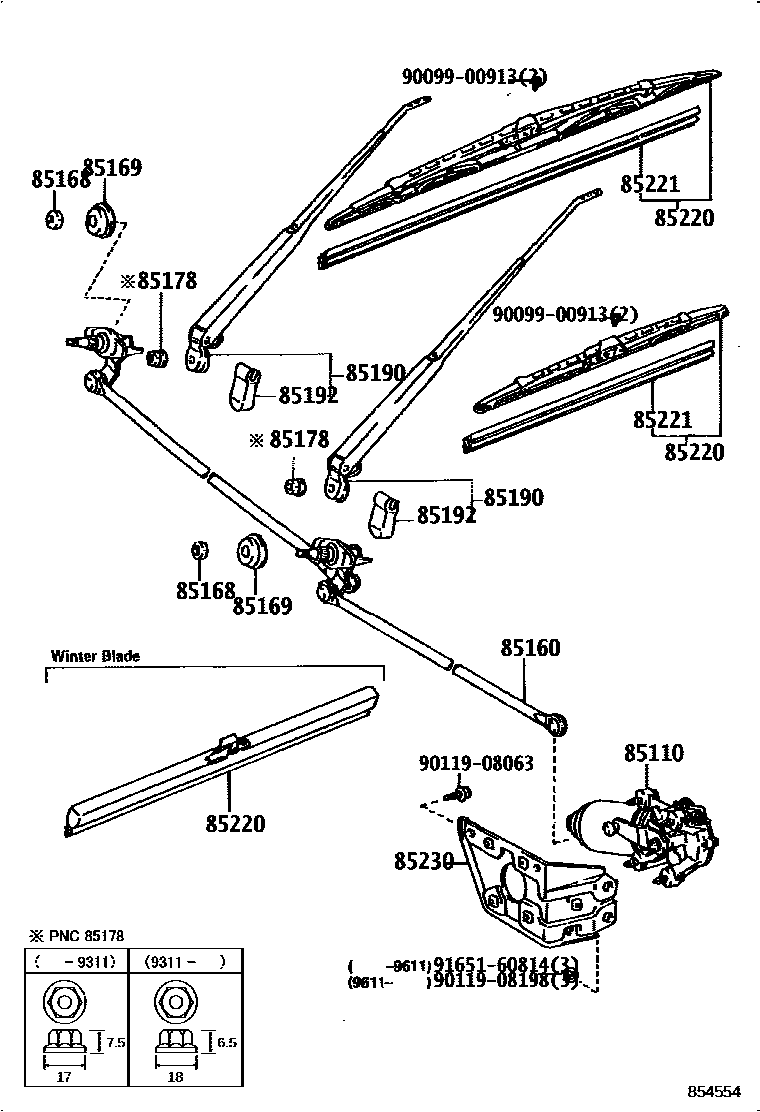

14 parts on this diagram · 1 diagram in section
