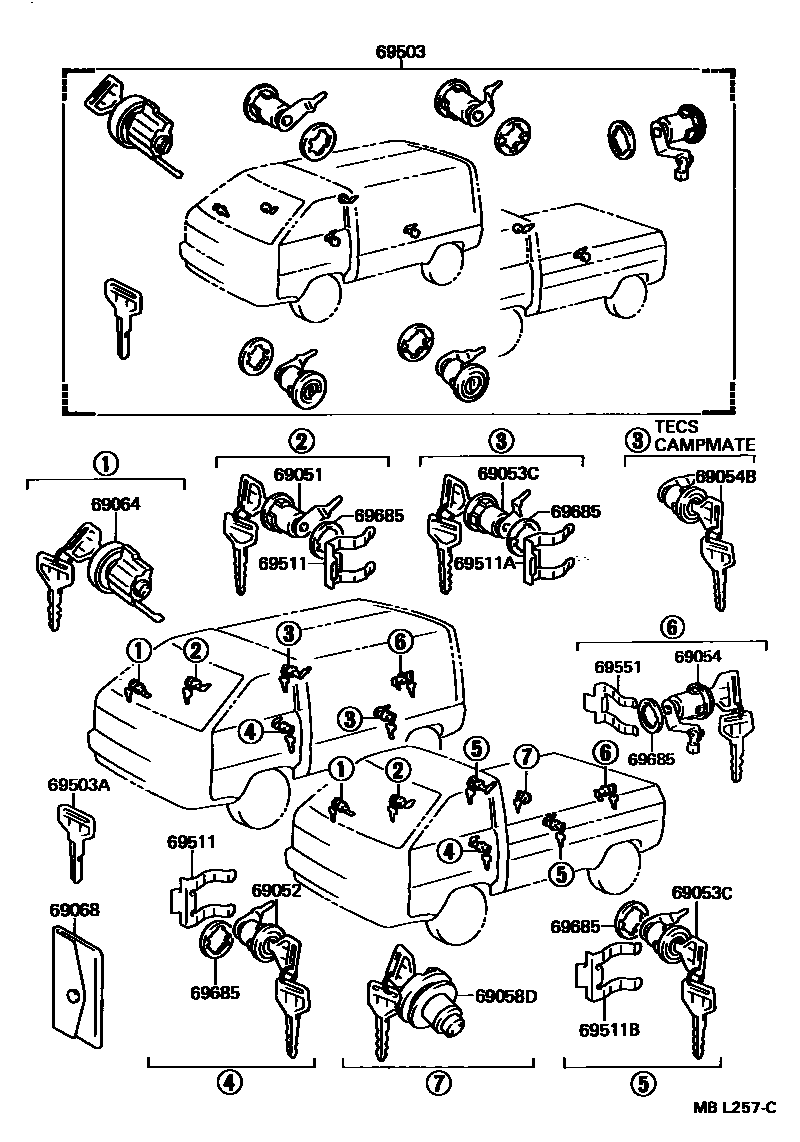

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-95703iCM5#,6#,KM5#,YM55,60198610-198711

sub69051-95715

main69051-95715iCM5#,6#,KM5#,YM55,6#..DX198711-199508

main69051-95717iKM51,YM60..SPX198910-199508

main69051-95717iCM65..IV198912-199310

TECS CAMPMATE

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-95703iCM5#,6#,KM5#,YM55,60198610-198812

sub69052-95715

main69052-95715iCM5#,6#,KM5#,YM55,6#198812-199508

69053CCYLINDER & KEY SET, TOP COVER LOCK

main69053-95708iKM5#..GUT;KM5#..TS..1SO;CM60,YM60..T1198610-199508

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69054-95704iCM60,KM50,YM60..GUT198610-198812

sub69054-95708

main69054-95708iCM60,KM5#,YM60..GUT198812-199508

main69054-95709iKM5#,YM60..TS..1SO198610-199508

69054BCYLINDER & KEY SET, SLIDE DOOR LOCK, LH

main69054-95711iCM65..IV198912-199310

TECS CAMPMATE

69058DCYLINDER & KEY SET, FUEL TANK FILLER

main69058-95406iCM52,61199110-199508

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-95711iCM5#,6#,KM5#,YM55,60198610-198710

sub69057-89108

main69057-95717iCM5#,6#,KM5#,YM55,6#198710-199508

69068COVER SUB-ASSY, KEY

main69555-20010iCM5#,6#,KM5#,YM55,6#198610-199611

69503CYLINDER SET, LOCK

main69503-27210iCM52,61199110-199508

main69503-27220iCM65..TS;CM51,55,60,KM51,YM55,6#..(1SO,3SO)..DX199508-199611

main69503-27230iKM51,YM60..TS..1SO..DX199508-199611

main69503-27240iCM60,KM51,YM60..GUT199508-199611

main69503-27250iKM51,YM60..SPX199508-199611

main69503-27260iKM51,YM60..SPX199508-199611

main69503-27270iCM52,61199508-199611

main69503-27280iCM51,55,60,65,KM51,YM55,6#..(1SO,3SO)..DX199611

main69503-27290iKM51,YM60..TS..1SO..DX199611

main69503-27300iCM60,KM51,YM60..GUT199611

main69503-27310iKM51,YM60..SPX199611

main69503-27320iKM51,YM60..SPX199611

main69503-27330iCM52,61199611

main69503-95753iCM5#,6#,KM5#,YM55,60..1SO,3SO198610-198710

main69503-95754iKM5#,YM60..TS..1SO198610-198710

W/TOP COVER

main69503-95755iCM60,KM50,YM60..GUT198610-198710

main69503-95779iCM5#,6#,KM5#,YM55,60..1SO,3SO198710-199508

main69503-95780iKM50,YM60..TS..1SO..DX198710-199008

W/TOP COVER

main69503-95780iKM51,YM60..TS..1SO..DX199008-199508

main69503-95781iCM60,KM5#,YM60..GUT198710-199508

main69503-95G05iKM51,YM60..SPX198910-199508

main69503-95G06iKM51,YM60..SPX198910-199508

main69503-95G07iCM65..IV198912-199310

69503AKEY, BLANK

main90999-00085iCM5#,6#,KM5#,YM55,6#198610-199508

main90999-00129iYM55;CM60..TB;CM55..SJLC;CM51,52,61,KM51,YM6#..3FC,5H198808-199508

sub90999-00212

main90999-00129iCM51,YM60..4H,4HC,5F;CM50,55,KM50..JL,SJL,T1;CM60,65..(JL,T1)..(GUT,TS);KM51,YM55..(SJL,T1)..(3HC,4H,5F)198610-199508

sub90999-00212

main90999-00130iCM5#,6#,KM51,YM55,6#199508-199906

sub90999-00153

main90999-00132iCM65..TS;CM5#,60,61,KM51,YM55,6#199508-199906

sub90999-00174

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-95400iCM5#,6#,KM5#,YM55,6#198610-199611

69511ARETAINER, SIDE TARPAULIN LOCK CYLINDER

main69511-95400iCM60,KM50,YM60..GUT198711-199008

main69511-95400iCM60,KM50,YM60..GUT198610-198711

69511BRETAINER, TOP COVER LOCK CYLINDER

main69511-95400iKM5#,YM60..TS..1SO198610

69551RETAINER, BACK DOOR LOCK CYLINDER

main69511-95400iKM5#..GUT;KM5#..TS..1SO;CM60,YM60..T1198610-198711

69685PAD, LOCK CYLINDER

main69513-27010iCM60,KM51,YM60..GUT199510

main69513-27010iCM60,KM51,YM60..GUT199510

SIDE

main69513-27010iCM65..TS;CM5#,60,61,KM51,YM55,6#..1SO,3SO199510-199611

main69513-32010iCM60,KM51,YM60..GUT199508

FRONT DOOR,BACK DOOR

main69513-32010iKM5#,YM60..TS..1SO198610-199508

main69513-32010iCM5#,6#,KM5#,YM55,6#..1SO,3SO198610-199508

main69513-32010iCM65..IV198912-199310

TECS CAMPMATE

main69513-32010iKM51,YM60..SPX198910-199508

main69563-16010iKM51,YM60..TS..1SO199508-199510

SIDE

main69563-16010iKM51,YM60..TS..1SO198610-199510

15 parts on this diagram · 2 diagrams in section
