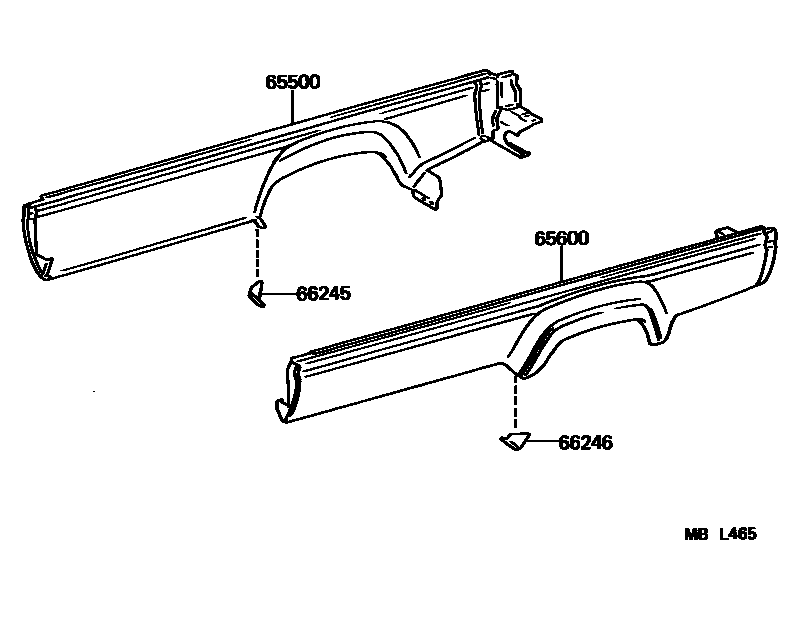

REAR BODY SIDE PANEL

0001 1 0002 1 0003 1 0004 1�-���-����(������)

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-27010iCM51,60,KM51,YM60..JL..5H..IV199204-199906

main65500-27020iCM65..TS..CBU;CM55,YM55,65..(JL,SJL)..CBU199310-199611

main65500-27030iCM55,65,YM55..JLC,SJLC199204-199906

main65500-27040iCM51,52,60,KM51,YM60..TS..3SO..(4HC,5H)..CBU199508-199906

main65500-27050iCM65..TS..CBU;CM55,YM55..SJL..CBU199508-199906

main65500-95704iCM55,65,YM55..CBU198711-198801

main65500-95705iKM5#,YM60..T1..1SO198610-199906

main65500-95706iKM5#,YM60..T1..1SO198711-199906

main65500-95707iCM50,51,60,KM5#,YM60..3SO198610-198711

main65500-95708iKM5#..GUT198610-199906

main65500-95709iKM5#..SJL..TS..1SO198610-199906

main65500-95710iKM5#..SJL..TS..1SO198610-198711

W/TOP COVER

main65500-95711iCM60,YM60..GUT198610-199906

main65500-95712iCM50,51,60,KM5#,YM60..3SO..CBU198801-198910

main65500-95713iCM55,65,YM55..CBU198801-198910

main65500-95714iCM55,65,YM55,65..(JL,SJL)..CBU198910-199204

main65500-95715iCM51,52,60,61,KM5#,YM60..3SO..CBU198910-199204

main65500-95716iCM55,65,YM55..JLC,SJLC198910-199204

main65500-95717iCM51,52,60,KM51,YM60..TS..3SO..(4HC,5H)..CBU199111-199508

main65500-95718iCM65..TS..CBU;CM55,YM55..SJL..CBU199408-199508

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-27010iCM51,60,KM51,YM60..JL..5H..IV199204-199906

main65600-27020iCM65..TS..CBU;CM55,YM55,65..(JL,SJL)..CBU199310-199611

main65600-27030iCM55,65,YM55..JLC,SJLC199204-199906

main65600-27040iCM51,52,60,KM51,YM60..TS..3SO..(4HC,5H)..CBU199508-199906

main65600-27050iCM65..TS..CBU;CM55,YM55..SJL..CBU199508-199906

main65600-95704iCM55,65,YM55198610-198711

main65600-95705iKM5#,YM60..T1..1SO198610-199906

main65600-95706iKM5#,YM60..T1..1SO198610-198711

W/TOP COVER

main65600-95707iCM50,51,60,KM5#,YM60..3SO198610-198711

main65600-95708iKM5#..GUT198610-199906

main65600-95709iKM5#..SJL..TS..1SO198610-199906

main65600-95710iKM5#..SJL..TS..1SO198711-199906

main65600-95711iCM60,YM60..GUT198610-199906

main65600-95712iCM50,51,60,KM5#,YM60..3SO..CBU198801-198910

main65600-95713iCM55,65,YM55..CBU198801-198910

main65600-95714iCM55,65,YM55,65..(JL,SJL)..CBU198910-199204

main65600-95715iCM51,52,60,61,KM5#,YM60..3SO..CBU198910-199204

main65600-95716iCM55,65,YM55..JLC,SJLC198910-199204

main65600-95717iCM51,52,60,KM51,YM60..TS..3SO..(4HC,5H)..CBU199111-199508

main65600-95718iCM65..JL..TS..CBU;CM55,YM55..SJL..5H..CBU199009-199408

66245PROTECTOR, REAR BODY, NO.3 RH

main66245-95701iKM5#..1SO;KM5#..GUT;CM60,YM60..T1198610-199906

66246PROTECTOR, REAR BODY, NO.3 LH

main66246-95701iKM5#..1SO;KM5#..GUT;CM60,YM60..T1198610

4 parts on this diagram · 4 diagrams in section
