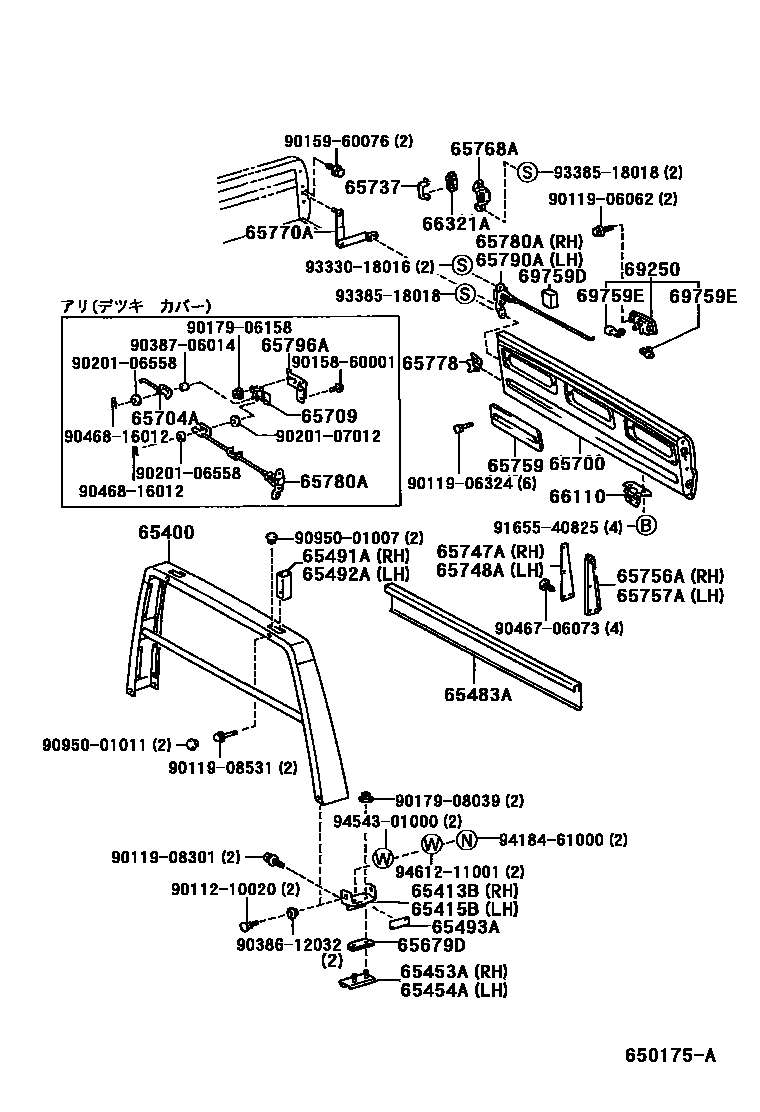

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1 0003 1 0004 1 0005 1

65400FRAME ASSY, REAR BODY GUARD

main65400-27010iKM51,YM60..1SO..DX199008

main65400-27020iKM51,YM60..SPX199008

main65400-27030iCM60,61,YM60..TS..3SO..CBU199110

main65400-95707iCM52,6#,YM6#..JL..TS..CBU198910

main65400-95710iCM65198610-198711

main65400-95711iCM50,51,KM50..JL..CBU198711-198910

main65400-95712iCM60,YM60..TS..3SO..CBU198711-198910

main65400-95713iCM55,YM55..TS198610-198711

main65400-95714iCM50,KM5#..SJL..TS..3SO198610-198711

main65400-95715iCM55,YM55..TB198610-198910

main65400-95716iKM50..TB198610-198910

main65400-95717iKM50,YM60..1SO..DX198610-199008

main65400-95720iKM51,YM60..SPX198610-199008

main65400-95721iCM60..TB198808-198910

main65400-95722iCM65..TB198808-198910

main65400-95723iCM51,60,KM51,YM60..JL..MTM..IV198912

main65400-95724iCM51,55,KM5#,YM55..SJL..TS..3SO..CBU198910

main65400-95725iCM55,65,YM55..JLC,SJLC198910

main65400-95726iCM65..IV199310-199611

main65400-95727iCM55,KM5#,YM55..TB198910

65413BBRACKET, GUARD FRAME, RH

main65413-95701iKM50,YM60..TS..1SO198610-198711

main65413-95702iKM5#..TJ198610

65415BBRACKET, GUARD FRAME, LH

main65415-95700iKM50,YM60..TS..1SO198610-198711

main65415-95703iKM5#..TJ198610

65453ARETAINER, GUARD FRAME BRACKET, RH

main65453-95701iKM51,YM60..TS..1SO199008

65454ARETAINER, GUARD FRAME BRACKET, LH

main65454-95700iKM5#,YM60..TS..1SO198610

65483ARAIL, HEADER BOARD, UPPER

main65483-95701iKM5#,YM60..TS..1SO198610

main65483-95702iKM5#,YM60..TS..1SO..(3HC,4H,5F,5H)198711

65491ASTOP, GUARD FRAME LOAD SLIDE, RH

main65491-27010iKM51,YM60..1SO199008

65492ASTOP, GUARD FRAME LOAD SLIDE, LH

main65491-27010iKM51,YM60..1SO199008

65493ASEAL, REAR BODY GUARD FRAME, NO.1

main65493-95701×2iKM5#,YM60..1SO198612-198711

65679DSEAL, SIDE GATE

main65679-95700×2iKM5#,YM60..1SO198610

65700GATE ASSY, REAR BODY TAIL

main65700-27010iCM5#,6#,KM51,YM55,6#..TS..3SO..CBU199204

main65700-27020iCM65..IV199310-199611

main65700-95703iKM5#,YM60..TS..1SO198610

main65700-95704iKM5#,YM60..TS..1SO198711

main65700-95705iCM5#,6#,KM5#,YM55,60..TS..3SO..CBU198711-198801

main65700-95706iKM5#..TJ198610

main65700-95707iCM55,KM50,YM55..TB198610-198801

main65700-95708iCM55,6#,KM50,YM55..TB198801-198910

main65700-95709iCM5#,6#,KM5#,YM55,60..TS..3SO..CBU198801-198910

main65700-95710iCM5#,6#,KM5#,YM55,6#..TS..3SO..CBU198910-199204

main65700-95711iCM55,60,65,KM5#,YM55..TB198910-199204

65704ALINK SUB-ASSY, TAIL GATE LOCK CONTROL

main65704-95700iKM5#,YM60..TS..1SO198610

65709BRACKET SUB-ASSY, TAIL GATE LOCK CONTROL

main65709-95700iKM5#,YM60..TS..1SO198610

65737STOP, TAIL GATE

main65737-89105×2iKM5#,YM60..1SO198610

65747APLATE, TAIL GATE SEAL, RH

main65747-95700iKM5#,YM60..TS..1SO198610

main65747-95701iKM5#..TJ198610

65748APLATE, TAIL GATE SEAL, LH

main65748-95700iKM5#,YM60..TS..1SO198610

main65748-95701iKM5#..TJ198610

65756ASEAL, TAIL GATE, RH

main65756-95700iKM5#,YM60..TS..1SO198610

main65756-95701iKM5#..TJ198610

65757ASEAL, TAIL GATE, LH

main65757-95700iKM5#,YM60..TS..1SO198610

main65757-95701iKM5#..TJ198610

65759COVER, TAIL GATE SERVICE HOLE

main65759-95700×3iKM5#,YM60..TS..1SO198610

main65759-95701iKM5#..TJ198610

65768ASTRIKER, TAIL GATE LOCK

main65768-89102×2iKM5#,YM60..1SO198610-198803

main65768-95700×2iKM5#..TJ198803

65770ASTAY ASSY, TAIL GATE

main65770-95700×2iKM5#,YM60..1SO198610-198801

main65770-95701×2iKM5#..TJ198801

65778STOPPER, TAIL GATE STAY

main65778-89104×2iKM5#,YM60..1SO198610

65780ALOCK ASSY, TAIL GATE, RH

main65780-95700iKM5#,YM60..1SO198610-198801

main65780-95701iKM5#..TJ198801

65790ALOCK ASSY, TAIL GATE, LH

main65790-95700iKM5#,YM60..1SO198610-198801

main65790-95701iKM5#,YM60..TS..1SO198610-199906

sub65790-27010

main65790-95702iKM5#..TJ198801-199906

65796ABASE, TAIL GATE LOCK CONTROL

main65796-95700iKM5#,YM60..TS..1SO198610

66110HINGE ASSY, TAIL GATE

main66110-95700×2iKM5#,YM60..TS..1SO198610

main66112-87402×3iCM5#,6#,KM5#,YM55,60..TS..3SO198610-198711

66321ABUMPER, GATE RUBBER

main66321-89108×2iKM5#,YM60..1SO198610

69250HANDLE ASSY, TAIL GATE LOCK

main69230-89101iKM5#,YM60..TS..1SO198801

main69230-95702iKM5#..TJ198801

69759DSILENCER, TAIL GATE LOCK LINK

main69759-95702×2iKM5#,YM60..1SO198610

69759ESNAP, TAIL GATE LOCK LINK

main69759-20100iKM5#,YM60..1SO198610-198711

RH

main69759-20110iKM5#,YM60..1SO198610-198711

LH

9011210020

main90112-10020

9011906062

main90119-06062

9011906324

main90119-06324

9011908301

main90119-08301

9011908531

main90119-08531

9015860001

main90158-60001

9015960076

main90159-60076

9017906158

main90179-06158

9017908039

main90179-08039

9020106558

main90201-06558

9020107012

main90201-07012

9038612032

main90386-12032

9038706014

main90387-06014

9046706073

main90467-06073

9046816012

main90468-16012

9095001007

main90950-01007

9095001011

main90950-01011

9165540825

main91655-40825

9333018016

main93330-18016

9338518018

main93385-18018

9418461000

main94184-61000

9454301000

main94543-01000

9461211001

main94612-11001
