ROOF PANEL & BACK PANEL

61243DPLATE, FRONT BODY PILLAR END, RH

main61243-95700×2iCM65..IV198912-199310

TECS CAMPMATE

62470ECLIP(FOR BACK PANEL TRIM)

main90467-10034×7iCM5#,6#,KM51,YM55,6#199812-199906

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-95706iCM65..TS;CM5#,60,61,KM51,YM55,6#..DX199310-199611

main63102-95707iCM5#,6#,KM51,YM55,6#..DX199611

63111PANEL, ROOF

main63111-95715iCM65..TS;CM5#,60,61,KM51,YM55,6#199310-199611

sub63111-27010

63138AREINFORCEMENT, BACK WINDOW, UPPER

main63138-95700iCM65..TS;CM5#,60,61,KM51,YM55,6#199310-199611

64110PANEL ASSY, FRONT BODY BACK

main64100-95700iCM65..TS;CM5#,60,61,KM51,YM55,6#..DX199310-199611

sub64111-27020

sub64115-27010

main64100-95701iCM65..TS;CM5#,60,61,KM51,YM55,6#199310-199611

sub64111-27020

sub64115-27010

sub64198-95700

sub90959-01285

64113PANEL, BACK CORNER, OUTER RH

main64103-95700iCM5#,6#,KM5#,YM55,60..3SO198610-198705

sub64103-27050

main64103-95701iCM60,KM50,YM60..GUT198610-198705

W/O BACK WINDOW GUARD BAR

sub64103-27010

main64103-95702iKM5#..TJ198711-199508

sub64103-27020

main64103-95704iCM65..IV198912-199310

TECS CAMPMATE

sub64103-27060

64114PANEL, BACK CORNER, OUTER LH

main64104-95700iCM5#,6#,KM5#,YM55,60..3SO198610-198705

sub64104-27050

main64104-95701iCM5#,6#,KM5#,YM55,60198705-198711

sub64104-27010

main64104-95702iKM5#..TJ198711-199508

sub64104-27010

main64104-95704iCM65..IV198912-199310

TECS CAMPMATE

sub64104-27060

64122ABAFFLE, DUST REAR BODY

main64122-27010iCM5#,6#,KM51,YM55,6#199012-199110

main64122-27030iCM5#,6#,KM51,YM55,6#199110-199310

main64122-95705iCM5#,6#,KM5#,YM55,6#198910-199012

main64122-95706iCM55,65,YM55198610-198910

64124PANEL, BACK CORNER, INSIDE, RH

main64015-95700iKM51,YM60..SPX198610

sub64015-27020

main64015-95701iCM65..TS;CM5#,60,61,KM51,YM55,6#..DX199310-199611

sub64015-27010

64125PANEL, BACK CORNER, INSIDE, LH

main64016-27010iCM51..SJL..IV;CM51,55..4HC..IV199611-199906

sub64016-27070

sub90333-25001

main64016-95700iCM5#,6#,KM5#,YM55,6#..DX198610-199310

sub64016-27050

sub90333-25001

main64016-95701iCM5#,6#,KM51,YM55,6#..DX199611-199906

sub64016-27060

sub90333-25001

64145CGUSSET, BACK PANEL, RH

main64145-95700iCM65..IV198912-199310

TECS CAMPMATE

64146CGUSSET, BACK PANEL, LH

main64146-95700iCM65..IV198912-199310

TECS CAMPMATE

64171BRACKET, CAB REAR MOUNTING

main64025-27010iCM5#,6#,KM51,YM55,6#199611

main64025-95700iCM5#,6#,KM5#,YM55,60198711-199008

main64026-95700iCM65..TS;CM5#,60,61,KM51,YM55,6#199310-199611

sub64026-27010

64180SILENCER ASSY, BACK PANEL

main64190-27010-B0iCM65..TS;CM5#,60,61,KM51,YM55,6#199508-199611

GRAY,TRIM1#

main64190-27010-B1iCM5#,6#,KM51,YM55,6#199611-199906

LIGHT GRAY,TRIM1#

main64190-95700-03iCM60,YM60..GUT198610-198711

GRAY,GRAY

64180ACLIP(FOR BACK PANEL SILENCER)

main90467-07054-13×9iKM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..(3HC,4H,4HC,5H)198610-198711

GRAY,GRAY

main90467-07054-B1×9iCM5#,6#,KM51,YM55,6#199611-199812

BLUISH GRAY,TRIM1#

64808CHANNEL SUB-ASSY, BACK WINDOW SLIDE GLASS

main64808-95700iYM55;CM65..TS;CM5#,60,61,KM51,YM6#..JL,SJL,T1199310-199611

64811GLASS, BACK WINDOW

main64811-27010iCM51,55,60,65,KM51,YM55,6#..DX199611-199906

main64811-95700iCM5#,6#,KM5#,YM55,6#..DX198610-199110

main64811-95701iCM51,55,60,65,KM51,YM55,6#..DX199110-199310

64811BLOCK ASSY, BACK WINDOW

main69370-89102iCM5#,6#,KM51,YM55,6#199611

64811CCATCH, BACK WINDOW LOCK

main69374-89102iCM5#,6#,KM5#,YM55,6#198610-199110

64811DRETAINER, BACK WINDOW

main69375-89102×2iCM5#,6#,KM5#,YM55,6#198610-199110

64811EPACKING, BACK WINDOW LOCK

main69376-89102×2iCM5#,6#,KM5#,YM55,6#198610-199110

64812WEATHERSTRIP, BACK WINDOW GLASS, NO.1

main64812-95700iCM5#,6#,KM51,YM55,6#199611

64812AWEATHERSTRIP, BACK WINDOW GLASS, NO.2

main64832-95700iYM55;CM5#,6#,KM51,YM6#..JL,JLC,SJL,T1199110-199310

64813AGLASS, BACK WINDOW CORNER, RH

main64813-27010iKM51,YM60..SPX199110-199906

main64813-27020iCM5#,6#,KM51,YM55,6#..DX199611-199906

main64813-95700iCM5#,6#,KM5#,YM55,6#198610-199110

64814AGLASS, BACK WINDOW CORNER, LH

main64814-27010iKM51,YM60..SPX199110-199906

main64814-27020iCM5#,6#,KM51,YM55,6#..DX199611-199906

main64814-95700iKM51,YM55..DX;CM65,YM60..(GUT,TS)..DX;CM5#,60,61,YM65..JL,SJL199310-199611

64821AGLASS, BACK WINDOW SLIDE, RH

main64821-27010iKM51,YM60..SPX199110-199906

main64821-27020iCM5#,6#,KM51,YM55,6#..DX199611-199906

main64821-95700iCM5#,6#,KM5#,YM55,6#198610-199110

64822AGLASS, BACK WINDOW SLIDE, LH

main64822-27010iKM51,YM60..SPX199110-199906

main64822-27020iCM5#,6#,KM51,YM55,6#..DX199611-199906

main64822-95700iCM5#,6#,KM5#,YM55,6#198610-199110

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-95700iCM65..TS;CM5#,60,61,KM51,YM55,6#199310-199611

64833AWEATHERSTRIP, BACK WINDOW CENTER CHANNEL

main64833-89109iCM5#,6#,KM5#,YM55,6#198610-199110

64834BWEATHERSTRIP, BACK WINDOW GLASS, INNER

main64834-95700×2iCM5#,6#,KM51,YM55,6#199611

64835AWEATHERSTRIP, BACK WINDOW GLASS, CENTER

main64835-95700iCM5#,6#,KM5#,YM55,6#198610-199110

64837AWEATHERSTRIP, BACK WINDOW CORNER

main64837-95700×2iCM5#,6#,KM5#,YM55,6#198610-199110

64839APACKING, BACK WINDOW

main64839-89103iCM5#,6#,KM5#,YM55,60198610-198711

RH,TYPE A

main64839-89104iCM5#,6#,KM5#,YM55,60198610-198711

LH,TYPE A

main64839-95700×2iYM55;CM65..TS;CM5#,60,61,KM51,YM6#..JL,SJL,T1199310-199611

64851STOP, BACK WINDOW SLIDE GLASS

main64851-89102iCM5#,6#,KM5#,YM55,6#198711-199110

UPPER

main64852-95700×2iYM55;CM5#,6#,KM51,YM6#..JL,JLC,SJL,T1199110-199310

LOWER

64881CHANNEL, BACK WINDOW GLASS

main64885-95700iCM5#,6#,KM5#,YM55,60198610-198711

RH

main64886-95700iYM55;CM5#,6#,KM51,YM6#..JL,JLC,SJL,T1199110-199310

64883FRAME, BACK WINDOW

main64881-95700×2iCM5#,6#,KM51,YM55,6#199611

66639BAR, BACK WINDOW GUARD, LOWER

main66639-95700iKM51,YM60..TS..1SO..DX199508

6777295J01WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-95J01

9015980034

main90159-80034

9016140013

main90161-40013

9016440069

main90164-40069

9020210089

main90202-10089

9033325001

main90333-25001

9046706040

main90467-06040

9095001557

main90950-01557

9354024010

main93540-24010

9354064012

main93540-64012

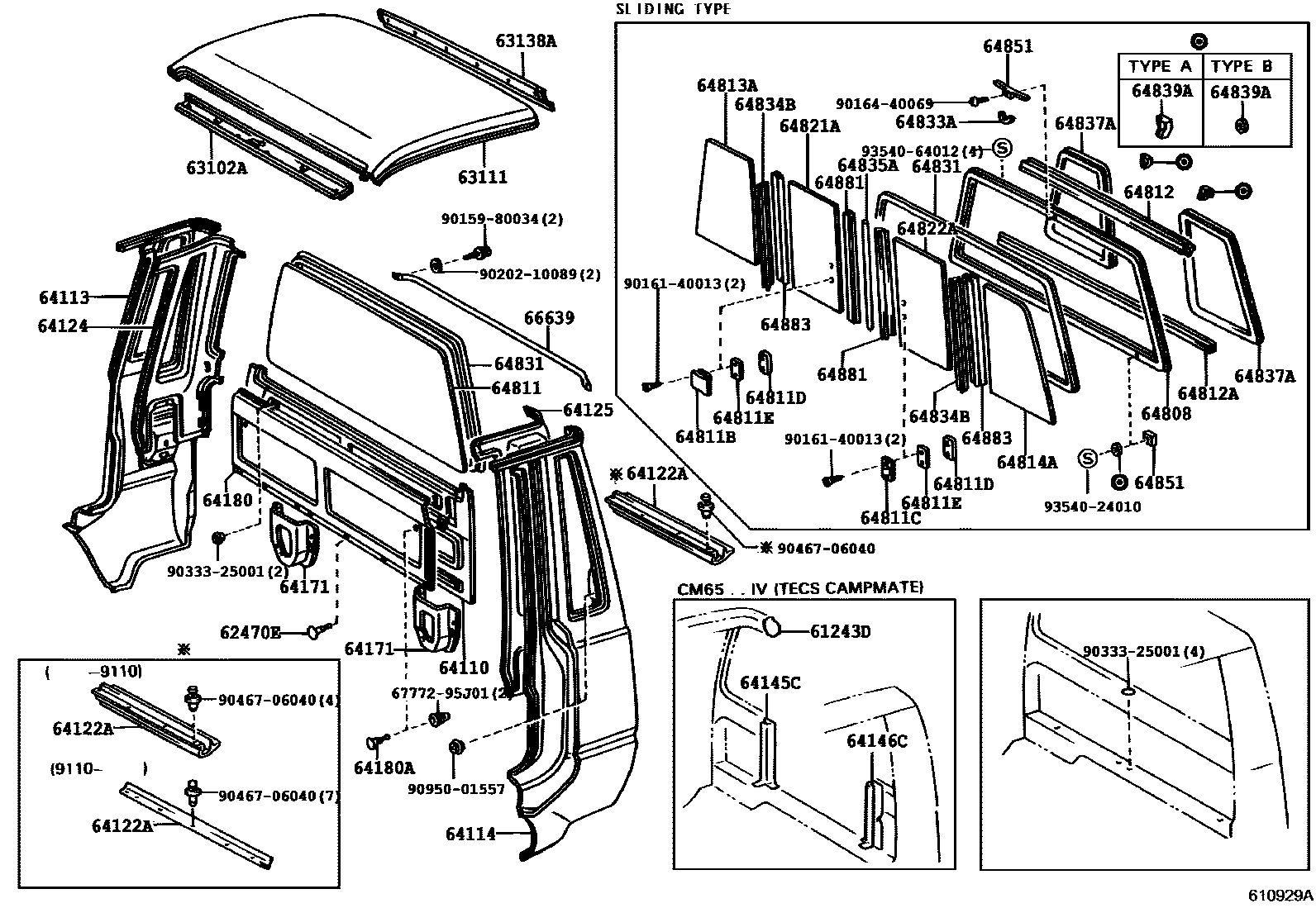

48 parts on this diagram · 1 diagram in section
