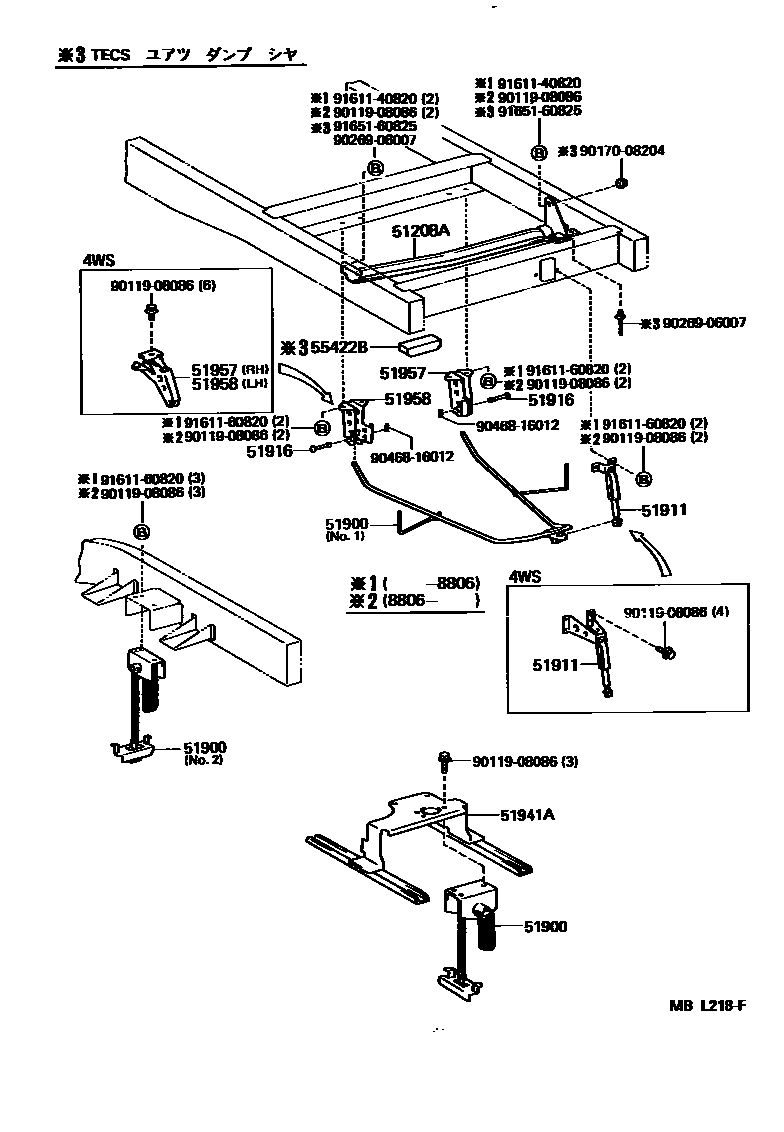

SPARE WHEEL CARRIER

51208AMEMBER SUB-ASSY, SPARE WHEEL SET

main51208-27030iCM52,61199110-199906

main51208-27040iCM51,55,60,65,KM51,YM55,6#199611-199906

sub51208-27050

main51273-27030iCM5#,6#,KM5#,YM55,6#198610-199110

51900CARRIER ASSY, SPARE WHEEL

main51900-27120iCM50,51,55,KM5#,YM55198610

main51900-27130iCM60,65,YM6#198610-199310

main51900-27140iCM50,51,55,KM5#,YM55..SJL,SJLC198610

main51900-27190iCM52,61199110

main51900-27230iCM55..5H..IV199404

main51900-35101iCM55..5H..IV199404

51911BOLT ASSY, SPARE WHEEL MOUNTING

main51910-27030iCM50,51,55,60,65,KM5#,YM55,6#198610-199310

main51910-27040iCM52,61199110

51916PIN, SPARE TIRE CARRIER

main51916-27020×2iCM5#,6#,KM5#,YM55,6#198610-199310

51941ABRACKET, SPARE WHEEL CARRIER

main51941-27140iCM55..5H..IV199404

51957BRACKET, SPARE WHEEL CARRIER HINGE, RH

main51941-27130iCM52,61199110

main51957-27020iCM65..TS;CM51,55,60,KM51,YM55,6#199310-199611

51958BRACKET, SPARE WHEEL CARRIER HINGE, LH

main51941-27130iCM52,61199110

main51958-27020iCM65..TS;CM51,55,60,KM51,YM55,6#199310-199611

55422BPAD, FRONT BUMPER SIDE

main55422-20070×2iCM51,60,KM51,YM60..JL..MTM..IV198910

9011908086

main90119-08086

9017008204

main90170-08204

9026906007

main90269-06007

9046816012

main90468-16012

9161140820

main91611-40820

9161160820

main91611-60820

9165160825

main91651-60825

15 parts on this diagram · 1 diagram in section
