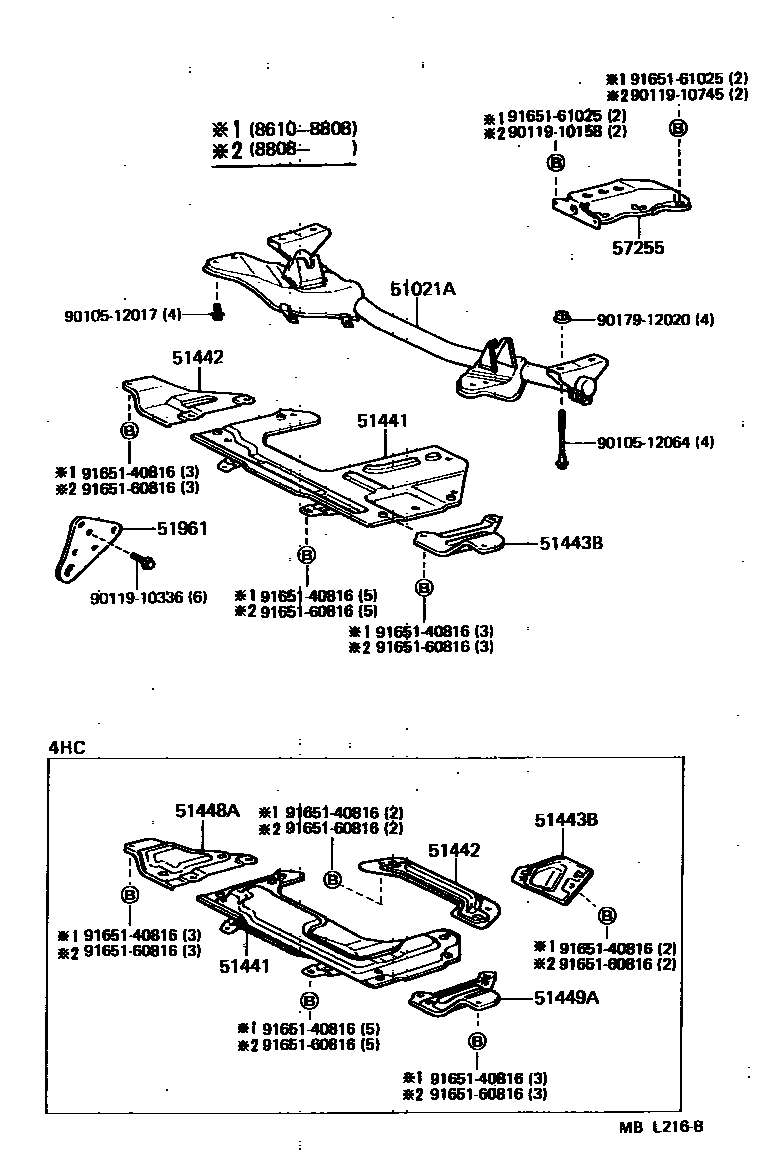

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1

51021AMEMBER SUB-ASSY, ENGINE FRONT SUPPORT

main51021-27010iKM5#198610

main51021-27020iYM55198610

main51021-27030iCM50,51,55198610

main51021-27040iYM6#198610

main51021-27050iCM60,65198610-199611

main51021-27060iCM52199110

51441COVER, ENGINE UNDER, NO.1

main51405-95701iCM50,55..5H198610-198808

sub51405-95707

main51405-95702iKM5#198610

main51405-95704iYM55198610

main51405-95706iCM6#,YM6#198808-199110

main51405-95707iCM55..IV;CM50,51..5H;CM55..5H..CBU198808

main51440-27010iCM51,55..4HC198610-198808

sub51440-27040

main51440-27040iCM51..4HC;CM55..4HC..CBU198808

main51441-95D00iCM52,6#,YM6#198610-199611

51442COVER, ENGINE UNDER, NO.2

main51442-95700iYM55;CM55..IV;CM55..5H..CBU;CM50,51,KM5#..3FC,3HC,4H,5F,5H198610

main51447-27020iCM55..4HC198610-199501

51443BCOVER, ENGINE UNDER, NO.3

main51443-95700iYM55;CM55..IV;CM55..5H..CBU;CM50,51,KM5#..3FC,3HC,4H,5F,5H198610

main51473-27010iCM55..4HC198610-199501

51448ACOVER, ENGINE SIDE UNDER, RH

main51440-27030iCM51..4HC;CM55..4HC..CBU198610

51449ACOVER, ENGINE SIDE UNDER, LH

main51450-27020iCM51..4HC;CM55..4HC..CBU198610

51961HOOK, NO.1

main51961-95700iCM50,51,55,KM5#,YM55198610

main51961-95701iCM52,6#,YM6#198610-199611

main51962-95700iCM52,6#,YM6#198610-199611

57255MEMBER, ENGINE REAR MOUNTING

main57255-27010iCM5#..5H198610

main57255-27020iKM51..ATM198610

main57255-27030iYM55..MTM198610

main57255-27040iCM6#198610

main57255-27050iYM6#;YM55..4HC198610

main57255-27060iCM51,55..4HC198610

9010512017

main90105-12017

9010512064

main90105-12064

9011910158

main90119-10158

9011910336

main90119-10336

9011910745

main90119-10745

9017912020

main90179-12020

9165140816

main91651-40816

9165160816

main91651-60816

9165161025

main91651-61025

17 parts on this diagram · 3 diagrams in section
