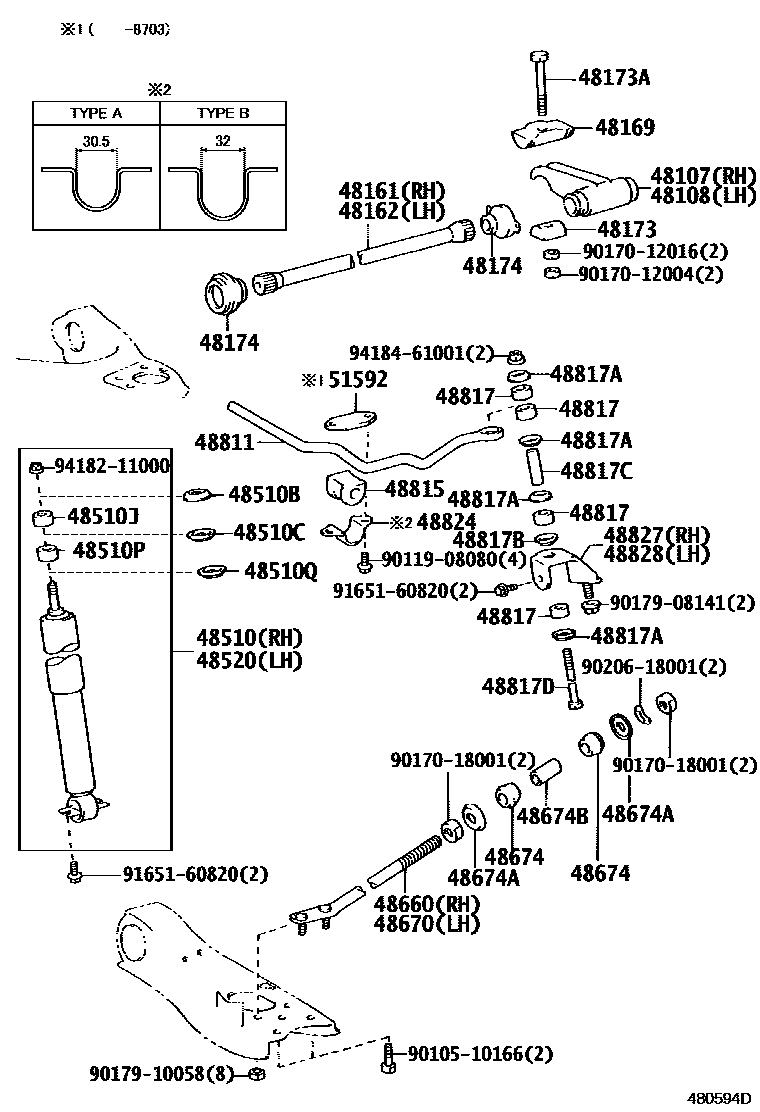

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48107ARM SUB-ASSY, ANCHOR, RH

main48107-27030iCM5#,6#,KM5#,YM55,60198610-198910

main48107-27050iCM65..TS;CM5#,60,61,KM51,YM55,6#199310-199611

48108ARM SUB-ASSY, ANCHOR, LH

main48108-27040iCM5#,6#,KM5#,YM55,60198610-198910

main48108-27050iCM5#,6#,KM5#,YM55,6#198910-199310

48161SPRING, TORSION BAR, RH

main48161-27120iCM52,6#,YM6#199611

main48161-27170iCM50,51,55,KM5#,YM55198610

main48161-27210iCM65..IV199611

48162SPRING, TORSION BAR, LH

main48162-27120iCM65..TS;CM52,60,61,YM6#199310-199611

main48162-27170iCM50,51,55,KM5#,YM55198610

main48162-27210iCM65..IV199611

48169SWIVEL, ANCHOR ARM

main48169-27020iCM5#,6#,KM5#,YM55,60198610-198711

48173SEAT, ANCHOR ARM ADJUSTER

main48173-27010iCM5#,6#,KM51,YM55,6#199611

main48173-27020iCM65..TS;CM5#,60,61,KM51,YM55,6#199310-199611

sub48173-27030

48173ABOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)

main90101-12059×2iCM5#,6#,KM5#,YM55,6#198610-199310

48174COVER, TORSION BAR DUST

main48174-27010×2iCM5#,6#,KM5#,YM55,60198610-198711

FR

main48175-27010×2iCM5#,6#,KM5#,YM55,60198711-198808

48510ABSORBER ASSY, SHOCK, FRONT RH

main48500-27120iCM5#,KM5#,YM55198610-198711

main48500-27130iCM6#,YM60198610-198711

main48500-29365iCM50,51,55,KM5#,YM55198711

sub48500-29366

main48500-29375iCM60,65,YM6#198711-199310

sub48500-29376

main48500-29495iCM65..IV198912-199310

sub48500-29496

main48500-29525iCM52199110-199703

main48500-29526iCM52199703

main48500-29535iCM61199110-199703

main48500-29536iCM61199703

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02002×2iCM5#,6#,KM5#,YM55,6#198610-199310

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02017×2iCM5#,6#,KM5#,YM55,60198610-198808

main90948-02123×2iCM5#,6#,KM5#,YM55,6#198808-199310

48510JCUSHION, FRONT SHOCK ABSORBER, NO.1

main90948-01003×2iCM5#,6#,KM5#,YM55,6#198610-199310

48510PCUSHION, FRONT SHOCK ABSORBER, NO.2

main90948-01029×2iCM5#,6#,KM5#,YM55,6#198610-199310

48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)

main90948-02076×2iCM5#,6#,KM51,YM55,6#199611

48520ABSORBER ASSY, SHOCK, FRONT LH

main48500-27120iCM5#,KM5#,YM55198610-198711

main48500-27130iCM6#,YM60198610-198711

main48500-29365iCM50,51,55,KM5#,YM55198711

sub48500-29366

main48500-29375iCM65..TS;CM60,YM6#199310-199611

sub48500-29376

main48500-29495iCM65..IV198912-199310

sub48500-29496

main48500-29525iCM52199110-199703

main48500-29526iCM52199703

main48500-29535iCM61199110-199703

main48500-29536iCM61199703

48660BAR ASSY, STRUT, RH

main48660-27020iCM50,51,55,KM5#,YM55198610

48670BAR ASSY, STRUT, LH

main48670-27020iCM50,51,55,KM5#,YM55198610

48674CUSHION, STRUT BAR

main48674-22021×4iCM50,51,55,KM5#,YM55198610

48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)

main90948-02030×4iCM50,51,55,KM5#,YM55198610

48674BCOLLAR(FOR STRUT BAR CUSHION)

main90387-18090×2iCM50,51,55,KM5#,YM55198610

48811BAR, STABILIZER, FRONT

main48804-28011iCM60,YM60..IV198910-199205

sub48811-28061

main48804-28012iCM65..IV199205

sub48811-28061

main48811-27080iCM50,51,KM5#..JL,T1198610

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-28030×2iCM52,61;CM60,65,YM60..IV198912

LOWER ARM SIDE

main48815-30050×2iCM50,51,KM5#..JL,T1198610-198703

main48815-30100×2iCM60,YM60..IV198910-198912

BODY SIDE

main48815-30120×2iCM50,51,KM5#..JL,T1198703

48817CUSHION, FRONT STABILIZER

main90948-01002×8iCM50,51,KM5#..JL,T1198610

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02004×8iCM50,51,KM5#..JL,T1198610

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02005×2iCM50,51,KM5#..JL,T1198610-198910

48817CCOLLAR(FOR STABILIZER BAR)

main90440-14004×2iCM50,51,KM5#..JL,T1198610

48817DBOLT(FOR FRONT STABILIZER)

main48819-28011×2iCM52,61;CM60,65,YM60..IV198912

main90101-10090×2iCM50,51,KM5#..JL,T1198610

48824BRACKET, STABILIZER, FRONT

main48824-12040×2iCM50,51,KM5#..JL,T1198610-198703

main48824-27040×2iCM50,51,KM5#..JL,T1198703

main48824-28030×2iCM52,61199110

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48824-27030iCM50,51,KM5#..JL,T1198610

main48827-28011iCM60,YM60..IV198910-199205

main48827-28012iCM65..IV199205

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48828-28011iCM52,61199110-199205

main48828-28012iCM65..IV199205

main48829-27030iCM50,51,KM5#..JL,T1198610

51592SPACER, STABILIZER BUSH

main51592-27010×2iCM50,51,KM5#..JL,T1198610-198703

9010510166

main90105-10166

9011908080

main90119-08080

9017012004

main90170-12004

9017012016

main90170-12016

9017018001

main90170-18001

9017908141

main90179-08141

9017910058

main90179-10058

9020618001

main90206-18001

9165160820

main91651-60820

9418211000

main94182-11000

9418461001

main94184-61001

42 parts on this diagram · 2 diagrams in section
