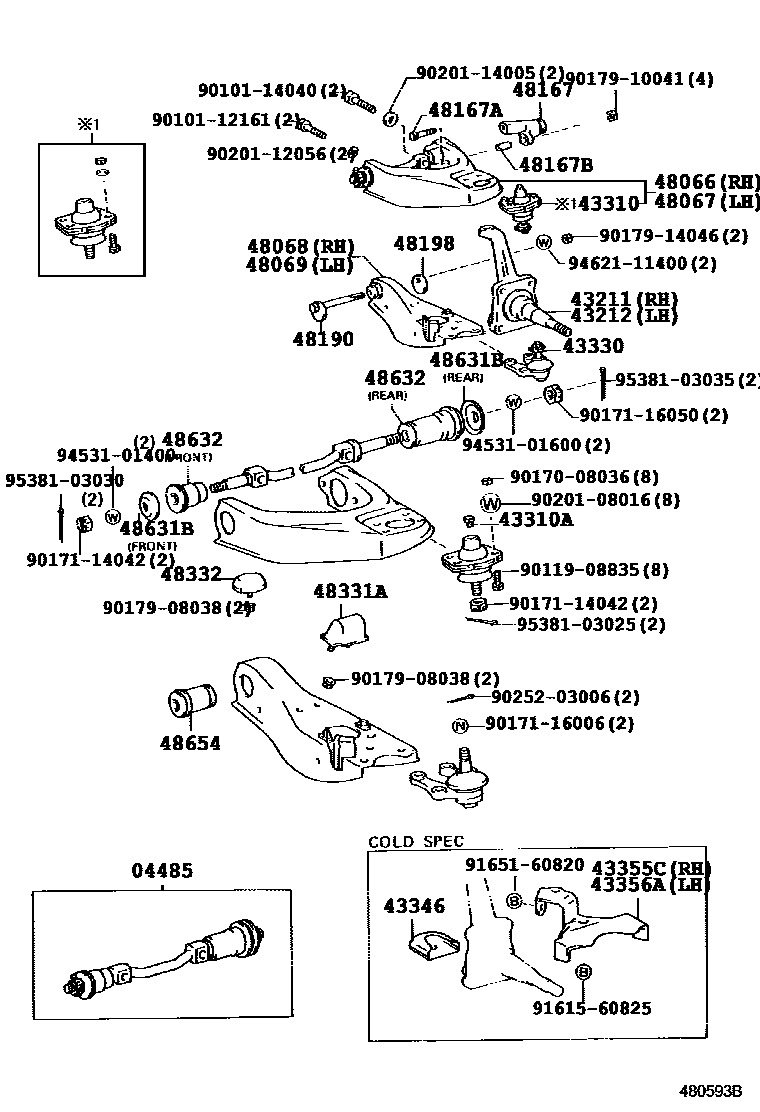

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

04485SHAFT KIT, UPPER SUSPENSION ARM

main04485-28020iCM50,51,55,KM5#,YM55198610

43211KNUCKLE, STEERING, RH

main43201-27010iCM52199110

main43201-28010iCM6#,YM6#198610-199611

main43211-27040iCM55..5H..IV199404

main43211-28021iCM50,51,55,KM5#,YM55198610-199310

main43211-28021iYM55..5H;CM51,KM51;CM55..CBU;CM55..5H..IV199310

43212KNUCKLE, STEERING, LH

main43202-27010iCM52199110

main43202-28010iCM6#,YM6#198610-199611

main43211-27040iCM55..5H..IV199404

main43211-28021iCM51,55,KM51,YM55199310

main43211-28021iYM55..MTM;CM55..CBU;CM50,51,KM5#;CM55..5H..IV198610

43310JOINT ASSY, UPPER BALL

main43350-29036iCM55..5H..IV;CM55..SJL..CBU;CM51,KM51..3HC,4HC,5F198711-199008

sub43350-29076

main43350-29036iCM5#,KM5#,YM55198610-198711

RH

sub43350-29076

main43350-29076iCM51,55,KM51,YM55199008

main43360-29056iCM5#,KM5#,YM55198711-199008

sub43350-29076

main43360-29056iCM5#,KM5#,YM55198610-198711

LH

sub43350-29076

43310APLUG (FOR BALL JOINT)

main90345-06014iCM5#,6#,KM5#,YM55,60198610-199611

43330JOINT ASSY, LOWER BALL, FRONT

main43330-29165iCM6#,YM60198610-198711

RH

sub43330-29166

main43330-29165iCM52,6#,YM6#198711-199201

sub43330-29166

main43330-29166iCM52,6#,YM6#199201-199611

main43330-29175iCM50,51,55,KM5#,YM55198610

sub43330-29545

main43340-29115iCM6#,YM60198610-198711

LH

sub43340-29116

main43340-29115iCM52,6#,YM6#198711-199201

sub43340-29116

main43340-29116iCM52,6#,YM6#199201-199611

43346PROTECTOR, LOWER BALL JOINT DUST COVER

main43346-28011iCM5#,KM5#,YM55198711-199102

sub43346-28012

main43346-28011iCM5#,KM5#,YM55198610-198711

COLD SPEC

sub43346-28012

main43346-28012iCM55..5H..IV199404

main43346-28012iCM55..4HC;CM55..5H..CBU;CM51,KM51,YM55199102-199404

43355CDEFLECTOR, LOWER ARM ICE, RH NO.1

main43355-27031iCM50,51,KM5#..JL,T1198610-198711

main43355-27031iCM50,51,KM5#..JL,T1198711

main43355-28021iCM50,55,KM5#,YM55..SJL198610-198711

main43355-28021iCM50,51,55,KM5#,YM55..SJL,SJLC198711

main43355-28060iCM65..TS;CM52,60,61,YM6#198711-199611

main43355-28060iCM6#,YM60198610-198711

COLD SPEC

main43355-28060iCM65..CBU;CM52,60,61,YM6#199611

43356ADEFLECTOR, LOWER ARM ICE, LH NO.1

main43355-28021iCM50,55,KM5#,YM55..SJL198610-198711

main43355-28021iCM50,51,55,KM5#,YM55..SJL,SJLC198711

main43355-28060iCM65..TS;CM52,60,61,YM6#198711-199611

main43355-28060iCM6#,YM60198610-198711

COLD SPEC

main43355-28060iCM65..CBU;CM52,60,61,YM6#199611

main43356-27021iCM50,51,KM5#..JL,T1198610-198711

main43356-27021iCM50,51,KM5#..JL,T1198711

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48066-28030iCM52,6#,YM6#198610-199201

sub48066-28050

main48066-28050iCM52,6#,YM6#199201-199611

main48610-28012iCM5#,KM5#,YM55198610-199008

sub48610-28013

main48610-28013iCM51,55,KM51,YM55199008

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48067-28030iCM52,6#,YM6#198610-199201

sub48067-28050

main48067-28050iCM65..TS;CM52,60,61,YM6#199201-199611

main48630-28012iCM5#,KM5#,YM55198610-199008

sub48630-28013

main48630-28013iCM51,55,KM51,YM55199008

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-27050iCM5#,KM5#,YM55198610-198808

sub48068-28040

main48068-28030iCM6#,YM60198610-198712

main48068-28031iCM52,6#,YM6#198712-199611

main48068-28040iCM50,51,55,KM5#,YM55198809-199412

sub48068-28080

main48068-28070iCM51,55,KM51,YM55199608

main48068-28080iCM51,55,KM51,YM55199412-199608

sub48068-28070

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-27050iCM5#,KM5#,YM55198610-198808

sub48069-28040

main48069-28030iCM6#,YM60198610-198712

main48069-28031iCM52,6#,YM6#198712-199611

main48069-28040iCM50,51,55,KM5#,YM55198809-199412

sub48069-28080

main48069-28070iCM51,55,KM51,YM55199608

main48069-28080iCM51,55,KM51,YM55199412-199608

sub48069-28070

48167ARM, TORQUE

main48106-27040iCM50,51,55,KM5#,YM55198808

main48106-27050iCM52,6#,YM6#198808-199611

sub48106-38020

main48106-28010iCM5#,KM5#,YM55198610-198808

main48106-28020iCM6#,YM60198610-198808

48167ABOLT(FOR TORQUE ARM SETTING)

main90101-10177iCM51,55,KM5#,YM55199003

main91121-71085iCM5#,KM5#,YM55198610-199003

48167BTUBE(FOR TORQUE ARM SETTING BOLT)

main90440-17029iCM50,51,55,KM5#,YM55198610

48190CAM ASSY, CAMBER ADJUST

main48190-27010iCM6#,YM60198610-198910

sub48190-27020

sub90179-14046

main48190-27020iCM52,6#,YM6#198910-199611

48198CAM, CAMBER ADJUST, NO.2

main48198-27010iCM5#,6#,KM5#,YM55,60198610-199611

48331ABUMPER, FRONT SPRING, NO.1

main48331-27060iCM50,51,55,KM5#,YM55198610

sub48331-29055

main48331-27080iCM55..5H..IV199404

main48331-28020iCM52,6#,YM6#198610-199611

48332BUMPER, FRONT SPRING, NO.2

main48305-30030iCM65..TS;CM5#,60,61,KM51,YM55,6#198610-199611

48631BRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)

main90948-02048iCM50,51,55,KM5#,YM55198610

REAR

main90948-02049iCM50,51,55,KM5#,YM55198610

FRONT

48632BUSH, UPPER ARM

main48632-27010iCM50,51,55,KM5#,YM55198610

FRONT

main48635-28010iCM50,51,55,KM5#,YM55198610

REAR

48654BUSH, LOWER ARM

main48061-27010iCM5#,KM5#,YM55198610-198611

sub48061-27011

main48061-27011iCM50,51,55,KM5#,YM55198611

main48061-28020iCM6#,YM60198610-198611

sub48061-28021

main48061-28021iCM52,6#,YM6#198611-199611

9010112161

main90101-12161

9010114040

main90101-14040

9011908835

main90119-08835

9017008036

main90170-08036

9017114042

main90171-14042

9017116006

main90171-16006

9017116050

main90171-16050

9017908038

main90179-08038

9017910041

main90179-10041

9017914046

main90179-14046

9020108016

main90201-08016

9020112056

main90201-12056

9020114005

main90201-14005

9025203006

main90252-03006

9161560825

main91615-60825

9165160820

main91651-60820

9453101400

main94531-01400

9453101600

main94531-01600

9462111400

main94621-11400

9538103025

main95381-03025

9538103030

main95381-03030

9538103035

main95381-03035

45 parts on this diagram · 2 diagrams in section
