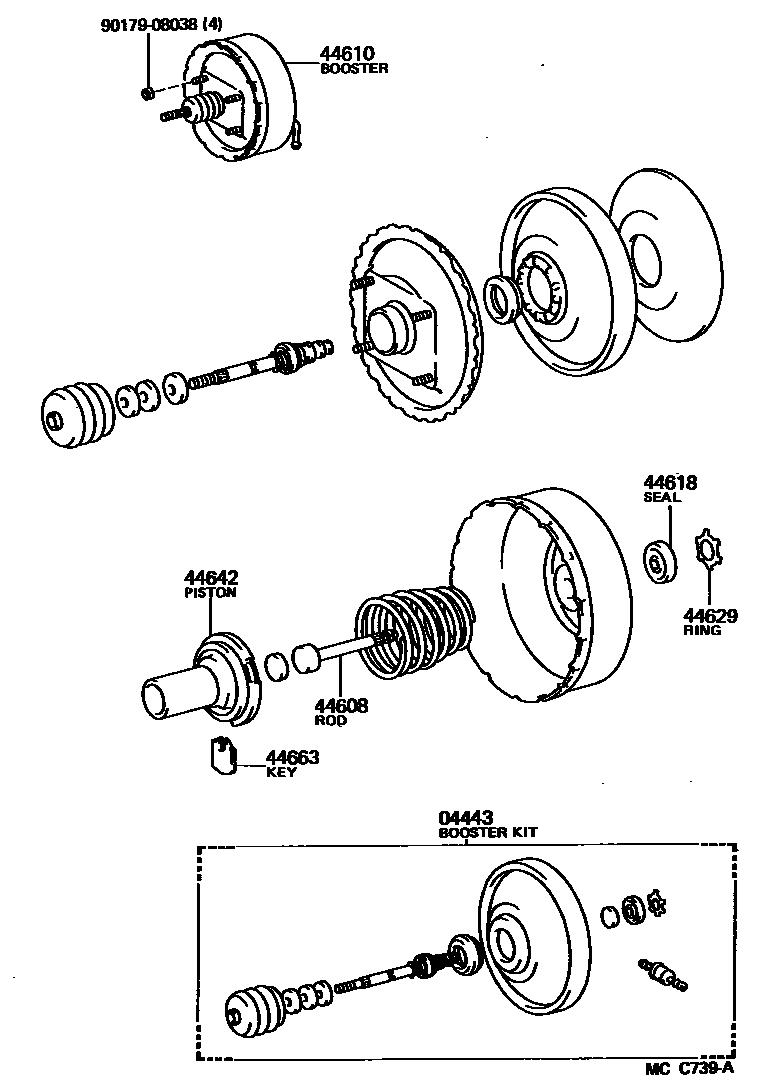

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

04443BOOSTER KIT, BRAKE

main04443-27200iKM5#,YM55,60198610-198808

main04443-27210iCM5#,6#198610-198808

main04443-27370iYM55..5H;KM50,YM60;KM51,YM55..(SJL,T1)..(3HC,4H,5F)198808-199410

main04443-27380iCM51..4HC;CM50,55,60,65..JL,SJL,T1198808-199410

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iCM5#,6#,KM5#,YM55,6#198610-199410

44610BOOSTER ASSY, BRAKE

main44610-27240iCM5#,6#,KM5#,YM55,60198610-198808

main44610-27350iCM5#,6#,KM5#,YM55,6#198808

44618SEAL, BOOSTER BODY

main44621-28120iCM5#,6#,KM5#,YM55,6#198610-199410

44629RING, CIRCULAR INTERNAL

main44628-28120iCM5#,6#,KM5#,YM55,6#198610-199410

44642PISTON, BRAKE BOOSTER

main44642-12520iCM5#,6#,KM5#,YM55,6#198610-199410

44663KEY, VALVE STOPPER

main44635-12630iCM5#,6#,KM5#,YM55,6#198808-199410

main44635-28120iCM5#,6#,KM5#,YM55,60198610-198808

9017908038

main90179-08038

8 parts on this diagram · 4 diagrams in section
