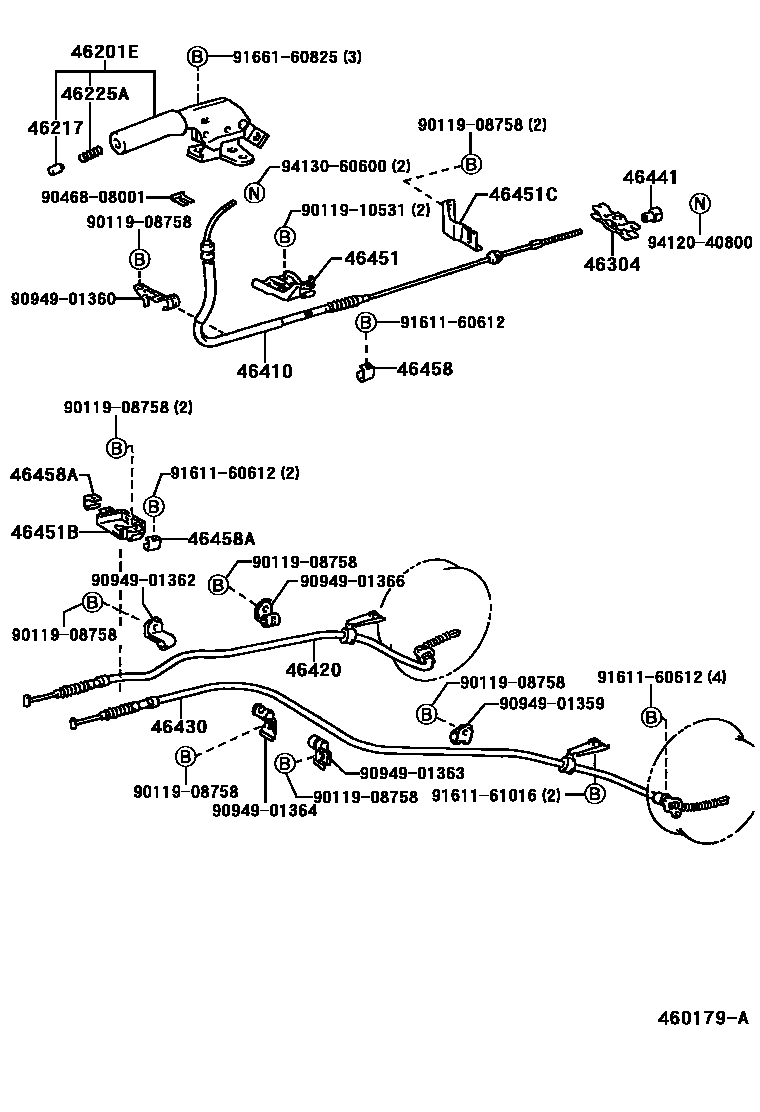

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-27020-03iKM51,YM60..SPX198610-198803

MEDIUM GRAY,TRIM1#

sub46201-27021

main46201-27020-04iCM5#,6#,KM5#,YM55,60..DX198610-198803

BLUE,TRIM8#

sub46201-27021

main46201-27021-03iKM51,YM60..SPX198803-198910

MEDIUM GRAY,TRIM1#

sub46201-27021

main46201-27021-04iCM5#,6#,KM5#,YM55,60..DX198803-198910

BLUE,TRIM8#

sub46201-27021

main46201-27021-13iCM5#,6#,KM5#,YM55,6#198910-199611

GRAY,TRIM1#

sub46201-27021

main46201-27021-B0iCM5#,6#,KM51,YM55,6#199611-199906

GRAY,TRIM1#

sub46201-27021

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020-03iCM5#,6#,KM5#,YM55,6#198910-199009

SHADOW GRAY,TRIM1#

sub46217-12020

sub46217-16030

main46217-12020-04iCM5#,6#,KM5#,YM55,60..DX198803-198910

DEEP BLUE,TRIM8#

sub46217-12020

sub46217-16030

main46217-12020-B0iKM51,YM60..SPX198803-198910

MEDIUM GRAY,TRIM1#

sub46217-12020

sub46217-16030

main46217-12020-B2iCM5#,6#,KM51,YM55,6#199009-199611

SHADOW GRAY,TRIM1#

sub46217-12020

sub46217-16030

main46217-12020-B3iCM5#,6#,KM51,YM55,6#199611-199803

BLUISH GRAY,TRIM1#

sub46217-12020

sub46217-16030

main46217-16030-B1iCM5#,6#,KM51,YM55,6#199803-199906

BLUISH GRAY,TRIM1#

sub46217-16030

main46217-20020-14iCM5#,6#,KM5#,YM55,60..DX198802-198803

DEEP BLUE,TRIM8#

sub46217-20020

main46217-20020-24iCM5#,6#,KM5#,YM55,60..DX198610-198802

BLUE,TRIM8#

sub46217-20020

main46217-20020-33iKM51,YM60..SPX198610-198803

MEDIUM GRAY,TRIM1#

sub46217-20020

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10132iCM5#,6#,KM5#,YM55,6#198810

main90501-10745iCM5#,6#,KM5#,YM55,60198610-198810

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-22020iCM5#,6#,KM5#,YM55,6#198610

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-27170iKM5#,YM55,6#198610

main46410-27180iCM5#,6#198610

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-27210iCM50,51,KM5#..SJL198610-199110

main46420-27211iCM51,KM51..SJL199110-199902

main46420-27212iCM51,KM51..SJL199902-199906

main46420-27220iCM55,YM55198610-199110

sub46420-27221

main46420-27221iCM55,YM55199110-199902

main46420-27222iCM55,YM55199902-199906

main46420-27230iCM60,YM60198610-199110

sub46420-27231

main46420-27231iCM60,YM60199110-199906

main46420-27240iCM65,YM65198610-199110

sub46420-27241

main46420-27241iCM65,YM65199110-199906

main46420-27250iCM50,51,KM5#..JL,T1198610-199110

main46420-27251iCM51,KM51..JL,T1199110-199902

main46420-27252iCM51,KM51..JL,T1199902-199906

main46420-27300iCM55..5H..IV199404-199906

main46420-27310iCM52,61199110-199906

main46420-27320iCM65..IV199611-199906

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-27210iCM50,51,KM5#..SJL198610-199110

main46430-27211iCM51,KM51..SJL199110-199902

main46430-27212iCM51,KM51..SJL199902-199906

main46430-27220iCM55,YM55198610-199110

main46430-27221iCM55,YM55199110-199902

main46430-27222iCM55,YM55199902-199906

main46430-27230iCM60,YM60198610-199110

main46430-27231iCM60,YM60199110-199906

main46430-27240iCM65,YM65198610-199110

main46430-27241iCM65,YM65199110-199906

main46430-27250iCM50,51,KM5#..JL,T1198610-199110

main46430-27251iCM51,KM51..JL,T1199110-199902

main46430-27252iCM51,KM51..JL,T1199902-199906

main46430-27300iCM55..5H..IV199404-199906

main46430-27310iCM52,61199110-199906

main46430-27320iCM65..IV199611-199906

46441NUT, WIRE ADJUSTING, NO.1

main46441-35010iCM5#,6#,KM5#,YM55,6#198610

46451BRACKET, CABLE SUPPORT

main46451-27080iCM5#,6#,KM5#,YM55,6#198610

46451BBRACKET, PARKING BRAKE CABLE SUPPORT

main46451-27090iCM5#,6#,KM5#,YM55,6#198610

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-27100iCM5#,6#,KM5#,YM55,6#198610

46458RETAINER, CABLE

main46458-28010iCM5#,6#,KM5#,YM55,6#198610

46458ARETAINER, CABLE

main46458-28010iCM5#,6#,KM5#,YM55,6#198610

9011908758

main90119-08758

9011910531

main90119-10531

9046808001

main90468-08001

9094901359

main90949-01359

9094901360

main90949-01360

9094901362

main90949-01362

9094901363

main90949-01363

9094901364

main90949-01364

9094901366

main90949-01366

9161160612

main91611-60612

9161161016

main91611-61016

9166160825

main91661-60825

9412040800

main94120-40800

9413060600

main94130-60600

27 parts on this diagram · 3 diagrams in section
