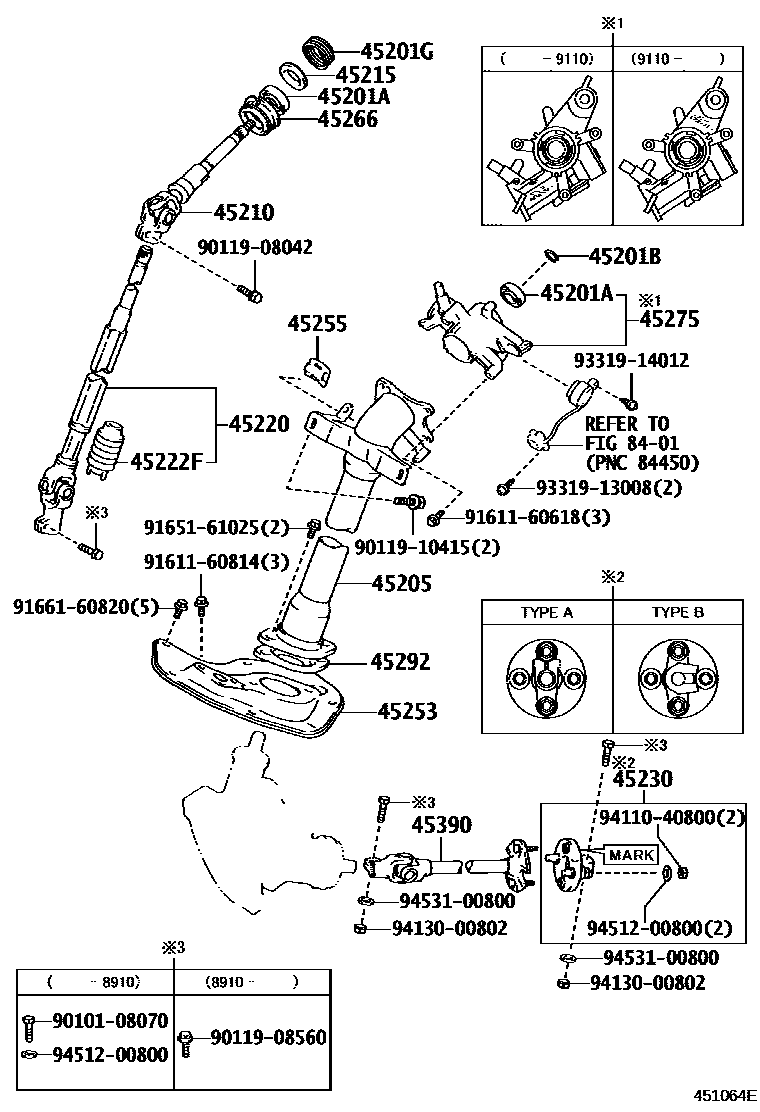

STEERING COLUMN & SHAFT

0001 1 0002 1��(��� �������) 0003 1��(��� �������) 0004 1 0005 1 0006 1 0007 1

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18001iCM5#,6#,KM5#,YM55,60198610-198711

UPR

main90363-18001iCM5#,6#,KM5#,YM55,6#198711-199611

main90363-28001iCM5#,6#,KM51,YM55,6#198711-199611

main90363-28001iCM5#,6#,KM5#,YM55,60198610-198711

LWR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iCM5#,6#,KM5#,YM55,6#198610-199611

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-45011iCM65..TS;CM5#,60,61,KM51,YM55,6#198610-199611

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-27130iCM65..TS;CM5#,60,61,KM51,YM55,6#..5H198610-199611

main45205-27131iCM5#,6#,KM51,YM55,6#..3FC,5F,5H199611

main45205-27150iKM51,YM60..SPX198910-199611

main45205-27170iCM51,55,KM51,YM55..ATM..DX198910-199611

main45205-27171iCM51,55,KM51,YM55..ATM..DX199611

45210SHAFT ASSY, STEERING MAIN

main45210-22050iCM5#,6#,KM5#,YM55,6#198610-199305

main45210-22120iCM5#,6#,KM51,YM55,6#199305-199611

sub45210-22050

main45210-27100iCM5#,6#,KM51,YM55,6#199611

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-22011iCM5#,6#,KM5#,YM55,6#198610-199611

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-27090iCM65..TS;CM5#,60,61,KM51,YM55,6#198610-199611

45222FCOVER, DUST

main45222-60031iCM5#,6#,KM5#,YM55,6#198610-199611

45230COUPLING ASSY, FLEXIBLE

main45230-27020iCM5#,KM5#,YM55..DX198610-199002

main45230-27030iCM5#,KM51,YM55198610-198711

main45230-27030iKM51..SPX198711-199002

main45230-27030iKM51..SPX198711-199002

main45230-27080iCM51,55,KM5#,YM55..DX199002

main45230-27090iCM51,55,KM51,YM55..DX199310

main45230-27090iKM51..SPX199002

main45230-27090iCM51,55,KM51,YM55..DX199002-199310

main45230-27100iCM52,6#,YM6#199310-199611

main45230-27100iCM52,6#,YM6#199002-199310

main45230-28010iCM6#,YM60198610-199002

45253COVER, STEERING COLUMN HOLE

main45253-27110iCM5#,6#,KM5#,YM55,6#..MTM..DX198610-199611

main45253-27120iKM51,YM60..3FC,5F198610

main45253-27150iCM51,55,KM51,YM55..ATM..DX198910

45255PLATE, STEERING COLUMN HOLE COVER

main45255-27010iCM5#,6#,KM5#,YM55,60198711-199611

main45255-27010iCM5#,6#,KM5#,YM55,60198610-198711

UPR BRACKET SIDE

main45266-27020iCM5#,6#,KM5#,YM55,60198704-198711

STEERING GEAR SIDE

sub45266-27021

45266COVER, STEERING INTERMEDIATE SHAFT DUST

main45266-27010iCM5#,6#,KM5#,YM55,6#..MTM..DX198610-199611

main45266-27020iCM5#,6#,KM5#,YM55,60198708-198903

sub45266-27021

main45266-27021iCM65..TS;CM5#,60,61,KM51,YM55,6#198903-199611

45275BRACKET, STEERING COLUMN, UPPER

main45280-27091iCM5#,6#,KM5#,YM55,60..3HC,4H,4HC,5H198610-198710

main45280-27092iCM5#,6#,KM5#,YM55,6#..MTM..DX198710-199110

main45280-27100iKM51,YM60..5F198610-198710

main45280-27101iKM51,YM60..5F198710-198910

main45280-27111iKM51,YM60..5F198910-199110

main45280-27170iKM51..3FC198910-199110

main45280-27180iCM5#,KM51..ATM..DX198910-199110

main45280-27210iCM5#,6#,KM51,YM55,6#..5H199110-199611

main45280-27220iKM51,YM60..5F199110-199611

main45280-27230iKM51..3FC199110-199611

main45280-27240iCM51,55,KM51,YM55..ATM..DX199110-199611

main45280-27251iCM5#,6#,KM51,YM55,6#..MTM199611

sub45280-27271

main45280-27261iCM51,55,KM51,YM55..ATM..DX199611

main45280-27271iKM51..3FC199611

45292SEAL, MAIN SHAFT LOWER DUST

main45292-27020iCM5#,6#,KM5#,YM55,6#198610-199611

45390SHAFT ASSY, STEERING TORQUE

main45390-27010iCM5#,KM5#,YM55..DX198610-199002

sub45390-27060

sub45230-27080

main45390-27020iCM5#,KM51,YM55198610-199002

sub45390-27070

sub45230-27090

main45390-27030iCM6#,YM60198610-199002

sub45390-27080

sub45230-27100

main45390-27060iCM51,55,KM5#,YM55..DX199002

main45390-27070iCM51,55,KM51,YM55199002

main45390-27080iCM65..TS;CM52,60,61,YM6#199310-199611

main45390-27080iCM52,6#,YM6#199002-199310

8401

9010108070

main90101-08070

9011908042

main90119-08042

9011908560

main90119-08560

9011910415

main90119-10415

9161160618

main91611-60618

9161160814

main91611-60814

9165161025

main91651-61025

9166160820

main91661-60820

9331913008

main93319-13008

9331914012

main93319-14012

9411040800

main94110-40800

9413000802

main94130-00802

9451200800

main94512-00800

9453100800

main94531-00800

30 parts on this diagram · 7 diagrams in section
