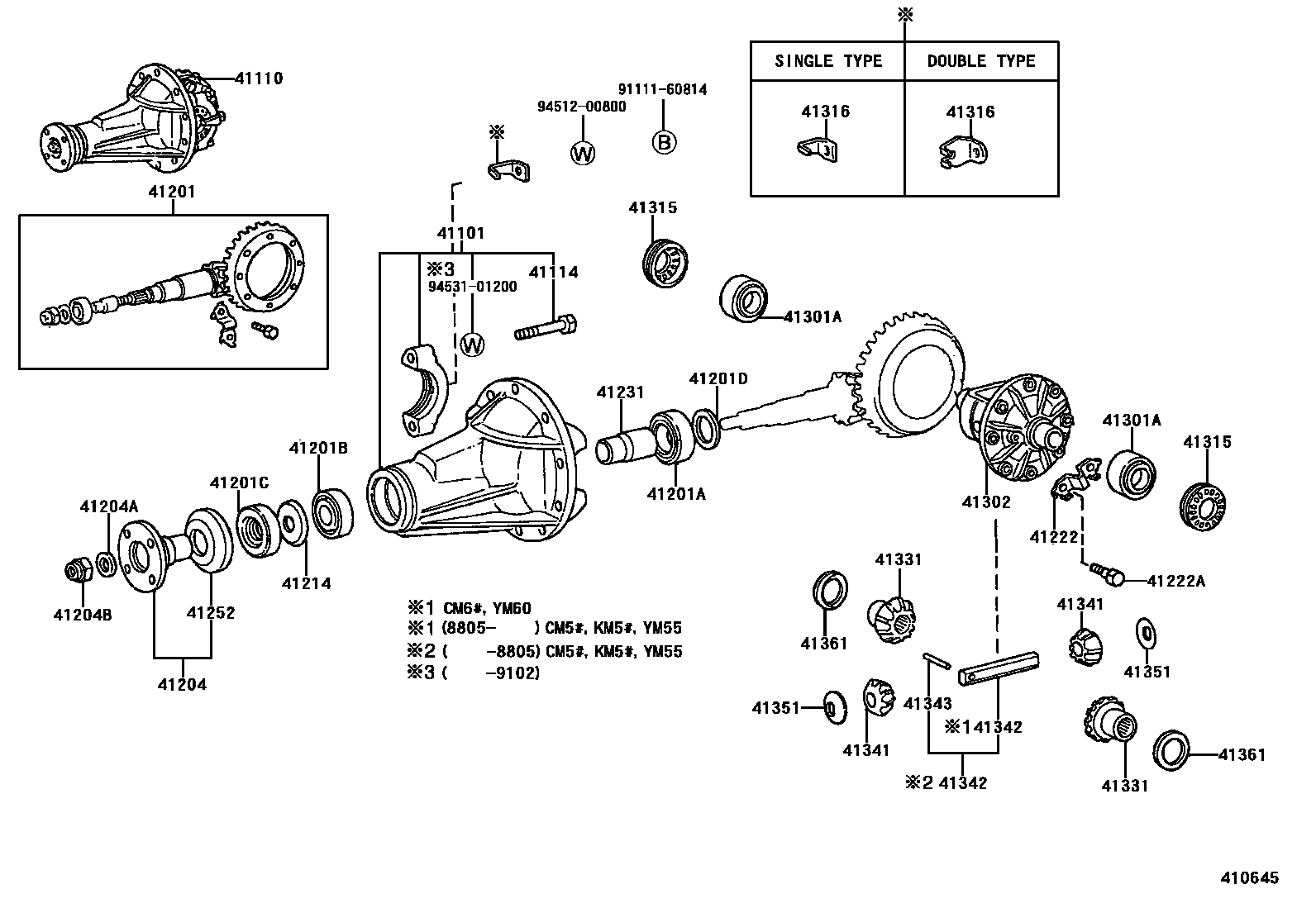

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0003 1 0004 1 0005 1 0006 1������ ����� ����������

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-30010iCM50,51,55,KM5#,YM55198610

main41101-30031iCM52,6#,YM6#198610-199611

main41101-30031iCM55..5H..IV199404

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-20241iCM50,55,YM55..(SJL,SJLC)..MTM198711

main41110-20241iCM50,55,YM55..MTM198610-198711

main41110-21020iCM51..JL..5H;CM55,YM55..4HC;KM51..SJL..MTM198711-199008

main41110-21020iCM55..4HC;CM50,KM5#..SJL198610-198711

main41110-22110iKM50..SJL;CM50,51..JL198610-198711

sub41110-27120

main41110-22110iCM50..JL;CM51..4HC;KM50..SJL198711-199101

sub41110-27120

main41110-22240iCM51..SJL198910

main41110-27030iKM5#..JL,T1198711

sub41110-27100

main41110-27030iCM51..4HC..IV199310-199508

sub41110-27100

main41110-27030iKM5#..JL,T1198610-198711

sub41110-27100

main41110-27040iKM50..JL,T1198610-198711

sub41110-27110

main41110-27040iKM50..JL,T1198711-199008

sub41110-27110

main41110-27120iCM51,KM51..ATM199101

main41110-27120iCM55..4HC199310-199508

main41110-28090iCM6#,YM60198610-198711

main41110-28090iCM6#,YM6#198711-199611

main41110-28120iCM6#,YM60198610-198711

main41110-28120iCM65..TS;CM60,61,YM6#198711-199611

main41110-30170iCM52199110

main41110-30490iCM55..5H..IV199404

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90101-12376iCM51,55,KM51,YM55198610-199208

main90105-12053iCM52,6#,YM6#199102-199611

main90105-12053iCM55..5H..IV199404

main90105-12240iCM51,55,KM51,YM55199208

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29217iCM55..4HC;CM50,KM5#..SJL198610-198711

main41201-29217iCM55..4HC;CM51..JL..5H;CM50,KM5#..SJL198610-199008

main41201-29277iKM50..JL,T1198610-198711

sub41201-29895

main41201-29277iKM50..JL,T1198610-199008

sub41201-29895

main41201-29307iCM51..4HC..IV199310-199508

sub41201-29865

main41201-29307iKM5#..JL,T1198610-198711

sub41201-29865

main41201-29307iKM5#..JL,T1198610

sub41201-29865

main41201-29765iCM51..SJL198910

main41201-39287iCM50..JL;CM51..4HC;KM50..SJL198610-199101

sub41201-80020

main41201-39287iKM50..SJL;CM50,51..JL198610-198711

sub41201-80020

main41201-39298iCM6#,YM60198610-198908

sub41201-80017

main41201-39298iCM6#,YM60198610-198711

sub41201-80017

main41201-39555iCM50,55,YM55..MTM198610-198711

main41201-39555iCM50,55,YM55..(SJL,SJLC)..MTM198610

main41201-80015iCM55..5H..IV199404

main41201-80020iCM55..4HC199310-199508

main41201-80020iCM51,KM51..ATM199101

main41201-80030iCM52,6#,YM6#198908-199611

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35023iCM52,6#,YM6#198610-199611

main90366-35023iCM55..5H..IV199404

main90366-35031iCM50,51,55,KM5#,YM55198610-199509

sub90366-35064

main90366-35067iCM51,55,KM51,YM55199509

sub90366-35064

main90366-35073iCM52,6#,YM6#199008-199311

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30022iCM5#,6#,KM5#,YM55,60198610-199509

sub90366-30078

main90366-30022iCM65..TS;CM52,60,61,YM6#199509-199610

sub90366-30078

main90366-30055iCM52,6#,YM6#199008-199611

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38047iCM55..5H..IV199512

main90311-38047iCM65..TS;CM52,60,61,YM6#199512-199611

main90311-38133iCM65..TS;CM5#,60,61,KM51,YM55,6#198610-199512

sub90311-38047

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35396iCM65..TS;CM5#,60,61,KM51,YM55,6#198610-199611

main90201-35397iCM5#,6#,KM5#,YM55,6#198610-199611

main90201-35398iCM65..TS;CM5#,60,61,KM51,YM55,6#198610-199611

main90201-35399iCM65..TS;CM5#,60,61,KM51,YM55,6#198610-199611

main90201-35400iCM65..TS;CM5#,60,61,KM51,YM55,6#198610-199611

main90201-35401iCM5#,6#,KM5#,YM55,6#198610-199611

main90201-35402iCM65..TS;CM5#,60,61,KM51,YM55,6#198610-199611

main90201-35403iCM5#,6#,KM51,YM55,6#198610-199611

main90201-35404iCM5#,6#,KM51,YM55,6#198610-199611

main90201-35434iCM5#,6#,KM5#,YM55,6#198610-199309

sub90201-35515

main90201-35435iCM5#,6#,KM5#,YM55,6#198610-199309

sub90201-35516

main90201-35436iCM5#,6#,KM5#,YM55,6#198610-199309

sub90201-35517

main90201-35437iCM5#,6#,KM5#,YM55,6#198610-199309

sub90201-35518

main90201-35438iCM65..TS;CM5#,60,61,KM51,YM55,6#198610-199611

main90201-35439iCM5#,6#,KM5#,YM55,6#198610-199611

main90201-35440iCM5#,6#,KM51,YM55,6#198610-199611

main90201-35441iCM65..TS;CM5#,60,61,KM51,YM55,6#198610-199611

main90201-35515iCM65..TS;CM5#,60,61,KM51,YM55,6#199309-199611

main90201-35516iCM65..TS;CM5#,60,61,KM51,YM55,6#199309-199611

main90201-35517iCM65..TS;CM5#,60,61,KM51,YM55,6#199309-199611

main90201-35518iCM5#,6#,KM51,YM55,6#199309-199611

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-20030iCM5#,KM5#,YM55198610-199308

main41204-20050iCM51,55,KM51,YM55199304-199308

sub41204-20030

main41204-35050iCM6#,YM6#198610-199611

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-18485iCM5#,6#,KM5#,YM55,6#198610-199308

41204BNUT (FOR REAR DRIVE PINION)

main90179-18001iCM5#,6#,KM5#,YM55,6#198610-199308

main90179-18020iCM52,6#,YM6#199304-199611

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-30021iCM65..TS;CM5#,60,61,KM51,YM55,6#198610-199611

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-28010iCM50,51,55,KM5#,YM55198610

main41222-30040iCM6#,YM60198610-198706

sub41222-35030

main41222-35030iCM52,6#,YM6#198706-199611

main41222-35030iCM55..5H..IV199404

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iCM52,6#,YM6#198610-199611

main90101-11353iCM55..5H..IV199404

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iCM55..5H..IV199404

main41231-22010iCM52,6#,YM6#198610-199611

main41231-22020iCM50,51,55,KM5#,YM55198610

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-20010iCM51,55,KM51,YM55199304-199308

sub41252-30010

main41252-30010iCM65..TS;CM5#,60,61,KM51,YM55,6#198610-199611

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90368-45011iCM5#,KM5#,YM55198708-199104

sub90368-45014

main90368-45014iCM51,55,KM51,YM55199104

main90368-45066iCM55..5H..IV199404

main90368-45066iCM6#,YM6#198610-199611

main90368-50024iCM6#,YM6#198610-199611

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-22011iCM6#,YM6#198610-199611

main41311-30022iCM50,51,55,KM5#,YM55198610

main41311-30050iCM52,6#,YM6#198610-199611

sub41311-28010

main41311-30050iCM55..5H..IV199404

sub41311-28010

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-30010iCM50,51,55,KM5#,YM55198610

main41315-35010iCM55..5H..IV199404

main41315-35010iCM52,6#,YM6#198610-199611

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-30010iCM5#,6#,KM5#,YM55,6#198610-199308

main41316-35010iCM5#,6#,KM51,YM55,6#199308-199611

main41317-30010iCM5#,6#,KM51,YM55,6#198610-199611

41331GEAR, REAR DIFFERENTIAL SIDE

main41305-22010iCM6#,YM6#198610-199611

main41331-22070iCM51,55,KM51,YM55199008-199610

sub41039-28010

main41331-30021iCM5#,KM5#,YM55198610-199008

sub41331-22070

main41331-30030iCM55..5H..IV199404

main41331-30030iCM52,6#,YM6#198610-199611

41341PINION, REAR DIFFERENTIAL

main41341-14031iCM6#,YM6#198610-199611

main41341-22030iCM51,55,KM51,YM55199008-199610

sub41039-28010

main41341-30011iCM5#,KM5#,YM55198610-199008

main41341-30020iCM55..IV;CM65..TS;CM52,60,61,YM6#198610-199611

sub41341-30050

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-22020iCM52,6#,YM6#198610-199611

sub41342-22021

main41342-22020iCM55..5H..IV199404

sub41342-22021

main41342-30011iCM50,51,55,KM5#,YM55198805

main41342-39015iCM5#,KM5#,YM55198610-198805

sub41342-30011

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06058iCM5#,6#,KM5#,YM55,6#198610-199611

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30032iCM50,51,55,KM5#,YM55198610

main41351-30060iCM65..TS;CM52,60,61,YM6#198610-199611

main41351-30060iCM55..5H..IV199404

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-22020iCM50,51,55,KM5#,YM55198610

main41361-22030iCM50,51,55,KM5#,YM55198610

main41361-22040iCM50,51,55,KM5#,YM55198610

main41361-22140iCM50,51,55,KM5#,YM55198610

main41361-22150iCM50,51,55,KM5#,YM55198610

main41361-22160iCM50,51,55,KM5#,YM55198610

main41361-28020iCM6#,YM60198610-198702

sub41361-28130

main41361-28030iCM6#,YM60198610-198702

sub41361-28140

main41361-28040iCM6#,YM60198610-198702

sub41361-28150

main41361-28050iCM6#,YM60198610-198702

sub41361-28160

main41361-28060iCM6#,YM60198610-198702

sub41361-28170

main41361-28070iCM6#,YM60198610-198702

sub41361-28180

main41361-28080iCM6#,YM60198610-198702

sub41361-28190

main41361-28090iCM6#,YM60198610-198702

sub41361-28200

main41361-28100iCM6#,YM60198610-198702

sub41361-28210

main41361-28110iCM6#,YM60198610-198702

sub41361-28220

main41361-28130iCM6#,YM6#198610-199611

main41361-28140iCM6#,YM6#198610-199611

main41361-28150iCM6#,YM6#198610-199611

main41361-28160iCM6#,YM6#198610-199611

main41361-28170iCM6#,YM6#198610-199611

main41361-28180iCM6#,YM6#198610-199611

main41361-28190iCM65..TS;CM60,61,YM6#198610-199611

main41361-28200iCM65..TS;CM60,61,YM6#198610-199611

main41361-28210iCM6#,YM6#198610-199611

main41361-28220iCM6#,YM6#198610-199611

main41361-30040iCM65..TS;CM52,60,61,YM6#198610-199611

main41361-30040iCM55..5H..IV199404

main41361-30050iCM52,6#,YM6#198610-199611

main41361-30050iCM55..5H..IV199404

main41361-30060iCM65..TS;CM52,60,61,YM6#198610-199611

main41361-30060iCM55..5H..IV199404

main41361-30070iCM52,6#,YM6#198610-199611

main41361-30070iCM55..5H..IV199404

9111160814

main91111-60814

9451200800

main94512-00800

9453101200

main94531-01200

29 parts on this diagram · 5 diagrams in section
