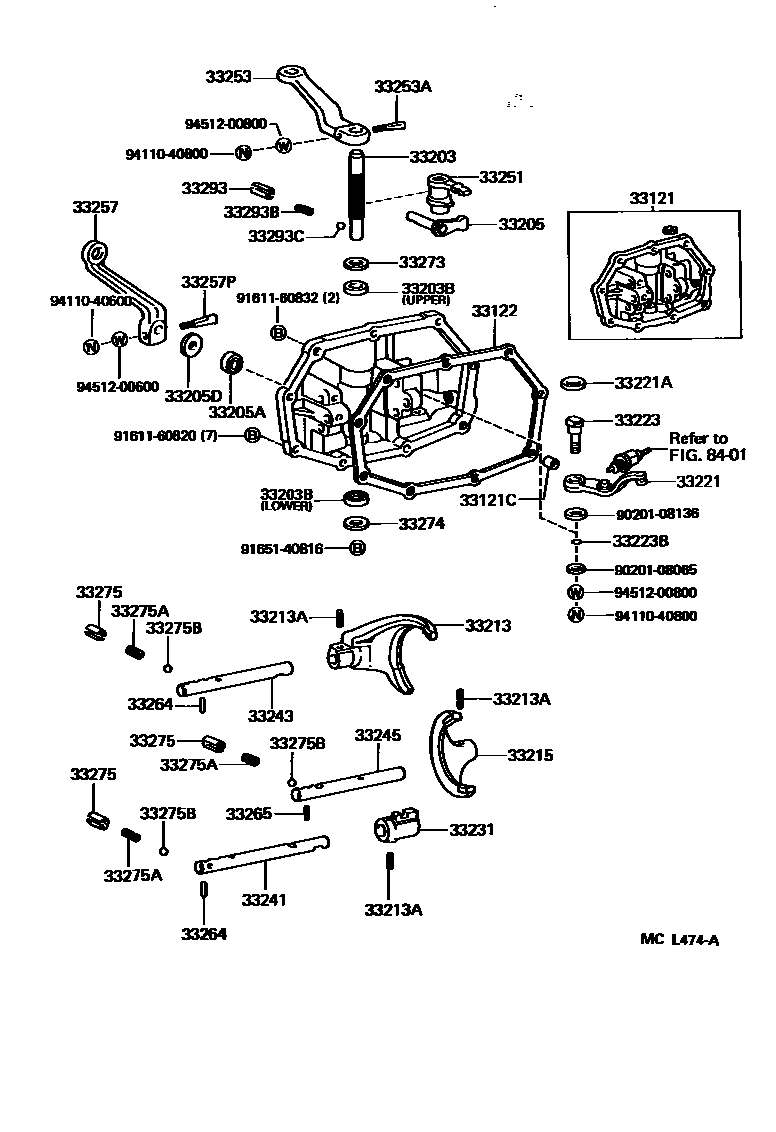

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1 0003 1

33121COVER, MANUAL TRANSMISSION CASE

main33102-35040iKM5#,YM55..4H198610-199008

33121CPIN(FOR TRANSMISSION CASE COVER)

main90253-11001×2iKM5#,YM55..4H198610-199008

33122GASKET, MANUAL TRANSMISSION CASE COVER

main33122-30020iKM5#,YM55..4H198610-199008

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33261-26021iKM5#,YM55..4H198610-199008

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90311-13050iKM5#,YM55..4H198610-199008

LOWER

main90311-18002iYM60;CM5#,6#,KM51,YM55,65..5F,5H198610-199310

main90312-15003iKM5#,YM55..4H198610-199008

UPPER

33205SHAFT SUB-ASSY, SELECT LEVER

main33262-28010iKM5#,YM55..4H198610-199008

main33262-28020iCM5#,6#,KM51,YM55,6#..MTM199611

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90313-13001iCM5#,6#,KM51,YM55,6#..MTM199611

33205DWASHER(FOR OUTER LEVER OIL SETTING)

main90201-13029iCM65..TS;CM5#,60,61,KM51,YM55,6#..MTM199508-199611

main94612-11300iCM5#,6#,KM5#,YM55,6#..MTM198610-199310

33213FORK, 1ST & 2ND SHIFT

main33212-26020iKM5#,YM55..4H198711-199008

main33212-26030iKM51..5F198610-198711

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001×3iKM5#,YM55..4H198711-199008

33215FORK, 3RD & 4TH SHIFT

main33213-26020iKM5#,YM55..4H198610-199008

main33213-28011iYM60;CM5#,6#,KM51,YM55,65..5F,5H198610-199209

sub33364-26020

main33220-26010iCM5#,6#,KM51,YM55,6#..MTM199209-199310

33221ARM, REVERSE SHIFT

main33221-28010iCM5#,6#,KM51,YM55,6#..MTM199611-199906

main33221-30010iKM5#,YM55..4H198610-199008

33221APLUG, TIGHT(FOR REVERSE SHIFT ARM)

main96411-42500iKM5#,YM55..4H198610-198711

33223PIVOT, SHIFT ARM

main33223-30011iKM5#,YM55..4H198610-199008

33223BRING, O(FOR SHIFT ARM PIVOT)

main90301-08001iKM5#,YM55..4H198610-199008

33231HEAD, REVERSE SHIFT

main33231-26010iKM5#,YM55..4H198610-199008

main33231-26020iYM60..DX198610-199008

main33231-28010iCM5#,6#,KM51,YM55,6#..5F,5H198610-199210

sub33364-26020

main33231-28020iCM5#,6#,KM51,YM55,6#..MTM199210-199310

33241SHAFT, REVERSE SHIFT FORK

main33241-26010iKM5#,YM55..4H198610-199008

main33244-26010iYM60..DX198610-198805

main33244-26011iYM60..DX198805-199008

main33244-28010iCM50,55,6#,KM51,YM60..5F,5H198610-198805

main33244-28011iCM65..TS;CM5#,60,61,KM51,YM55,6#..MTM199310-199611

33243SHAFT, 1ST & 2ND SHIFT FORK

main33242-26010iKM5#,YM55..4H198610-199008

main33242-26020iYM60;CM5#,6#,KM51,YM55,65..5F,5H198610-199310

33245SHAFT, 3RD & 4TH SHIFT FORK

main33243-26010iKM5#,YM55..4H198610-199008

main33243-35050iYM60;CM50,55,6#,KM51..5F,5H198610-198805

main33243-35051iCM5#,6#,KM51,YM55,6#..MTM199611-199906

33251LEVER, SHIFT & SELECT

main33251-26010iKM5#,YM55..4H198610-199008

main33251-26040iYM60..DX198610-199008

main33251-28011iCM5#,6#,KM51,YM55,6#..5F,5H198610-199103

main33251-28012iCM5#,6#,KM51,YM55,6#..MTM199103-199210

main33251-28030iCM65..TS;CM5#,60,61,KM51,YM55,6#..MTM199310-199611

33253LEVER, SHIFT OUTER, NO.1

main33253-27050iKM51..5F198610-198711

main33253-27081iCM5#,6#,KM51,YM55,6#..5H199611

main33253-28030iKM5#,YM55..4H198610-199008

33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)

main33281-16020iCM5#,6#,KM5#,YM55,6#..MTM198610-199310

33257LEVER, SELECT OUTER

main33257-27020iKM5#,YM55..4H198610-199008

main33257-27060iKM51,YM60..5F198610

main33257-27110iYM60..DX;CM5#,6#,KM51,YM55,65..5H198610-199310

33257PPIN, SELECT OUTER LEVER LOCK

main33282-35010iKM5#,YM55..4H198610-199008

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main33264-30010×2iKM5#,YM55..4H198610-199008

main90360-10003iCM65..TS;CM5#,60,61,KM51,YM55,6#..MTM199310-199611

main90361-10002iCM50,55,6#,YM60..MTM198610-198711

main90361-10003iCM5#,6#,KM51,YM55,6#..MTM199611-199906

33265PIN, SHIFT INTERLOCK, NO.2

main33265-30010iKM5#,YM55..4H198610-199008

main90250-05020×2iYM60;CM50,55,6#,KM51..5F,5H198610-198711

33273WASHER, SHIFT LEVER SHAFT HOUSING, NO.1

main90201-15137iYM55198610-199008

33274WASHER, SHIFT LEVER SHAFT HOUSING, NO.2

main94612-11300iKM5#,YM55..4H198610-199008

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main33275-10010×3iKM5#,YM55..4H198610-199008

main90341-12008×4iCM5#,6#,KM51..MTM199611-199806

main90341-12014×4iKM51..MTM199008-199806

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-13004iKM51,YM60..5F198610-198904

main90501-14061iCM50,55,6#..5H198610-198904

main90501-14062×3iYM60;CM5#,6#,KM51..5F,5H198610-198912

main90501-14123iCM65..TS;CM5#,60,61,KM51,YM55,6#..MTM199310-199611

main90501-14132×3iCM5#,6#,KM51,YM55,6#..MTM199611-199906

main90501-14638×3iKM5#,YM55..4H198610-199008

33275BBALL, SHAFT DETENT

main90360-10003×3iKM5#,YM55,60..4H198610-199008

33293HOLDER, REVERSE RESTRICT BALL

main33276-10010iKM5#,YM55..4H198610-199008

33293BSPRING, COMPRESSION (FOR REVERSE RESTRICT BALL)

main90501-16052iKM5#,YM55..4H198610-199008

33293CBALL (FOR REVERSE RESTRICT)

main90360-10003iKM5#,YM55..4H198610-199008

8401

9020108065

main90201-08065

9020108136

main90201-08136

9161160820

main91611-60820

9161160832

main91611-60832

9165140816

main91651-40816

9411040600

main94110-40600

9411040800

main94110-40800

9451200600

main94512-00600

9451200800

main94512-00800

44 parts on this diagram · 3 diagrams in section
