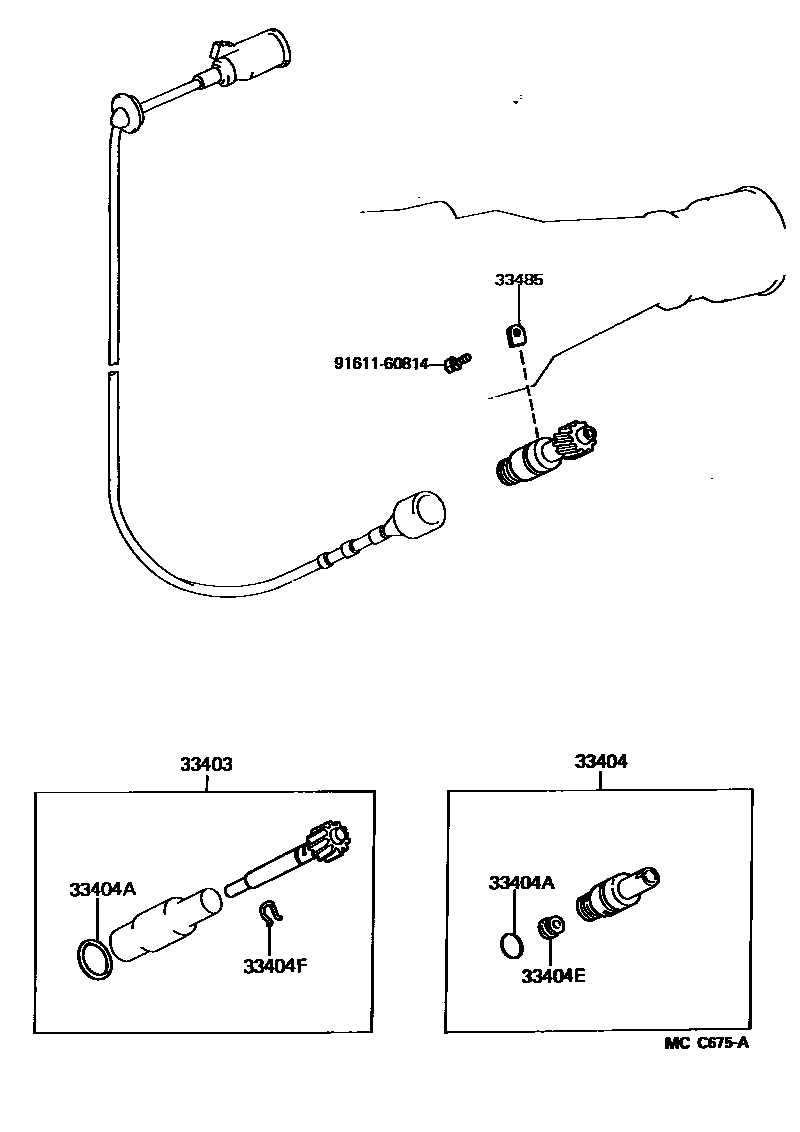

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33482-29035iCM51..5H198910-199906

main33482-29045iCM50,55,YM55..MTM198610-198711

main33482-29095iCM6#,YM6#199611-199906

main33482-39095iKM50..T1198610-199008

main33482-39105iKM50..SJL198711-199008

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-35010iCM65..TS;CM5#,60,61,KM51,YM55,6#..MTM199310-199611

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iCM5#,6#,KM5#,YM55,6#..MTM198610-199310

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iCM65..TS;CM5#,60,61,KM51,YM55,6#..MTM199310-199611

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iCM5#,6#,KM5#,YM55,6#..MTM198610-199310

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iCM65..TS;CM5#,60,61,KM51,YM55,6#..MTM199310-199611

9161160814

main91611-60814

7 parts on this diagram · 1 diagram in section
