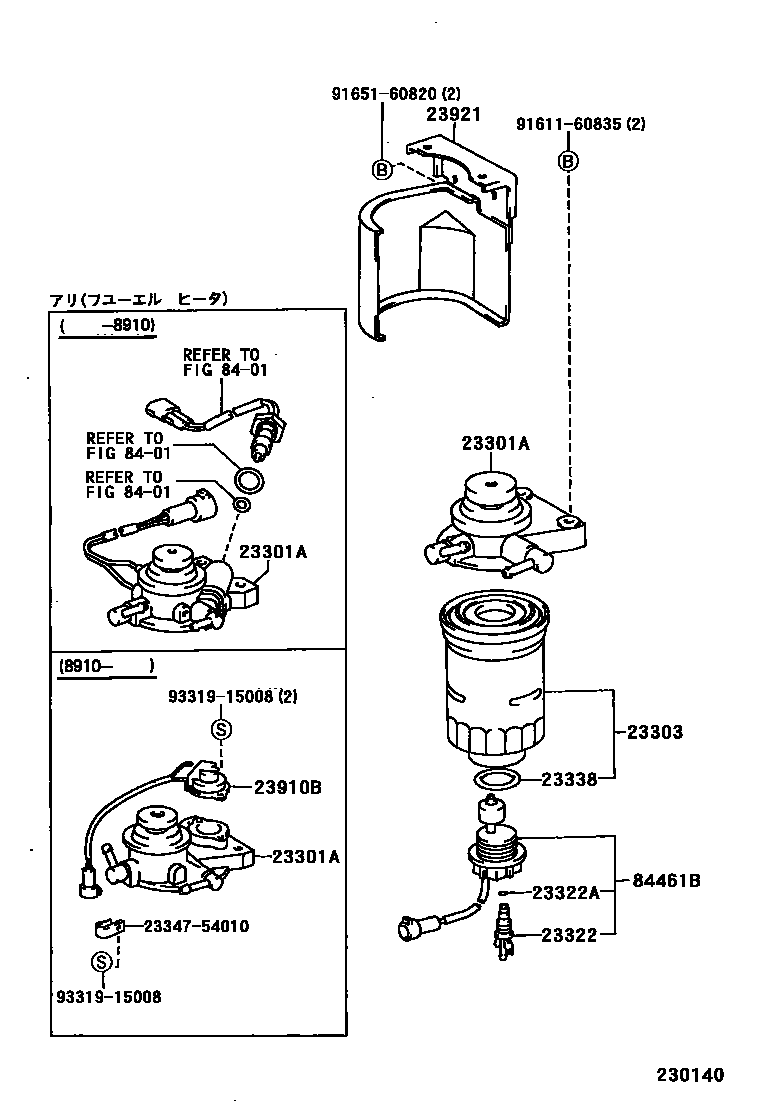

FUEL FILTER

0001 1 0002 1

23301ACAP ASSY, FUEL FILTER

main23301-64170i1C,2C..CM5#,6#198610-198910

main23301-64180i1C,2C..CM5#,6#198610-198806

main23301-64270i1C,2C..CM5#,6#198806-198910

main23301-64280i2C..CM5#,6#198910-199611

main23301-64290i2C..CM5#,6#198910-199611

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i1C,2C..CM5#,6#198610-199611

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010i1C,2C..CM5#,6#198610-199611

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1C,2C..CM5#,6#198610-199611

23338GASKET(FOR WARNING SWITCH)

main23344-64010i2C..CM5#,6#198610-199611

23910BHEATER ASSY, FUEL

main23910-64010i2C..CM5#,6#198910-199611

23921SUPPORT, FUEL FILTER

main23921-64120i2C..CM5#,6#198610-199903

sub23921-64121

main23921-64121i2C..CM5#,6#199903

main90929-01041i2Y..YM55,6#198610-199302

8401

84461BSWITCH, LEVEL WARNING

main84461-35030iCM5#,6#198610-199611

2334754010CLIP, CORD

main23347-54010

9161160835

main91611-60835

9165160820

main91651-60820

9331915008

main93319-15008

13 parts on this diagram · 2 diagrams in section
