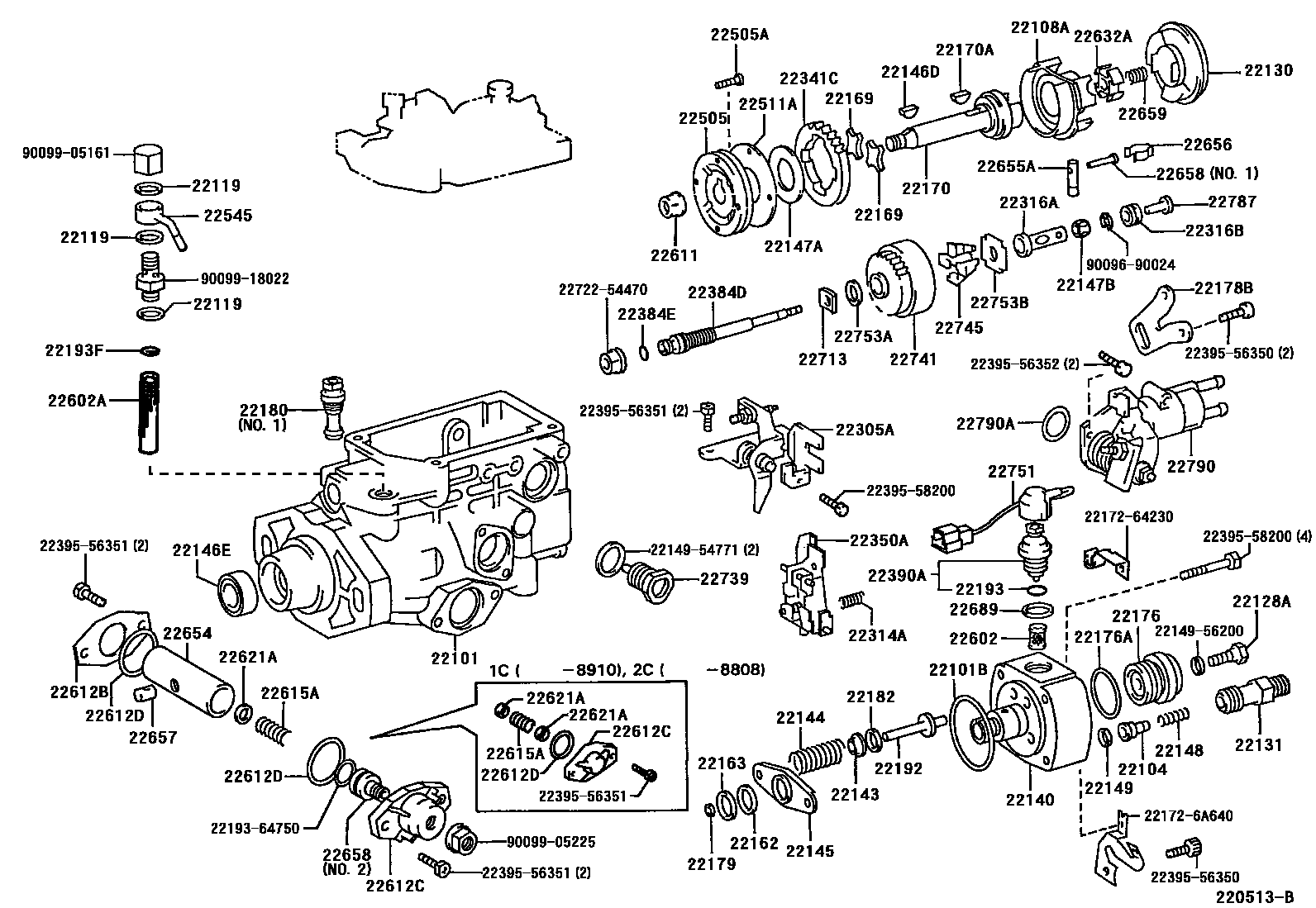

INJECTION PUMP BODY

0001 1 0002 1

22101HOUSING SUB-ASSY, INJECTION PUMP

main22101-64010i2C..CM51,55..4HC198610

main22101-64020i2C..CM51,55..4HC199508

*98

main22101-64270i2C..CM65..TS;2C..CM5#,60,61..5H199310-199611

22101BRING, O(FOR INJECTION PUMP HOUSING)

main90099-14053i2C..CM5#,6#199611

22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY

main22104-64010×4i1C,2C..CM5#,6#198610-198808

main22104-6A290×4i2C..CM5#,6#199611

22108ARING SUB-ASSY, ROLLER

main22108-54180i2C..CM5#,6#199611

22119WASHER, AIR BLEEDER NIPPLE

main90201-12109×6i2C..CM65..IV199611

22128ABOLT, DISTRIBUTIVE HEAD

main22128-54010i1C,2C..CM5#,6#198610-199310

22130CAMPLATE SUB-ASSY, FACE

main22130-64010i1C,2C..CM5#,6#198610-198808

main22130-6A510i2C..CM51,52,55,6#198808-199201

main22130-6A770i2C..CM5#,6#199611

main22130-6D340i2C..CM5#,6#199202-199310

22131HOLDER, DELIVERY VALVE

main22190-18040×4i2C..CM6#198912-199005

main22190-64740×4i1C,2C..CM50,6#198808-198912

main22190-6A680×4i2C..CM5#,6#199611

22140HEAD SUB-ASSY, DISTRIBUTIVE PUMP

main22140-64400i1C,2C..CM5#,6#198610-198808

main22140-6A511i2C..CM51,52,55,6#198808-199310

main22140-6D500i2C..CM65..TS;2C..CM5#,60,61199310-199611

22143SEAT, SPRING UPPER

main22143-54010×2i1C,2C..CM5#,6#198610-199310

22144SPRING, PUMP PLUNGER

main22144-54180×2i1C,2C..CM5#,6#198610-198808

main22144-54190×2i2C..CM51,52,55,6#198808-199310

22145SEAT, SPRING, LOWER

main22145-54010i1C,2C..CM5#,6#198610-199310

22146DKEY(FOR DRIVE GEAR)

main90099-13018i1C,2C..CM5#,6#198610-199310

22146ESEAL(FOR DRIVE SHAFT)

main22544-64740i1C,2C..CM5#,6#198610-199310

22147AWASHER, DRIVE SHAFT

main22161-54010i1C,2C..CM5#,6#198610-199310

22147BRING, GOVERNOR SLEEVE

main22147-54290i1C,2C..CM5#,6#198610-199310

22148SPRING, DELIVERY VALVE

main22148-54010×4i1C,2C..CM5#,6#198610-199310

22149GASKET, DELIVERY VALVE

main22149-54010×4i1C,2C..CM5#198610-198808

main22149-56351×4i2C..CM51,55198808-199005

22162PLATE, PLUNGER UPPER

main22162-54010i1C,2C..CM5#,6#198610-199310

22163PLATE, PLUNGER LOWER

main22163-54010i1C,2C..CM5#,6#198610-199310

22169JOINT, RUBBER

main22169-54180×2i1C,2C..CM5#,6#198610-199310

22170SHAFT SUB-ASSY, DRIVE

main22170-54180i1C,2C..CM5#,6#198610-198808

main22170-6A510i2C..CM51,52,55,6#198808-199310

22170AKEY(FOR DRIVE SHAFT)

main90099-13017i1C,2C..CM5#,6#198610-199310

22176PLUG, DISTRIBUTIVE HEAD

main22176-54020i1C,2C..CM5#,6#198610-199310

22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)

main22193-54772i2C..CM65..TS;2C..CM5#,60,61199608-199611

main90099-14052i2C..CM65..IV199705

22178BBRACKET(FOR INJECTION PUMP ASSY)

main22178-64010i2C..CM51..IV;2C..CM55..4HC..IV199611

main22178-6D400i2C..CM55..IV;2C..CM51..JL..5H..IV199206-199310

22179SHIM, PLUNGER ADJUSTING

main22179-54010i2C..CM65..TS;2C..CM5#,60,61199310-199611

main22179-54011i2C..CM5#,6#199611

main22179-54012i2C..CM65..TS;2C..CM5#,60,61199310-199611

main22179-54013i2C..CM5#,6#199611

main22179-54014i1C,2C..CM5#,6#198610-199310

main22179-54015i1C,2C..CM5#,6#198610-198711

main22179-54016i2C..CM5#,6#199611

main22179-54017i1C,2C..CM5#,6#198610-199310

main22179-54018i2C..CM65..TS;2C..CM5#,60,61199310-199611

main22179-54019i2C..CM65..TS;2C..CM5#,60,61199310-199611

main22179-54020i2C..CM65..TS;2C..CM5#,60,61199310-199611

22180VALVE SUB-ASSY, REGULATOR

main22180-54010i2C..CM55,65..5H..IV199611

main22180-64850i2C..CM6#198610-198808

main22180-64851i2C..CM6#199611

22182PLATE, TAPPET ADJUSTING SHIM

main22182-54010×2i1C,2C..CM5#,6#198610-198711

main22183-54010×2i1C,2C..CM5#,6#198610-198711

main22184-54010×2i1C,2C..CM5#,6#198610-198711

main22185-54010×2i1C,2C..CM5#,6#198610-199310

main22186-54010×2i1C,2C..CM5#,6#198610-199310

main22187-54010×2i2C..CM65..TS;2C..CM5#,60,61199310-199611

main22188-54010×2i1C,2C..CM5#,6#198610-199310

22192GUIDE SUB-ASSY, PLUNGER SPRING

main22192-54010×2i2C..CM65..TS;2C..CM5#,60,61199310-199611

22193RING, O(FOR LEVER CONNECTING PIN)

main22193-64010i2C..CM65..TS;2C..CM5#,60,61199310-199611

22193FRING, O(FOR FUEL INJECTION PUMP FILTER)

main22193-5B320i2C..CM5#,6#199611

22305AIDLE-UP SUB-ASSY

main22305-6A041i1C,2C..CM5#,6#198610-198712

main22305-6A490i1C,2C..CM5#,6#198801-199310

22314ASPRING, LEVER SUPPORT

main22314-54010×2i2C..CM5#,6#199611

22316ASLEEVE, GOVERNOR

main22316-54351i1C..CM50198705-198910

main22316-54360i2C..CM5#..5H199207-199310

sub22316-6D050

main22316-55240i2C..CM51..JL..5H..IV199505

main22316-6A680i2C..CM55..IV;2C..CM51..JL..5H..IV199207-199310

main22316-6D500i2C..CM5#..5H199505

main22316-6D840i2C..CM51,55..4HC199508

22316BBEARING, BALL(FOR GOVERNOR SLEEVE)

main90099-10148i2C..CM5#,6#199611

22341CGEAR, GOVERNOR DRIVE

main22341-54010i2C..CM5#,6#199611

22350AGOVERNOR ASSY, TORQUE CONTROL

main22350-64010i2C..CM51,55..4HC198610-199310

main22350-64020i1C,2C..CM5#..5H198610-199310

main22350-64850i2C..CM6#198610-199310

main22350-6D500i2C..CM5#..5H199310

main22350-6D510i2C..CM60,61;2C..CM65..TS199310-199611

main22350-6D520i2C..CM51,55..4HC199310

22384DSHAFT, GOVERNOR

main22380-54020i1C,2C..CM5#,6#198610-199310

22384ERING, O(FOR GOVERNOR MAIN SHAFT)

main90099-14049i2C..CM65..TS;2C..CM5#,60,61199310-199611

22390ASOLENOID ASSY, FUEL CUT

main22019-6A510i2C..CM51,52,55,6#198808-199310

sub22019-6A511

main22390-54110i1C,2C..CM5#,6#198610-198808

main22390-6A511i2C..CM5#,6#199703

22505PUMP SUB-ASSY, FUEL FEED

main22505-54010i1C,2C..CM5#,6#198610-199310

22505ASCREW(FOR FUEL FEED PUMP)

main90099-00723×2i2C..CM5#,6#199611

22511ACOVER, FEED PUMP

main22511-54020i1C,2C..CM5#,6#198610-199310

22545NIPPLE, SWIVEL(FOR INJECTION PUMP INLET)

main22548-6A040i2C..CM5#,6#199611

main22548-6D400i2C..CM55..IV;2C..CM55..4HC;2C..CM51..JL..IV199310-199404

main22548-6D880i2C..CM51,55..4HC..IV199611

22602FILTER SUB-ASSY, FUEL INJECTION PUMP

main22602-56350i2C..CM51,52,55,6#198808-199310

22602AFILTER SUB-ASSY, FUEL INJECTION PUMP, NO.2

main22602-5B320i2C..CM65..TS;2C..CM5#,60,61199609-199611

22611NUT, TIMER ROUND

main90099-05166i2C..CM5#,6#199611

22612BCOVER, TIMER

main22612-54010i2C..CM6#;2C..CM51,55..4HC199201-199310

main22612-56350i2C..CM65..TS;2C..CM5#,60,61199310-199611

22612CCOVER, TIMER

main22612-17010i2C..CM65..TS;2C..CM5#,60,61199310-199611

main22612-54020i1C,2C..CM5#,6#198610-198808

main22612-54450i2C..CM51,55,6#..5H198808-199110

22612DRING, O(FOR TIMER COVER)

main22193-17840×2i2C..CM51,55..4HC..IV199611

*98

main90099-14051×2i2C..CM65..TS;2C..CM5#,60,61199310-199311

main90099-14105×2i2C..CM51..5H..IV199510

22615ASPRING, TIMER OUTER

main22615-54490i2C..CM51,52,55,6#198808-199310

main22615-64010i1C..CM50198808-198910

main22615-6D150i2C..CM5#,6#199611

22621AWASHER, TIMER ADJUSTING

main22625-54271×2i1C..CM50198808-198910

main22625-54272×2i1C,2C..CM5#,6#198610-198808

main22625-54277×2i1C..CM50198808-198910

22632ACOUPLING, INJECTION PUMP

main22632-54010i1C,2C..CM5#,6#198610-199310

22654PISTON, TIMER

main22654-55050i2C..CM51,52,55,6#198808-199310

main22654-55130i2C..CM65..TS;2C..CM5#,60,61199310-199611

main22654-64740i1C..CM50198808-198910

22655APIN, TIMER SLIDE

main22655-54010i1C,2C..CM5#,6#198610-199310

22656CLIP, TIMER

main22656-17840i2C..CM5#,6#..5H199611

main22656-54010i2C..CM51..5H..IV199510

22657CLIP, TIMER

main22657-54010i2C..CM65..TS;2C..CM5#,60,61199310-199611

22658STOPPER, TIMER

main22658-17010i2C..CM65..TS;2C..CM5#,60,61199310-199611

main22658-17840i2C..CM65..TS;2C..CM5#,60,61..5H199510-199611

main22658-54010i2C..CM55..4HC;2C..CM51..4HC..IV199510-199611

main22658-54450i2C..CM51,55,6#..5H198808-199110

22659SPRING, COUPLING

main22659-64150i2C..CM5#,6#199611

22689WASHER(FOR SWIVEL NIPPLE)

main22689-56350i2C..CM51..SJL..IV199206-199310

22713WASHER, GOVERNOR GEAR ADJUSTING

main22713-54010i1C,2C..CM5#,6#198610-198711

main22714-54010i2C..CM5#,6#199611

main22715-54010i2C..CM65..TS;2C..CM5#,60,61199310-199611

main22716-54010i2C..CM5#,6#199611

main22717-54010i1C,2C..CM5#,6#198610-199310

22739BOLT, GOVERNOR LINK SUPPORT

main22739-54020×2i1C,2C..CM5#,6#198610-199310

22741HOLDER SUB-ASSY, FLYWEIGHT

main22741-54020i2C..CM65..TS;2C..CM5#,60,61199310-199611

22745FLYWEIGHT, DISTRIBUTIVE PUMP

main22745-54010×4i2C..CM5#,6#199611

22751WIRE SUB-ASSY, FUEL CUT SOLENOID

main22751-54311i2C..CM65..TS;2C..CM5#,60,61199310-199611

main22751-6A061i1C,2C..CM5#,6#198610-198808

main22751-6A220i2C..CM51,55..4HC199508

*98

22753AWASHER, FLYWEIGHT, NO.1

main22753-54010i2C..CM65..TS;2C..CM5#,60,61199310-199611

22753BWASHER, FLYWEIGHT, NO.2

main22753-54020i2C..CM5#,6#199611

main22753-54290i2C..CM51..SJL..IV199210-199310

22787PLUG, GOVERNOR SLEEVE

main22787-54026i2C..CM5#;2C..CM65..IV199611

main22787-54027i2C..CM5#,6#199611

main22787-54028i2C..CM5#199310-199611

main22787-54029i2C..CM51,52,55,6#198808-199310

main22787-54030i2C..CM51,52,55,6#198808-199310

main22787-54031i2C..CM51,52,55,6#198808-199310

main22787-54032i2C..CM5#199310-199611

main22787-54033i2C..CM5#199310-199611

main22787-64640i2C..CM5#;2C..CM65..IV199611

main22787-64641i2C..CM65..TS;2C..CM5#,60,61199310-199611

main22787-64642i1C,2C..CM5#,6#198610-199310

main22787-64643i1C,2C..CM5#,6#198610-199310

main22787-64660i1C,2C..CM5#,6#198610-198808

main22787-64661i2C..CM6#199611

main22787-64662i1C,2C..CM5#,6#198610-198808

main22787-64663i1C,2C..CM5#,6#198610-198808

main22787-64664i1C..CM50198808-198910

main22787-64665i1C..CM50198808-198910

main22787-64666i1C,2C..CM5#,6#198610-198808

main22787-64667i1C..CM50198808-198910

main22787-64680i2C..CM5#;2C..CM65..IV199611

22790COVER SUB-ASSY, TIMER

main22790-6A060i1C,2C..CM5#,6#..5H198610-199310

main22790-6A070i2C..CM51,55..4HC198610-199310

main22790-6D500i2C..CM65..TS;2C..CM5#,60,61..5H199310-199611

main22790-6D520i2C..CM51,55..4HC199310

22790ARING, O(FOR TIMER COVER)

main22193-17840i2C..CM55..4HC;2C..CM51..4HC..IV199510-199611

*98

main90099-14051i2C..CM65..TS;2C..CM5#,60,61199310-199311

main90099-14105i2C..CM51..5H..IV199510

2214954771GASKET, DELIVERY VALVE

main22149-54771

2214956200GASKET, DELIVERY VALVE

main22149-56200

2217264230CLIP, CONNECTOR SUPPORT, SOLENOID

main22172-64230

221726A640CLIP, CONNECTOR SUPPORT, SOLENOID

main22172-6A640

2219364750RING, O(FOR LEVER CONNECTING PIN)

main22193-64750

2239556350BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-56350

2239556351BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-56351

2239556352BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-56352

2239558200BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-58200

2272254470NUT, GOVERNOR SHAFT ROCK

main22722-54470

9009690024

main90096-90024

9009905161

main90099-05161

9009905225

main90099-05225

9009918022

main90099-18022

85 parts on this diagram · 2 diagrams in section
