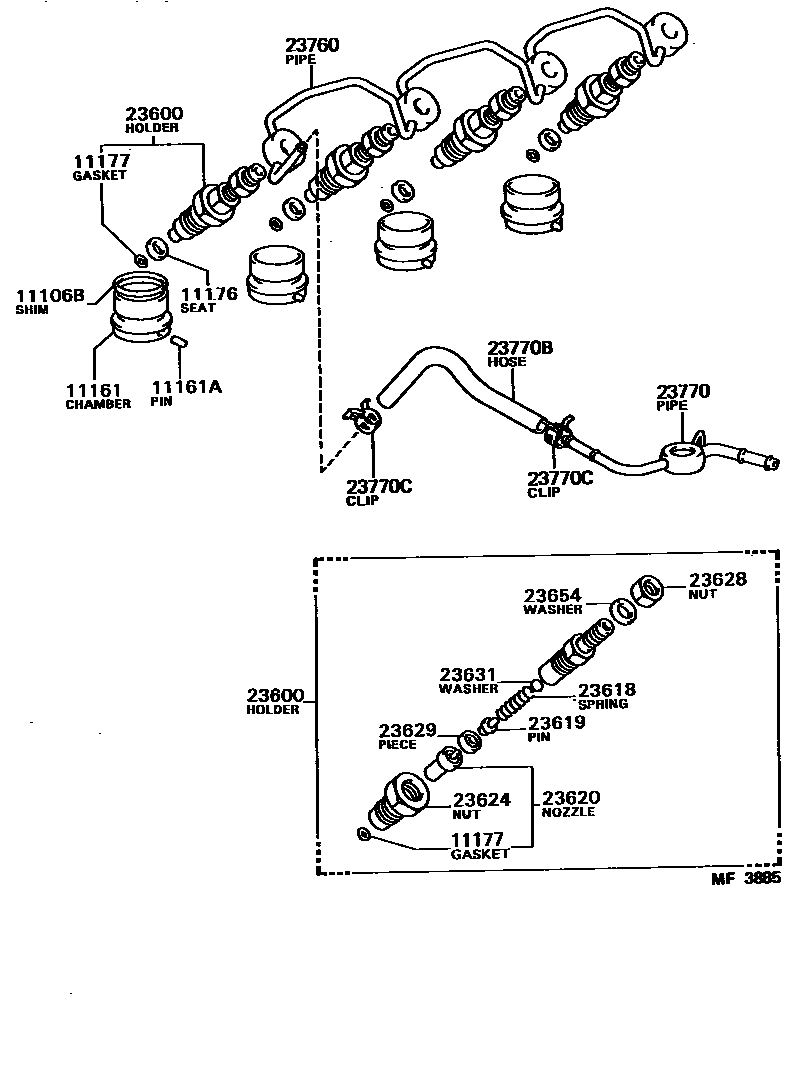

INJECTION NOZZLE

11106BSHIM(FOR COMBUSTION CHAMBER)

main11165-64010i2C..CM65..TS;2C..CM5#,60,61198610-199601

sub11165-64011

main11165-64011i2C..CM5#,6#199601-199611

main11166-64010i2C..CM65..TS;2C..CM5#,60,61198610-199601

sub11166-64011

main11166-64011i2C..CM65..TS;2C..CM5#,60,61199601-199611

11161CHAMBER, COMBUSTION

main11161-64040i1C..CM50198610-198910

main11161-64060i2C..CM51,55,6#198610-198711

sub11161-64080

main11161-64080i2C..CM51,52,55,6#198711-199611

11161APIN, STRAIGHT(FOR COMBUSTION CHAMBER)

main90250-02046i1C,2C..CM5#,6#198610-199611

11176SEAT, INJECTION NOZZLE

main11176-64010i1C,2C..CM5#,6#198610-199708

main11176-64020i2C..CM5#,6#199708

11177GASKET, INJECTION NOZZLE SEAT

main11177-64010i1C,2C..CM5#,6#198610-199611

23600HOLDER & NOZZLE SET, NOZZLE

main23600-69045i1C,2C..CM5#,6#198610-198910

main23600-69055i2C..CM51,52,55,6#198808-199310

main23600-69065i2C..CM65..TS;2C..CM5#,60,61199310-199611

23618SPRING, NOZZLE HOLDER PRESSURE

main23618-54080i2C..CM5#,6#199310-199611

main23618-64010i1C,2C..CM5#,6#198610-199310

main23618-64020i1C,2C..CM5#,6#198705-198711

23619PIN, NOZZLE HOLDER PRESSURE

main23619-64010i1C,2C..CM5#,6#198610-199611

23620NOZZLE ASSY

main23620-69035i1C,2C..CM5#,6#198610-198910

main23620-69045i2C..CM51,52,55,6#198808-199611

23624NUT, NOZZLE RETAINING

main23624-64040i1C,2C..CM5#,6#198610-199310

sub23624-64041

main23624-64041i2C..CM65..TS;2C..CM5#,60,61199310-199611

23628NUT(FOR RING PACKING SETTING)

main23628-64010i2C..CM5#,6#198610-199611

23629PIECE, DISTANCE(FOR NOZZLE)

main23629-64010i1C,2C..CM5#,6#198610-199611

23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)

main23631-64010i1C,2C..CM5#,6#198610-199611

main23631-64011i1C,2C..CM5#,6#198610-199611

main23631-64012i2C..CM65..TS;2C..CM5#,60,61198610-199611

main23631-64013i1C,2C..CM5#,6#198610-199611

main23631-64014i1C,2C..CM5#,6#198610-199611

main23631-64015i1C,2C..CM5#,6#198610-199611

main23631-64016i2C..CM65..TS;2C..CM5#,60,61198610-199611

main23631-64017i2C..CM5#,6#198610-199611

main23631-64018i1C,2C..CM5#,6#198610-199611

main23631-64019i2C..CM65..TS;2C..CM5#,60,61198610-199611

main23632-64010i2C..CM65..TS;2C..CM5#,60,61198610-199611

main23632-64011i1C,2C..CM5#,6#198610-199611

main23632-64012i1C,2C..CM5#,6#198610-199611

main23632-64013i1C,2C..CM5#,6#198610-199611

main23632-64014i2C..CM5#,6#198610-199611

main23632-64015i1C,2C..CM5#,6#198610-199611

main23632-64016i1C,2C..CM5#,6#198610-199611

main23632-64017i1C,2C..CM5#,6#198610-199611

main23632-64018i1C,2C..CM5#,6#198610-199611

main23632-64019i2C..CM5#,6#198610-199611

main23633-64010i1C,2C..CM5#,6#198610-199611

main23633-64011i2C..CM65..TS;2C..CM5#,60,61198610-199611

main23633-64012i1C,2C..CM5#,6#198610-199611

main23633-64013i1C,2C..CM5#,6#198610-199611

main23633-64014i2C..CM65..TS;2C..CM5#,60,61198610-199611

main23633-64015i1C,2C..CM5#,6#198610-199611

main23633-64016i1C,2C..CM5#,6#198610-199611

main23633-64017i1C,2C..CM5#,6#198610-199611

main23633-64018i2C..CM65..TS;2C..CM5#,60,61198610-199611

main23633-64019i1C,2C..CM5#,6#198610-199611

main23634-64010i1C,2C..CM5#,6#198610-199611

main23634-64011i2C..CM5#,6#198610-199611

main23634-64012i2C..CM65..TS;2C..CM5#,60,61198610-199611

main23634-64013i1C,2C..CM5#,6#198610-199611

main23634-64014i1C,2C..CM5#,6#198610-199611

main23634-64015i2C..CM5#,6#198610-199611

main23634-64016i2C..CM5#,6#198610-199611

main23634-64017i2C..CM5#,6#198610-199611

main23634-64018i2C..CM65..TS;2C..CM5#,60,61198610-199611

main23634-64019i2C..CM5#,6#198610-199611

main23635-64010i1C,2C..CM5#,6#198610-199611

main23635-64011i2C..CM65..TS;2C..CM5#,60,61198610-199611

main23635-64012i2C..CM5#,6#198610-199611

23654WASHER(FOR RING PACKING)

main23654-64010i1C,2C..CM5#,6#198610-199611

23760PIPE ASSY, NOZZLE LEAKAGE

main23761-64020i1C,2C..CM5#,6#198610-199310

main23761-64050i2C..CM65..TS;2C..CM5#,60,61199310-199812

main23761-64090i2C..CM5#,6#199812

23770PIPE ASSY, NOZZLE LEAKAGE, NO.2

main23764-64021i2C..CM65..TS;2C..CM5#,60,61198808-199408

sub23764-64022

main23764-64022i2C..CM65..TS;2C..CM5#,60,61199408-199611

main23764-64070i2C..CM65..IV198912-199310

main23764-64070i1C..CM50198610-198910

23770BHOSE, FUEL

main95333-04010i1C,2C..CM5#,6#198610-199812

main95333-04020i2C..CM5#,6#199812

23770CCLAMP OR CLIP(FOR FUEL HOSE SET)

main90467-10049i1C,2C..CM5#,6#198711-199611

sub90467-10149

main96132-30400i1C,2C..CM5#,6#198610-198711

sub96132-51000

18 parts on this diagram · 1 diagram in section
