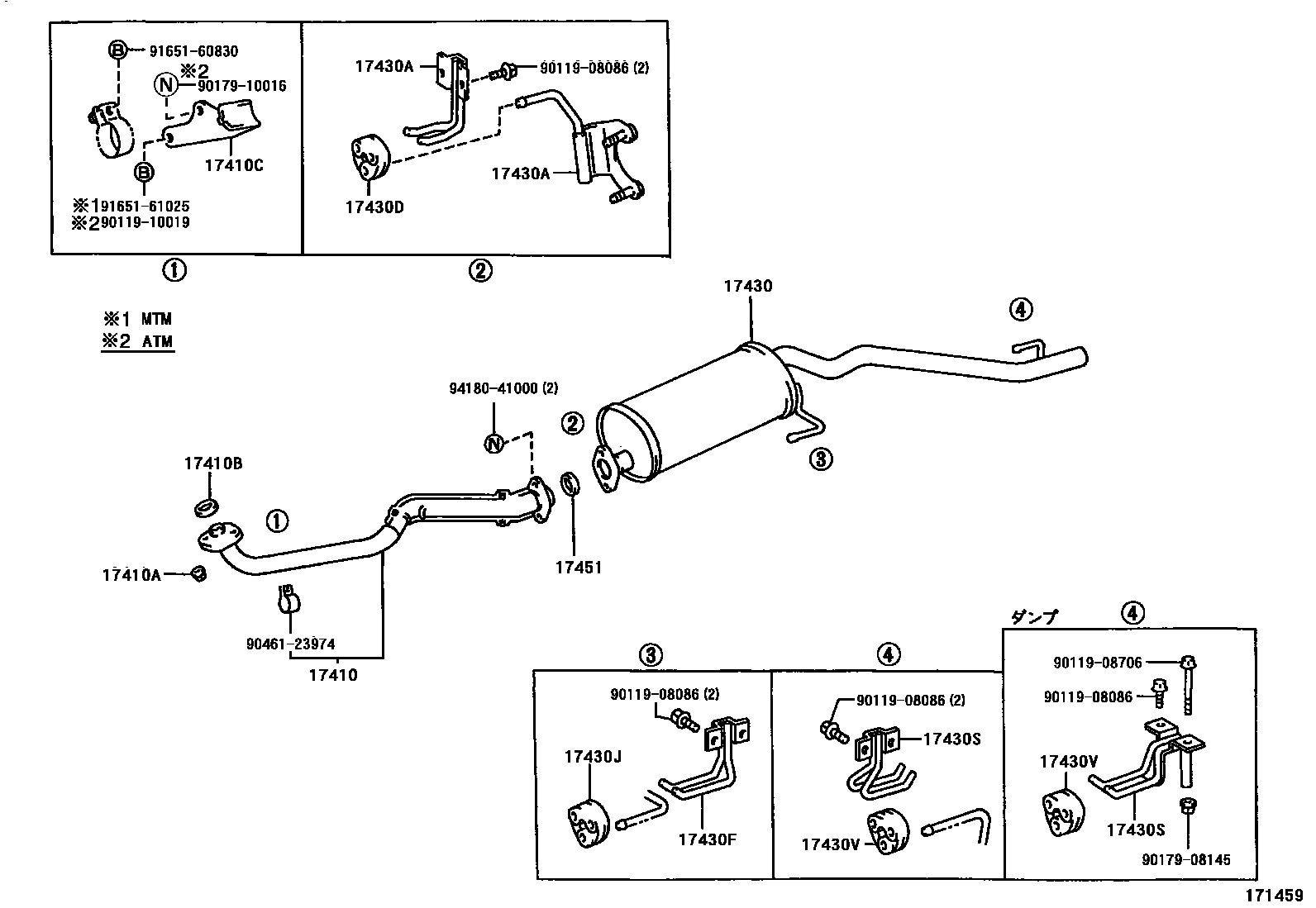

EXHAUST PIPE

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1

17410PIPE ASSY, EXHAUST, FRONT

main17401-13100i4K,5K..KM5#..JL,T1198610-199008

main17401-13120i5K..KM51..JL,T1199008

sub17410-13390

main17401-64110i1C..CM50..JL198610-198910

sub17410-64210

main17401-72080i2Y..YM6#198610

main17410-13330i4K,5K..KM5#..SJL198610-199008

main17410-13390i5K..KM51..SJL..MTM199008-199811

main17410-13670i5K..KM51..ATM199811

main17410-64210i2C..CM55..4HC198610

main17410-64230i2C..CM51,55..(SJL,SJLC)..5H198610

sub17410-64210

main17410-64240i2C..CM51..4HC198610

sub17410-64210

main17410-64250i2C..CM6#198610-199110

sub17410-64251

main17410-64251i2C..CM60,65199110-199611

main17410-64260i1C..CM50..SJL198610-198910

sub17410-64210

main17410-64410i2C..CM51..JL..5H198910

sub17410-64210

main17410-64560i2C..CM52,61199110

main17410-72130i2Y..YM55..MTM198610

main17410-72210i2Y..YM55..4HC199410

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i2C..CM5#,6#198610-199611

17410BGASKET, EXHAUST PIPE

main90917-06001i2Y..YM55,6#198610-199103

sub90917-06038

main90917-06004i2C..CM5#,6#198610-199103

sub90917-06039

main90917-06006i5K..KM51199008-199103

sub90917-06037

main90917-06037i5K..KM51199103-199210

main90917-06038i2Y..YM55,6#199103-199209

main90917-06039i2C..CM5#,6#199103-199209

main90917-06061i2C..CM5#,6#199210-199611

main90917-06064i2Y..YM55,6#199210

main90917-06069i5K..KM51199210

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-13160i4K,5K..KM5#198610-199008

main17571-13220i5K..KM51199008

main17571-64140i1C,2C..CM50,51,55198610

main17571-64150i2C..CM60,65198610-199611

main17571-64220i2C..CM52,61199110

main17571-72070i2Y..YM55198610-199008

main17571-72080i2Y..YM6#198610

main17571-72110i2Y..YM55..5H199008

main17571-72140i2Y..YM55..4HC199410

17430PIPE ASSY, EXHAUST, TAIL

main17405-13090i5K..KM51..JL..IV199008

main17405-64140i2C..CM65..IV198912-199310

main17405-72051i2Y..YM60198610-199310

main17405-72080i2Y..YM65199008

main17405-95700i4K..KM50..JL..IV198910-199008

main17405-95701i2C,2Y..CM60,YM60..5H..IV198910

main17405-95702i2C..CM51..JL..5H..IV198910

main17430-13320i4K,5K..KM5#..JL,T1198610-199008

main17430-13330i4K,5K..KM5#..SJL198610-199008

main17430-13410i5K..KM51..JL,T1199008

main17430-13420i5K..KM51..SJL199008

main17430-64411i1C,2C..CM50,51..JL198610-199310

sub17430-64810

main17430-64740i2C..CM52,61199110

main17430-64810i2C..CM51..JL199310

main17430-64820i2C..CM51,55..SJL,SJLC199310

main17430-64830i2C..CM60;2C..CM65..TS199310-199611

main17430-72191i1C,2C..CM50,51,55..SJL,SJLC198610-199310

sub17430-64820

main17430-72201i2Y..YM55198610

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17572-13060i4K,5K..KM5#198610-199008

BODY SIDE

main17572-64180i2C..CM52,61199110

main17573-64040i1C,2C,2Y..CM5#,6#,YM55,60198610-198711

OUTER

main17573-64090i2C..CM52,61199110

main17574-72031i1C,2C,2Y..CM5#,6#,YM55,60198711-199611

main17575-64020i1C,2C,2Y..CM5#,6#,YM55,60198610-198711

INNER

main17576-13010i4K,5K..KM5#198610-199008

PIPE SIDE

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main17561-73020i2C..CM52,61199110

main17566-64010i1C,2C,4K,5K,2Y..CM50,51,55,60,65,KM5#,YM55,6#198610-199611

17430FBRACKET, EXHAUST TAILPIPE(FOR CENTER)

main17573-64040i2C,5K,2Y..CM51,55,60,65,KM51,YM55,6#198711-199611

main17574-13040i4K,5K..KM5#198610-199008

main17574-13050i4K..KM50..JL..IV198910-199008

main17574-64080i2C..CM52,61199110

main17575-64020i1C,2C,2Y..CM5#,6#,YM55,60198711-199611

main17575-95700i2C,5K,2Y..CM51,60,KM51,YM60..JL..5H..IV198910

17430JBOLT OR RING, EXHAUST TAILPIPE(FOR CENTER)

main17561-73020i2C..CM52,61199110

main17566-64010i1C,2C,2Y..CM5#,6#,YM55,60198610-199611

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17574-72031i2C..CM6#198610-198711

main17575-13070i2C..CM65..IV198912-199310

main17575-13070i4K,5K..KM5#198610-199008

main17575-64070i2C..CM52,61199110

main17575-95700i4K..KM50..JL..IV198910-199008

17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)

main17561-73020i2C..CM52,61199110

main17565-13030i4K..KM50..JL..IV198910-199008

main17566-64010i2C..CM65..IV198912-199310

main17566-64010i4K,5K..KM5#198610-199008

17451GASKET, EXHAUST PIPE

main90917-06004i1C,2C,4K,5K..CM5#,6#,KM5#198610-199103

sub90917-06039

main90917-06004i2Y..YM6#198610-199103

sub90917-06039

main90917-06020i2Y..YM6#198610-199103

sub90917-06044

main90917-06020i2Y..YM55198610-199103

sub90917-06044

main90917-06039i2C..CM51,55,60,65199103

main90917-06044i5K,2Y..KM51,YM55199103

main90917-06044i2C..CM52,61199110

9011908086

main90119-08086

9011908706

main90119-08706

9011910019

main90119-10019

9017908145

main90179-08145

9017910016

main90179-10016

9046123974

main90461-23974

9165160830

main91651-60830

9165161025

main91651-61025

9418041000

main94180-41000

21 parts on this diagram · 6 diagrams in section
