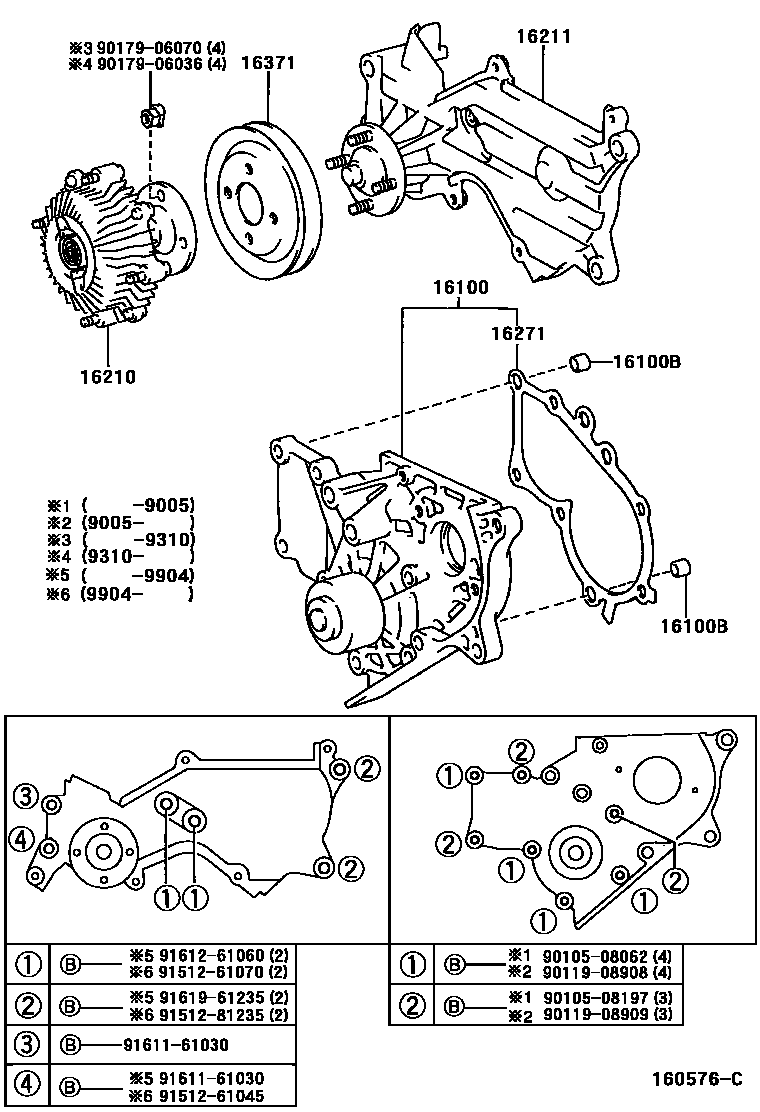

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-19155i4K,5K..KM5#198610-198912

main16100-19156i4K,5K..KM5#198912

main16100-69085i1C,2C..CM5#,6#198610-198912

main16100-69275i2C..CM5#,6#198912-199005

sub16100-64H00

sub16100-64H01

main16100-69295i2C..CM65..TS;2C..CM5#,60,61199310-199611

main16100-69296i2C..CM5#,6#199704-199811

sub16100-69425

main16100-69298i2C..CM5#,6#199811

sub16100-69435

main16100-79035i2Y..YM55,60198610-198704

main16100-79036i2Y..YM55,6#198704-199611

main16100-79037i2Y..YM55,6#199611

16100BPIN, RING(FOR WATER PUMP SET)

main90253-11021×2i2C..CM65..TS;2C..CM5#,60,61199310-199611

16210COUPLING ASSY, FLUID

main16210-13010i4K..KM50198610-199008

main16210-38050i5K..KM51198910

main16210-38060i5K..KM51198610-198910

main16210-64010i2C..CM65..TS;2C..CM5#,60,61..5H199310-199611

main16210-64020i2C..CM55..IV;2C..CM51..JL..5H..IV199206-199404

main16210-73010i2Y..YM55,6#198610

16211BRACKET, FLUID COUPLING

main16307-64012i1C,2C..CM5#,6#198610-199008

main16307-64020i2C..CM5#,6#199008-199306

main16307-64021i2C..CM5#,6#199306-199310

sub11321-64080

sub11328-64070

sub91512-61045

sub91512-61070

sub91512-81235

main16307-64022i2C..CM5#,6#199904

main16307-64030i2C..CM51,55..5H..IV199110-199206

main16307-64031i2C..CM51..SJL..CBU199206-199210

main16307-64032i2C..CM51..IV;2C..CM55..4HC199404-199611

16271GASKET, WATER PUMP

main16271-13021i4K,5K..KM5#198610-198912

main16271-13030i4K,5K..KM5#198912-199610

main16271-13040i5K..KM51199610

main16271-64010i1C,2C..CM5#,6#198610-198912

main16271-64020i2C..CM5#,6#198912-199005

main16271-64030i2C..CM5#,6#199611-199811

main16271-64031i2C..CM5#,6#199811

16371PULLEY, FAN

main16371-13010i4K,5K..KM5#198610

main16371-64030i1C,2C..CM5#,6#198610-199008

main16371-64040i2C..CM5#,6#199008-199310

main16371-64050i2C..CM65..TS;2C..CM5#,60,61199310-199611

main16371-73011i2Y..YM55,6#198610

9010508062

main90105-08062

9010508197

main90105-08197

9011908908

main90119-08908

9011908909

main90119-08909

9017906036

main90179-06036

9017906070

main90179-06070

9151261045

main91512-61045

9151261070

main91512-61070

9151281235

main91512-81235

9161161030

main91611-61030

9161261060

main91612-61060

9161961235

main91619-61235

18 parts on this diagram · 3 diagrams in section
