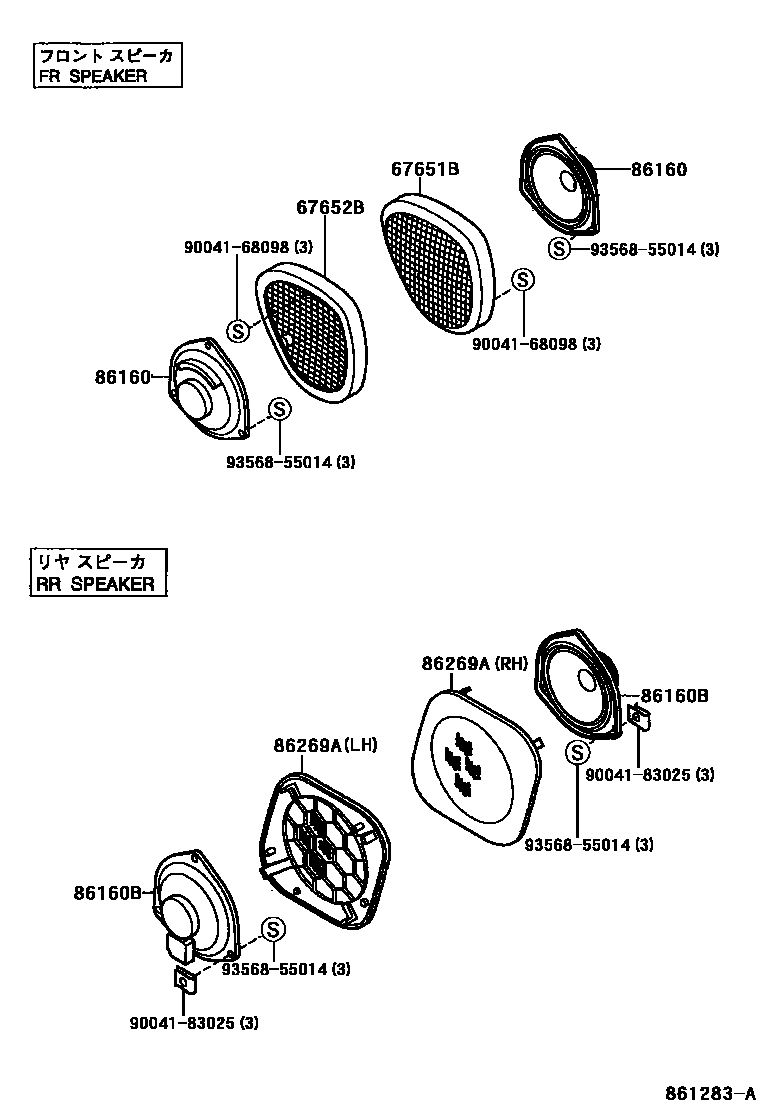

RADIO RECEIVER & AMPLIFIER & CONDENSER

67651BGRILLE, SPEAKER DOOR, RH

main67651-97503-03iS221,231200009

GRAY

67652BGRILLE, SPEAKER DOOR, LH

main67651-97503-03iS221,231200009

GRAY

86160SPEAKER ASSY, FRONT NO.1

main86160-97507×2iS221,231200009

86160BSPEAKER ASSY, REAR

main86160-97508×2iS221,231200009

86269AGRILLE, SPEAKER

main86269-97501-03iS221,231200009

main86269-97502-03iS221,231200009

9004168098

main90041-68098

9004183025

main90041-83025

9356855014

main93568-55014

8 parts on this diagram · 1 diagram in section
