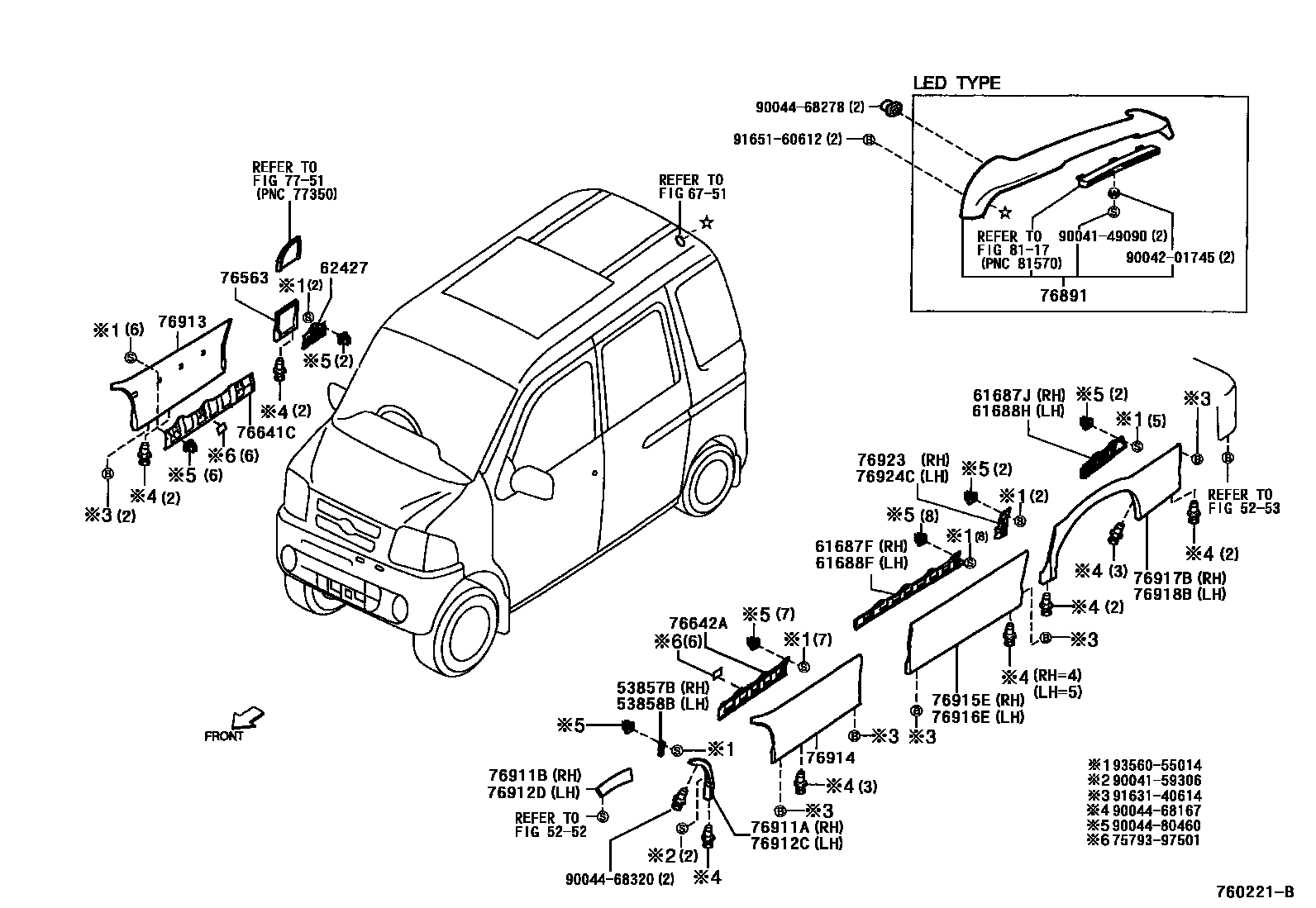

SPOILER & SIDE MUDGUARD

0001 1 0002 1 0003 1

5252

5253

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-97502iS221,231200009

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53858-97502iS221,231200009

61687FBRACKET, MUDGUARD, REAR

main67134-97502iS221,231200009

61687JBRACKET, MUDGUARD, REAR RH NO.2

main67467-97502iS221,231200009

61688FBRACKET, MUDGUARD, REAR LH

main67135-97502iS221,231200009

61688HBRACKET, MUDGUARD, REAR LH, NO.2

main67468-97503iS221,231200009

62427BRACKET, CENTER PILLAR GARNISH, RH

main62427-97502iS221,231200009

6751

76563MOULDING, CENTER PILLAR OUTER GARNISH, LOWER RH

main76563-97501-01iS221,231200009

BLACK M.,6A5

main76563-97501-02iS221,231200009-200106

RED MC.,3K3

main76563-97501-03iS221,231200009

SILVER M.,1C0

main76563-97501-04iS221,231200009-200206

DARK BLUE M.M.,B42

main76563-97501-08iS221,231200009

WHITE,056

main76563-97501-09iS221,231200106

SHAMPGNE ME.,583

main76563-97501-13iS221,231200206

GREENISH SILVER M.,S29

main76563-97501-18iS221,231200009

WHITE PEARL MC.,W16

76641CBRACKET, FRONT MUDGUARD, RH

main67123-97502iS221,231200009-200106

main67123-97503iS221,231200106

76642ABRACKET, FRONT MUDGUARD, LH

main67124-97502iS221,231200009-200106

main67124-97503iS221,231200106

76891SPOILER, REAR NO.1

main76870-97501-01iS221,231..LOR200206

sub76870-97501

main76870-97501-09iS221,231..LOR200206

sub76870-97501

main76870-97501-13iS221,231..LOR200206

sub76870-97501

main76870-97501-18iS221,231..LOR200206

sub76870-97501

main76870-97501-23iS221,231..LOR200206

sub76870-97501

main76870-97501-28iS221,231..LOR200206

sub76870-97501

main76870-97502-01iS221,231..G200009-200206

BLACK M.,6A5

sub76870-97502

main76870-97502-01iS221,231..HIR200009

sub76870-97502

main76870-97502-02iS221,231..G200009-200106

RED MC.,3K3

sub76870-97502

main76870-97502-02iS221,231200009-200106

sub76870-97502

main76870-97502-09iS221,231..G200106-200206

SHAMPGNE ME.,583

sub76870-97502

main76870-97502-09iS221,231..HIR200106

sub76870-97502

main76870-97502-13iS221,231..G200009-200206

SILVER M.,1C0

sub76870-97502

main76870-97502-13iS221,231..HIR200009

sub76870-97502

main76870-97502-14iS221,231..G200009-200206

sub76870-97502

main76870-97502-14iS221,231..G200009-200206

DARK BLUE M.M.,B42

sub76870-97502

main76870-97502-18iS221,231..HIR200009

sub76870-97502

main76870-97502-18iS221,231..G200009-200206

WHITE,056

sub76870-97502

main76870-97502-23iS221,231..HIR200206

sub76870-97502

main76870-97502-28iS221,231..HIR200009

sub76870-97502

main76870-97502-28iS221,231..G200009-200206

WHITE PEARL MC.,W16

sub76870-97502

76911AMUDGUARD, FENDER PANEL, RH

main75875-97501-01iS221,231200009

BLACK M.,6A5

main75875-97501-02iS221,231200009-200106

RED MC.,3K3

main75875-97501-03iS221,231200009

SILVER M.,1C0

main75875-97501-04iS221,231200009-200206

DARK BLUE M.M.,B42

main75875-97501-08iS221,231200009

WHITE,056

main75875-97501-09iS221,231200106

SHAMPGNE ME.,583

main75875-97501-13iS221,231200206

GREENISH SILVER M.,S29

main75875-97501-18iS221,231200009

WHITE PEARL MC.,W16

76911BMUDGUARD, SIDE, RH

main75871-97501-01iS221,231200009

BLACK M.,6A5

main75871-97501-02iS221,231200009-200106

RED MC.,3K3

main75871-97501-03iS221,231200009

SILVER M.,1C0

main75871-97501-04iS221,231200009-200206

DARK BLUE M.M.,B42

main75871-97501-08iS221,231200009

WHITE,056

main75871-97501-09iS221,231200106

SHAMPGNE ME.,583

main75871-97501-13iS221,231200206

GREENISH SILVER M.,S29

main75871-97501-18iS221,231200009

WHITE PEARL MC.,W16

76912CMUDGUARD, FENDER PANEL, LH

main75876-97501-01iS221,231200009

BLACK M.,6A5

main75876-97501-02iS221,231200009-200106

RED MC.,3K3

main75876-97501-03iS221,231200009

SILVER M.,1C0

main75876-97501-04iS221,231200009-200206

DARK BLUE M.M.,B42

main75876-97501-08iS221,231200009

WHITE,056

main75876-97501-09iS221,231200106

SHAMPGNE ME.,583

main75876-97501-13iS221,231200206

GREENISH SILVER M.,S29

main75876-97501-18iS221,231200009

WHITE PEARL MC.,W16

76912DMUDGUARD, SIDE, LH

main75872-97501-01iS221,231200009

BLACK M.,6A5

main75872-97501-02iS221,231200009-200106

RED MC.,3K3

main75872-97501-03iS221,231200009

SILVER M.,1C0

main75872-97501-04iS221,231200009-200206

DARK BLUE M.M.,B42

main75872-97501-08iS221,231200009

WHITE,056

main75872-97501-09iS221,231200106

SHAMPGNE ME.,583

main75872-97501-13iS221,231200206

GREENISH SILVER M.,S29

main75872-97501-18iS221,231200009

WHITE PEARL MC.,W16

76913MUDGUARD, FRONT DOOR, RH

main75735-97501-01iS221,231200009

BLACK M.,6A5

main75735-97501-02iS221,231200009-200106

RED MC.,3K3

main75735-97501-03iS221,231200009

SILVER M.,1C0

main75735-97501-04iS221,231200009-200206

DARK BLUE M.M.,B42

main75735-97501-08iS221,231200009

WHITE,056

main75735-97501-09iS221,231200106

SHAMPGNE ME.,583

main75735-97501-13iS221,231200206

GREENISH SILVER M.,S29

main75735-97501-18iS221,231200009

WHITE PEARL MC.,W16

76914MUDGUARD, FRONT DOOR, LH

main75736-97501-01iS221,231200009

BLACK M.,6A5

main75736-97501-02iS221,231200009-200106

RED MC.,3K3

main75736-97501-03iS221,231200009

SILVER M.,1C0

main75736-97501-04iS221,231200009-200206

DARK BLUE M.M.,B42

main75736-97501-08iS221,231200009

WHITE,056

main75736-97501-09iS221,231200106

SHAMPGNE ME.,583

main75736-97501-13iS221,231200206

GREENISH SILVER M.,S29

main75736-97501-18iS221,231200009

WHITE PEARL MC.,W16

76915EMUDGUARD, SLIDE DOOR, RH

main75745-97501-01iS221,231200009

BLACK M.,6A5

main75745-97501-02iS221,231200009-200106

RED MC.,3K3

main75745-97501-03iS221,231200009

SILVER M.,1C0

main75745-97501-04iS221,231200009-200206

DARK BLUE M.M.,B42

main75745-97501-08iS221,231200009

WHITE,056

main75745-97501-09iS221,231200106

SHAMPGNE ME.,583

main75745-97501-13iS221,231200206

GREENISH SILVER M.,S29

main75745-97501-18iS221,231200009

WHITE PEARL MC.,W16

76916EMUDGUARD, SLIDE DOOR, LH

main75746-97501-01iS221,231200009

BLACK M.,6A5

main75746-97501-02iS221,231200009-200106

RED MC.,3K3

main75746-97501-03iS221,231200009

SILVER M.,1C0

main75746-97501-04iS221,231200009-200206

DARK BLUE M.M.,B42

main75746-97501-08iS221,231200009

WHITE,056

main75746-97501-09iS221,231200106

SHAMPGNE ME.,583

main75746-97501-13iS221,231200206

GREENISH SILVER M.,S29

main75746-97501-18iS221,231200009

WHITE PEARL MC.,W16

76917BMUDGUARD, QUARTER PANEL, RH

main75873-97501-01iS221,231200009

BLACK M.,6A5

main75873-97501-02iS221,231200009-200106

RED MC.,3K3

main75873-97501-03iS221,231200009

SILVER M.,1C0

main75873-97501-04iS221,231200009-200206

DARK BLUE M.M.,B42

main75873-97501-08iS221,231200009

WHITE,056

main75873-97501-09iS221,231200106

SHAMPGNE ME.,583

main75873-97501-13iS221,231200206

GREENISH SILVER M.,S29

main75873-97501-18iS221,231200009

WHITE PEARL MC.,W16

76918BMUDGUARD, QUARTER PANEL, LH

main75874-97501-01iS221,231200009

BLACK M.,6A5

main75874-97501-02iS221,231200009-200106

RED MC.,3K3

main75874-97501-03iS221,231200009

SILVER M.,1C0

main75874-97501-04iS221,231200009-200206

DARK BLUE M.M.,B42

main75874-97501-08iS221,231200009

WHITE,056

main75874-97501-09iS221,231200106

SHAMPGNE ME.,583

main75874-97501-13iS221,231200206

GREENISH SILVER M.,S29

main75874-97501-18iS221,231200009

WHITE PEARL MC.,W16

76923RETAINER, SIDE MUDGUARD

main61687-97502iS221,231200009

76924CRETAINER, SIDE MUDGUARD, NO.2

main61688-97502iS221,231200009

7751

8117

7579397501PAD, FRONT DOOR OUTSIDE MOULDING, UPPER

main75793-97501

9004149090

main90041-49090

9004159306

main90041-59306

9004201745

main90042-01745

9004468167

main90044-68167

9004468278

main90044-68278

9004468320

main90044-68320

9004480460

main90044-80460

9163140614

main91631-40614

9165160612

main91651-60612

9356055014

main93560-55014

39 parts on this diagram · 3 diagrams in section
