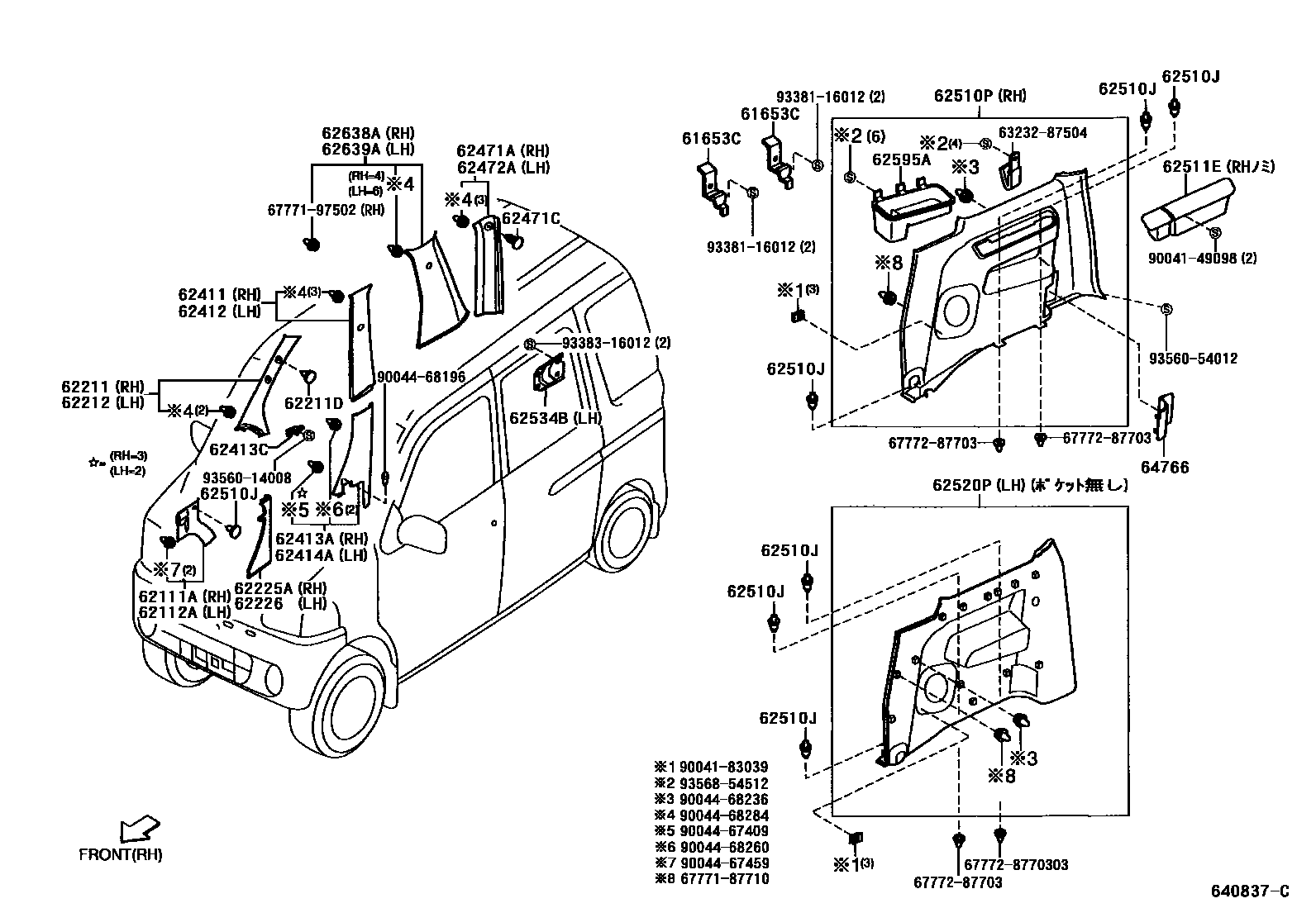

INSIDE TRIM BOARD
61653CBRACKET, DECK SIDE TRIM, RH
62111ATRIM SUB-ASSY, COWL SIDE, RH
GRAY
62112ATRIM SUB-ASSY, COWL SIDE, LH
62211GARNISH, FRONT PILLAR, RH
GRAY
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
GRAY
62225AGARNISH, FRONT PILLAR, LOWER RH
GRAY
62226GARNISH, FRONT PILLAR, LOWER LH
GRAY
62411GARNISH, CENTER PILLAR, RH
GRAY
62412GARNISH, CENTER PILLAR, LH
GRAY
62413AGARNISH, CENTER PILLAR, LOWER RH
GRAY
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
GRAY
62471AGARNISH, ROOF SIDE, INNER RH
GRAY
GRAY
62471CCLIP(FOR REAR PILLAR COVER)
62472AGARNISH, ROOF SIDE, INNER LH
GRAY
GRAY
62510JRETAINER, QUARTER TRIM
62510PPANEL ASSY, QUARTER TRIM, FRONT RH
GRAY
62511EPOCKET, QUARTER TRIM
GRAY
62520PPANEL ASSY, QUARTER TRIM, FRONT LH
GRAY
62534BBRACKET, QUARTER TRIM, LH
62595APOCKET, QUARTER TRIM, NO.2
GRAY
62638AGARNISH, QUARTER PILLAR, RH
GRAY
62639AGARNISH, QUARTER PILLAR, LH
GRAY
64766COVER SUB-ASSY, QUARTER TRIM JACK
GRAY
6323287504RETAINER, REMOVABLE ROOF
main63232-87504
6777187710WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-87710
6777197502WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-97502
6777287703WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-87703
9004149098
main90041-49098
9004183039
main90041-83039
9004467409
main90044-67409
9004467459
main90044-67459
9004468196
main90044-68196
9004468236
main90044-68236
9004468260
main90044-68260
9004468284
main90044-68284
9338116012
main93381-16012
9338316012
main93383-16012
9356014008
main93560-14008
9356054012
main93560-54012
9356854512
main93568-54512
42 parts on this diagram · 1 diagram in section
