SIDE MEMBER
53705BMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH
53706BMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH
53866HSEAL, FRONT FENDER TO COWL SIDE, RH
53867GSEAL, FR FENDER TO COWL SIDE, LH
61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH
61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH
61031CEXTENSION SUB-ASSY, QUARTER PANEL, REAR RH
61032CEXTENSION SUB-ASSY, QUARTER PANEL, REAR LH
61033EXTENSION SUB-ASSY, QUARTER LOCK PILLAR
61161APILLAR, FRONT BODY, INNER RH
61162APILLAR, FRONT BODY, INNER LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61233ARAIL, ROOF SIDE, INNER NO.2 RH
61234ARAIL, ROOF SIDE, INNER NO.2 LH
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61703GPANEL SUB-ASSY, QUARTER, INNER RH
61704HPANEL SUB-ASSY, QUARTER, INNER LH
61735BEXTENSION, QUARTER PANEL, INNER RH
61736BEXTENSION, QUARTER PANEL, INNER LH
61824PLATE, NOISE CONTROL, NO.1
61825APLATE, NOISE CONTROL, NO.2
61826CPAD, NOISE SHUTTER, NO.3
76621CMUDGUAD, FRONT FENDER, RH
76622CMUDGUARD, FRONT FENDER, LH
6258997501GARNISH, BACK PANEL
main62589-97501
6728387201BASE, BACK DOOR STOPPER
main67283-87201
8889997502COVER, EVAPORATOR
main88899-97502
9004159306
main90041-59306
9004159410
main90041-59410
9004871222
main90048-71222
9004871269
main90048-71269
9004871283
main90048-71283
9004871287
main90048-71287
9004874004
main90048-74004
900487402901
main90048-7402901
9033320001
main90333-20001

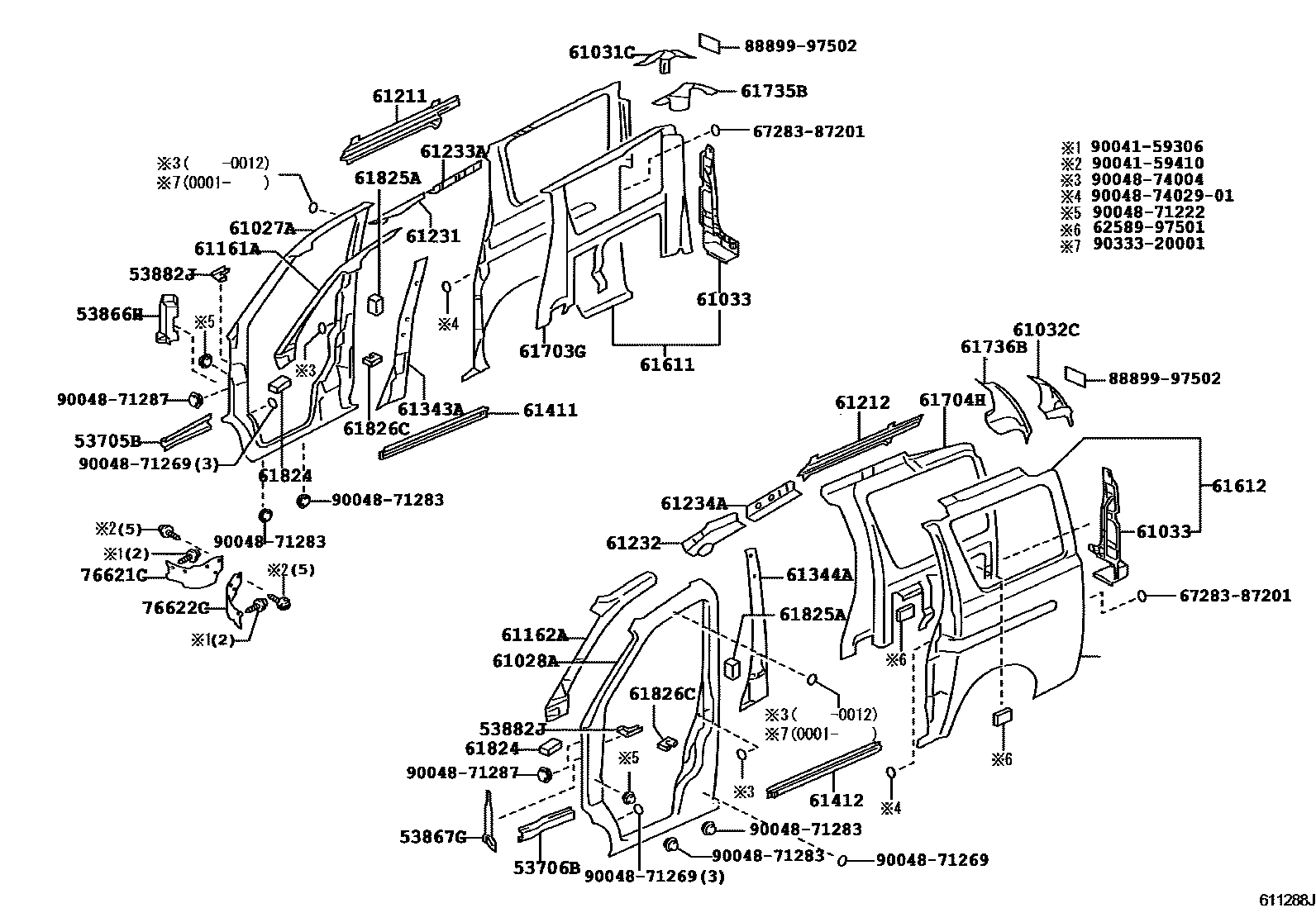

45 parts on this diagram · 1 diagram in section
