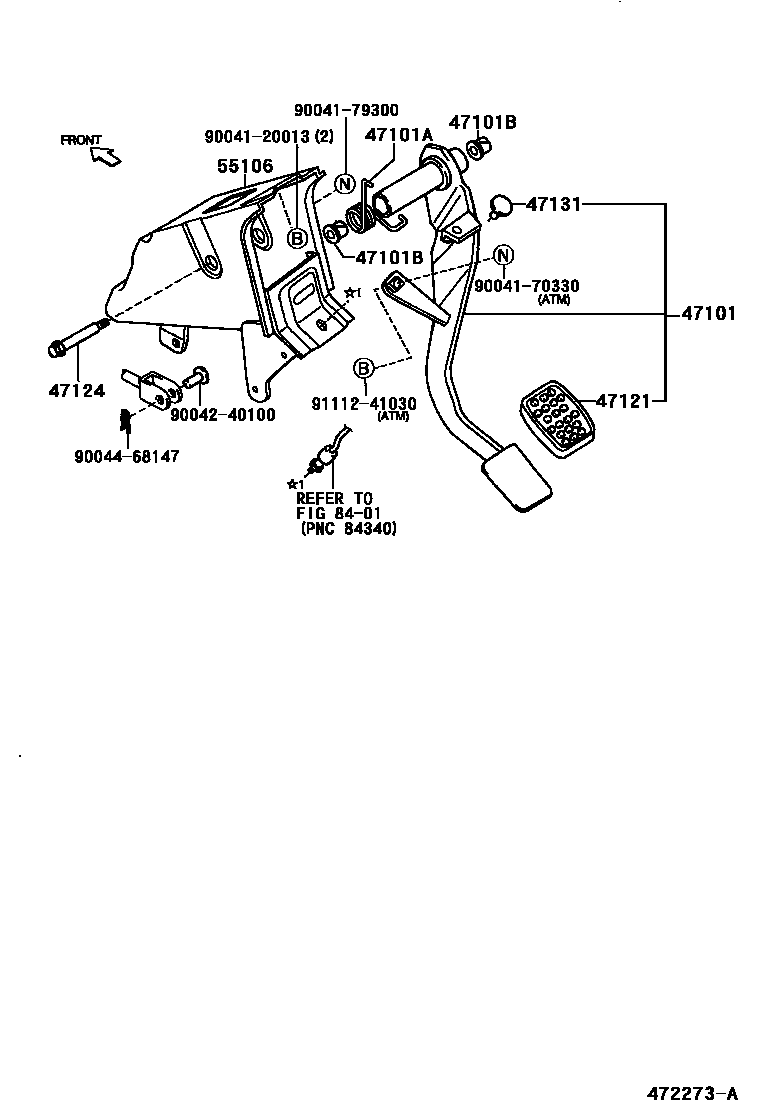

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-97501iS221,231..5MT200009-200106

main47101-97502iS221,231..4AT200009-200106

main47101-97506iS221,231..5MT200106

main47101-97507iS221,231..ATM200106

47101ASPRING(FOR BRAKE PEDAL RETURN)

main31394-97507iS221,231200106

main90045-08386iS221,231200009-200106

47101BBUSH(FOR BRAKE PEDAL)

main90043-86121×2iS221,231200009

47121PAD, BRAKE PEDAL

main31321-87503iS221,231200009-200106

main31321-97501iS221,231200106

47124SHAFT, BRAKE PEDAL

main47124-97501iS221,231200009

47131CUSHION(FOR STOP LAMP SWITCH)

main90045-40158iS221,231200009

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-97503iS221,231..5MT200009

main55106-97504iS221,231..ATM200009

8401

9004120013

main90041-20013

9004170330

main90041-70330

9004179300

main90041-79300

9004240100

main90042-40100

9004468147

main90044-68147

9111241030

main91112-41030

14 parts on this diagram · 1 diagram in section
