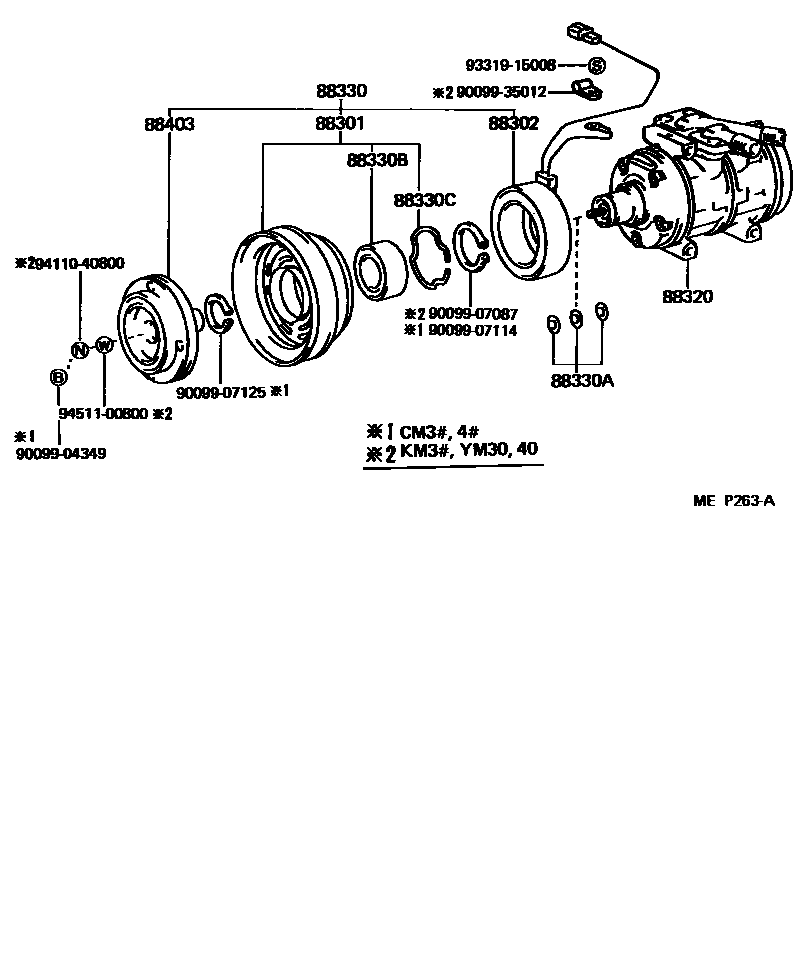

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-22030iKM31,35,36,YM30198808-199201

main88412-28020iCM40..W4D..(GXL,LD,SSW,SW)198808-199201

sub88412-22230

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iYM31198808-199201

main88411-22151iCM30..5F..GXL;CM30..4FC..(GXL,SUC)198808-198902

sub88411-30510

main88411-30510iCM40..W4D..(GXL,LD,SSW,SW)198902-199201

sub88411-35070

main88411-60040iKM31,35,36,YM30198902-199201

88320COMPRESSOR ASSY, COOLER

main88320-27060iYM3#198808-199201

main88320-27070iKM30..W5D198910-199201

main88320-27070iKM30..W4D..(LD,SCA,SW)198808-199201

main88320-27110iCM40..GXL198808-199201

main88320-27110iCM40..W4D..(FXV,LD,SSW,SW)199008-199201

main88320-27120iCM30..W5D;CM30..W4D..SRF198808-199201

main88320-27130iCM30..5F..GXL;CM30..4FC..FXV;CM30..W4D..DSL198808-199201

main88320-27140iKM31,36..3FC199008-199201

88330CLUTCH ASSY, MAGNET

main88410-22080iKM30..SUC198808-199201

sub88410-60140

main88410-28020iCM30..5F..(LD,SUC,SW)198808-198902

sub88410-28050

main88410-28050iCM30..5F..GXL;CM30..4FC..(GXL,SUC)198902-199008

main88410-28060iCM30,40..W5D;CM30..5F..(FXV,SUC)..TD199008-199201

main88410-60140iKM30,YM40..W4D..(FXV,LD,SCA,SW)198902-199201

sub88410-36390

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iCM30..FXV,GXL198808-199201

88330BBEARING, MAGNET CLUTCH

main90099-07087iYM30..FXV198808-199201

main90099-10133iKM30,YM40..W4D..(FXV,LD,SCA,SW)198808-199201

main90099-10133iYM30..FXV198808-199201

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07094iYM40198808-199201

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iKM30..W4D..(LD,SCA,SW)198808-199201

main88403-16011iCM40..W4D..(GXL,LD,SSW,SW)198808-199201

9009904349

main90099-04349

9009907087

main90099-07087

9009907114

main90099-07114

9009907125

main90099-07125

9009935012

main90099-35012

9331915008

main93319-15008

9411040800

main94110-40800

9451100800

main94511-00800

16 parts on this diagram · 3 diagrams in section
