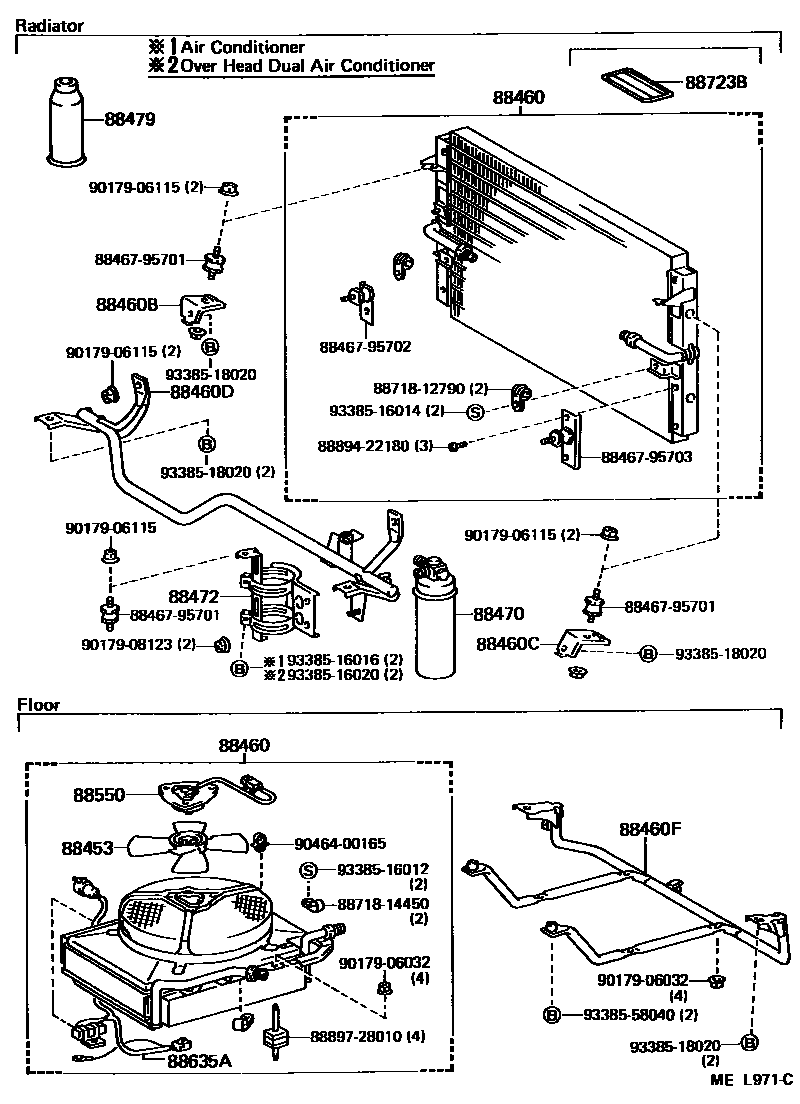

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1DUAL AIR CONDITIONER 0006 1DUAL AIR CONDITIONER 0007 1 0008 1 0009 1 0010 1 0011 1

88453FAN, COOLING (FOR CONDENSER)

main88453-28010iCM40..4FC..GXL198808-199201

88460CONDENSER ASSY, COOLER

main88460-95710iCM30..FXV198808-199201

main88460-95712iYM30..FXV198808-199201

main88460-95713iYM40..GXL;CM40..5F..GXL198808-199201

main88460-95713iYM40..GXL;CM40..5F..GXL199008-199201

main88460-95713iYM40..LD,SW;CM40..W4D..5F..(FXV,LD,SSW,SW)198808-199201

FLOOR

main88460-95713iCM40..5F..GXL198808-199201

main88460-95714iCM30,YM30..FXV198808-199201

main88460-95716iKM30..W4D198808-199201

sub88460-95710

main88460-95716iCM31,36,KM31,36,YM3#..(4FC,5F,5H)..(DLX,GXL,SUP)198808-199201

RADIATOR

sub88460-95710

main88460-95717iCM30..5F..(FXV,SUC)..TD198808-199201

main88460-95717iCM30..W4D..DSL;CM30..4FC..FXV;KM30..W4D..(LD,SCA,SW)199008-199201

main88460-95717iKM30..SUC;CM30..5F..GXL;CM30..4FC..(GXL,SUC)198808-199201

FLOOR

main88460-95718iCM41198808-199201

FLOOR

main88460-95719iKM30..SUC;CM30..5F..GXL198808-199201

main88460-95719iKM30..SUC;CM30..5F..GXL;CM30..4FC..(GXL,SUC)199008-199201

main88460-95723iCM40..4FC..FXV199008-199201

FLOOR

main88460-95723iCM40..W5D..4FC199008-199201

main88460-95723iCM40..4FC..GXL198808-199008

main88460-95723iCM40..4FC..GXL198808-199008

main88460-95724iCM40..4FC..FXV198808-199201

main88460-95724iCM40..4FC..GXL198808-199008

RADIATOR

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-95743iKM30..LD,SCA,SW;CM30..5F..(LD,SUC,SW)198808-199201

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-95744iCM31,36,KM31,36,YM3#..4FC,5F,5H198808-199201

88460DBRACKET, COOLER CONDENSER, NO.3

main88688-95746iKM30..W4D..(LD,SCA,SW);CM30..W4D..5F..(LD,SSW,SUC,SW)198808-199201

88460FBRACKET, COOLER CONDENSER, NO.4

main88463-95703iKM31,36..3FC199008-199201

main88688-95771iCM40,YM40..W4D..(LD,SSW,SW)198808-199201

main88688-95776iCM40..W5D..5F198808-199201

main88688-95777iCM41,YM30198808-199201

88470RECEIVER & DRYER ASSY, COOLER

main88471-16010iYM40..GXL;CM30,40..5F..GXL;CM30..4FC..(GXL,SUC)198808-199201

main88471-95700iKM31,36..3FC199008-199201

sub88471-95401

88472BRACKET, RECEIVER TANK, NO.1

main88472-27010iKM31,36..3FC199008-199201

main88472-95704iCM30,YM30..FXV198808-199201

main88472-95706iCM40..W5D..5F198808-199201

main88472-95706iYM40..GXL,LD,SW;CM40..W4D..5F..(GXL,LD,SSW,SW)198808-199008

main88472-95706iCM40..W5D198910-199008

main88472-95707iKM30..SUC;CM30..5F..GXL;CM30..4FC..(GXL,SUC)198808-199201

sub88472-95704

main88472-95707iYM30..FXV198808-199201

sub88472-95704

main88472-95708iCM41198808-199201

main88472-95710iCM40..4FC..FXV199008-199201

main88472-95710iCM40..4FC..GXL198808-199008

main88472-95710iCM40..4FC..FXV198808-199008

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001iCM40,YM40..FXV198808-199201

sub90986-02004

sub90986-02005

main90986-02004iCM40..4FC..FXV;CM40..W4D..(GXL,LD,SSW,SW)198808-199201

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-87002iYM30198808-199201

88635ARESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR)

main88635-95702iCM30..4FC..FXV;KM30..W4D..(LD,SCA,SW);CM30..W4D..5F..(FXV,LD,SSW,SUC,SW)198808-199201

88723BLABEL, COOLER SERVICE CAUTION

main88723-12040iCM31,36,KM31,36,YM31..4FC,5F,5H199003-199201

main88723-20010iCM41199003-199201

main88723-22040iCM40..4FC199008-199201

main88723-27010iKM30..HRF198907-199003

main88723-27010iKM30..MRF..(LD,SCA)199002-199201

main88723-27020iCM30..5F..SUC..TD199002-199201

main88723-27020iCM30,YM30..FXV199002-199201

main88723-28040iCM40..5F..FXV199003-199201

main88723-28040iYM40..FXV;CM40..5F..FXV199002-199003

main88723-30020iCM40..4FC..FXV199003-199201

main88723-30020iCM40..4FC..FXV199002-199003

main88723-50030iCM40..W5D;YM40..GXL,LD,SW199003-199201

8846195702BASE, COOLER CONTROL PANEL

main88461-95702

8846795701CUSHION, COOLER CONDENSER, NO.1

main88467-95701

8846795703CUSHION, COOLER CONDENSER, NO.1

main88467-95703

8871812790PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12790

8871814450PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-14450

8889422180

main88894-22180

8889728010VALVE, COOLER MAGNET

main88897-28010

9017906032

main90179-06032

9017906115

main90179-06115

9017908123

main90179-08123

9046400165

main90464-00165

9338516012

main93385-16012

9338516014

main93385-16014

9338516016

main93385-16016

9338516020

main93385-16020

9338518020

main93385-18020

9338558040

main93385-58040

29 parts on this diagram · 11 diagrams in section
