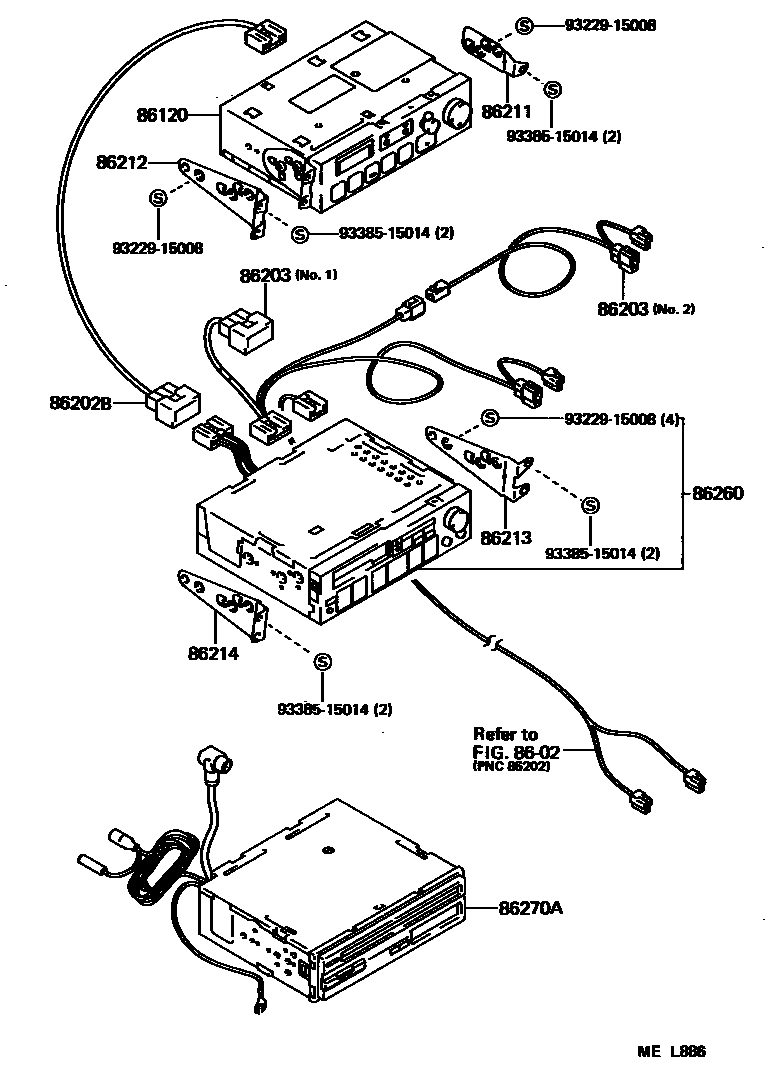

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

8602

86120RECEIVER ASSY, RADIO

main86120-12610iCM30,40,YM30,40..GXL198903-198903

main86120-16350iCM3#,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW198808-199201

sub86120-10290

main86120-95708iCM30..5F..SUC..TD;CM30,40,YM30,40..FXV198808-198910

main86120-95709iCM30,40,YM30,40..FXV198808-199201

main86120-95710iCM40..5F..FXV;CM40..4FC..GXL;CM30,YM30,40..FXV;CM30..5F..SUC..TD198910-199201

main86120-95711iCM30,40,YM30,40..GXL198909-199201

main86120-95711iYM30..4FC..FXV198910-199201

main86120-95711iCM30,40,YM30,40..GXL198906-198908

86202BWIRE, TAPE PLAYER

main86203-95715iCM3#,4#,KM3#,YM30,40198808-198910

86203WIRE, RADIO

main86202-95707iCM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC198808-198810

sub86203-95710

main86202-95714iCM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC198808-198810

sub86203-95717

main86203-95710iCM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC198810-198910

main86203-95717iCM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC198810-198910

86211BRACKET, RADIO, NO.1

main86211-95714iCM3#,4#,KM3#,YM3#,40198808-199201

main86215-95700iCM30,40,KM30,YM30,40198808-199201

86212BRACKET, RADIO, NO.2

main86212-95704iCM40..4FC..FXV198808-199201

main86212-95706iCM30,40,YM30,40..FXV198808-199201

main86212-95706iCM30,40,YM30,40..GXL198906-199201

86213BRACKET, RADIO, NO.3

main86211-95712iCM3#,4#,KM3#,YM3#,40198808-199201

86214BRACKET, RADIO, NO.4

main86212-95705iCM3#,4#,KM3#,YM3#,40198808-199201

86260TAPE PLAYER ASSY

main86260-19105iCM30,40,KM30,YM30,40198808-198910

main86260-19115iCM30,40,KM30,YM30,40198808-198910

main86260-19125iCM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC198808-198910

main86260-19135iCM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC198808-198910

86270ADISC PLAYER ASSY

main86270-95701iCM40..GXL;CM40..5F..FXV;CM30,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD)198808-199201

9322915008

main93229-15008

9338515014

main93385-15014

12 parts on this diagram · 2 diagrams in section
