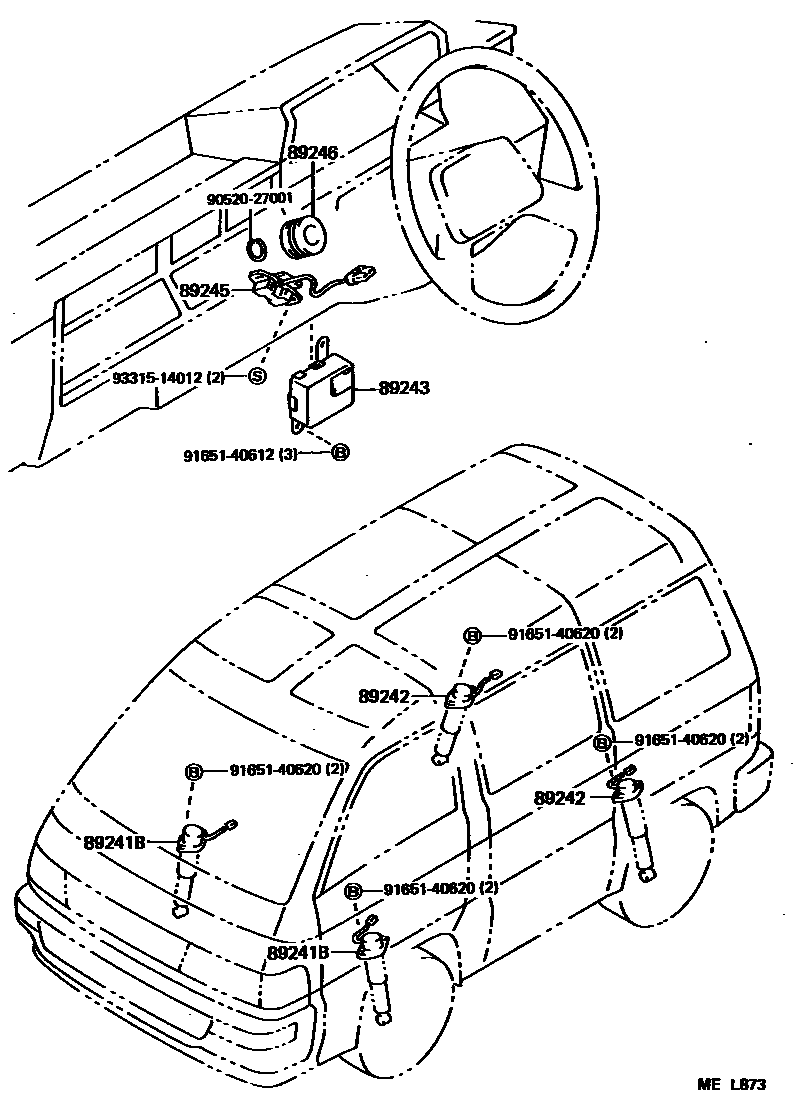

ELECTRONIC MODULATED SUSPENSION

89241BACTUATOR, ABSORBER CONTROL

main89241-27010×2iCM30,40,YM30,40..FXV198808-199201

89242ACTUATOR, ABSORBER CONTROL, RR

main89242-27010×2iCM30,40,YM30,40..FXV198808-199201

89243COMPUTER, ABSORBER CONTROL

main89243-27010iCM30,40,YM30,40..FXV198808-199201

89245SENSOR, STEERING

main89245-22010iCM30,40,YM30,40..FXV198808-199201

89246DISC, SENSOR STEERING

main89246-22010iCM30,40,YM30,40..FXV198808-199201

9052027001

main90520-27001

9165140612

main91651-40612

9165140620

main91651-40620

9331514012

main93315-14012

9 parts on this diagram · 1 diagram in section
