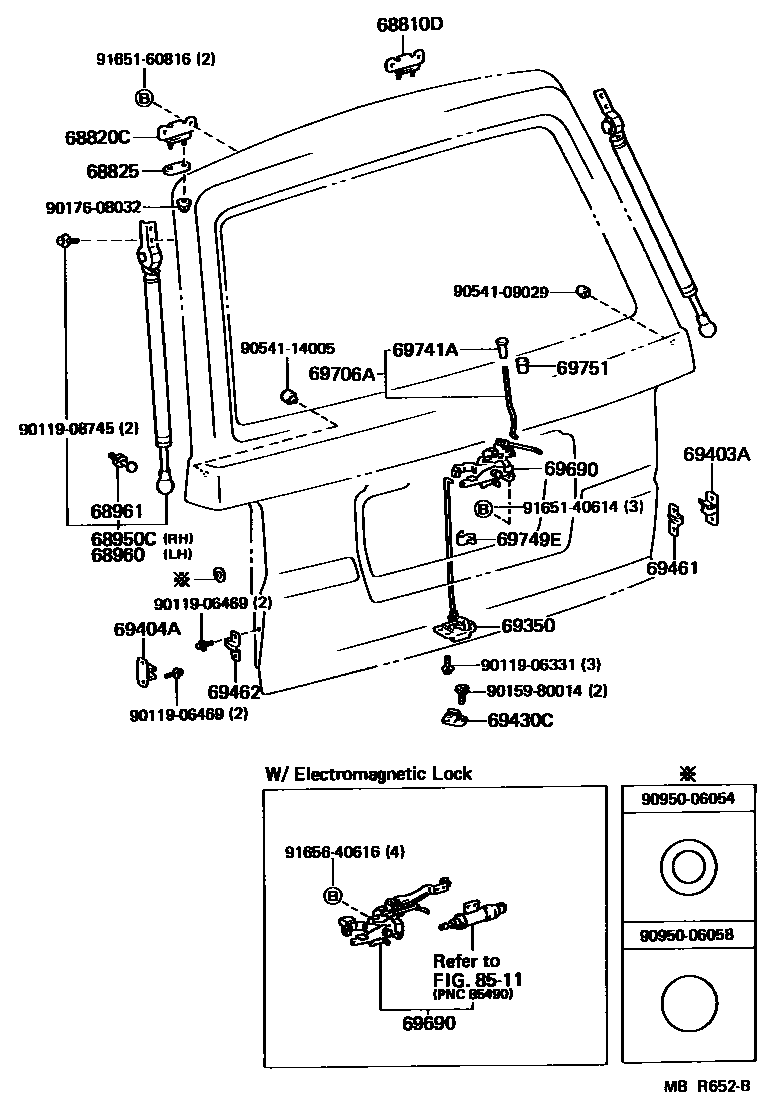

BACK DOOR LOCK & HINGE

68810DHINGE ASSY, BACK DOOR, RH

main68810-95J01iCM3#,4#,KM3#,YM3#,40198808-199201

68820CHINGE ASSY, BACK DOOR, LH

main68820-95J01iCM3#,4#,KM3#,YM3#,40198808-199201

68825PLATE, BACK DOOR HINGE

main68825-95700×2iCM3#,4#,KM3#,YM3#,40198808-199201

68950CSTAY ASSY, BACK DOOR, RH

main68950-29745iCM30,36,41,KM3#,YM31..SRF198808-199201

main68950-29765iCM30,40,KM30,YM40..MRF..LD198808-199201

main68950-29775iCM30,36,4#,KM30,35,36,YM40..(HRF,MRF)..(DLX,SW)198808-199201

main68950-29805iCM30,36,4#,KM30,35,36,YM40..(HRF,MRF)..(DLX,SW)198808-199201

main68950-29815iCM3#,4#,KM3#,YM40..(HRF,MRF)..(DLX,LD,SUP,SW)198808-199008

main68950-29825iKM30..SCA;CM30..SUC..DSL198808-199201

68960STAY ASSY, BACK DOOR, LH

main68960-29575iCM30,36,41,KM3#,YM31..SRF198808-199201

main68960-29595iCM30,36,4#,KM30,35,36,YM40..(HRF,MRF)..(DLX,SW)198808-199201

main68960-29605iCM30,40,KM30,YM40..MRF..LD198808-199201

main68960-29635iCM30,36,4#,KM30,35,36,YM40..(HRF,MRF)..(DLX,SW)198808-199201

main68960-29645iCM3#,4#,KM3#,YM40..(HRF,MRF)..(DLX,LD,SUP,SW)198808-199008

main68960-29655iKM30..SCA;CM30..SUC..DSL198808-199201

68961BOLT, BACK DOOR STAY

main68961-95702×2iCM3#,4#,KM3#,YM3#,40198808-199201

69350LOCK ASSY, BACK DOOR

main69350-95709iCM3#,4#,KM3#,YM3#,40198808-199201

69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH

main69403-95701iCM3#,4#,KM3#,YM3#,40198808-199201

69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH

main69404-95701iCM3#,4#,KM3#,YM3#,40198808-199201

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-95702iCM3#,4#,KM3#,YM3#,40198808-199201

69461STOPPER, BACK DOOR SIDE MALE, RH

main69461-95702iCM3#,4#,KM3#,YM3#,40198808-199201

69462STOPPER, BACK DOOR SIDE MALE, LH

main69462-95702iCM3#,4#,KM3#,YM3#,40198808-199201

69690CONTROL ASSY, BACK DOOR REMOTE

main69690-95702iCM30,40,KM30,YM40..SW198808-199201

main69690-95704iCM30,40,KM30,YM40..SW198808-199201

main69690-95705iCM31,KM31,36,YM31..SUP198808-199201

main69690-95706iCM36,41,KM35,36,YM31..DLX198808-199201

main69690-95709iCM40..GXL199104-199104

69706AROD SUB-ASSY, BACK DOOR LOCK REMOTE CONTROL

main69706-95701-03iCM30,31,40,KM30,31,36,YM3#,40..FXV,GXL,LD,SCA,SSW,SUC,SUP198808-199201

GRAY,TRIM1#

main69706-95701-16iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

SABLE,TRIM4#

69741AKNOB, BACK DOOR LOCK CONTROL

main69741-95703-03iCM30,31,40,KM30,31,36,YM3#,40..FXV,GXL,LD,SCA,SSW,SUC,SUP198808-199201

GRAY,TRIM1#

main69741-95703-16iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

SABLE,TRIM4#

69749ECLAMP, BACK DOOR LOCK LINK

main69749-30020iCM3#,4#,KM3#,YM3#,40198808-199201

69751HOLDER, DOOR LOCK CONTROL KNOB

main69751-95701-03iCM30,31,40,KM30,31,36,YM3#,40..FXV,GXL,LD,SCA,SSW,SUC,SUP198808-199107

GRAY,TRIM1#

main69751-95701-16iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199107

SABLE,TRIM4#

main69751-95J00-B0iCM30,31,40,KM3#,YM3#,40..FXV,GXL,LD,SCA,SSW,SUC,SUP199107-199201

GRAY,TRIM1#

main69751-95J00-E0iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC199107-199201

SABLE,TRIM4#

8511

9011906331

main90119-06331

9011906469

main90119-06469

9011908745

main90119-08745

9015980014

main90159-80014

9017608032

main90176-08032

9054109029

main90541-09029

9054114005

main90541-14005

9095006054

main90950-06054

9095006058

main90950-06058

9165140614

main91651-40614

9165160816

main91651-60816

9165640616

main91656-40616

30 parts on this diagram · 1 diagram in section
