BACK DOOR PANEL & GLASS

63016COVER SUB-ASSY, BACK DOOR OPENING, UPPER INNER

main63016-95700-03iKM36..VSP..MRF198808-199201

GRAY,TRIM1#

67005PANEL SUB-ASSY, BACK DOOR

main67005-27030iCM30,40,YM30,40..FXV199008-199201

main67005-27030iCM30,40,YM30,40..FXV199008-199201

main67005-27040iCM30,40,YM30,40..FXV199008-199201

main67005-95G25iCM36,41,KM35,36,YM31..SRF..DLX198808-199201

main67005-95G32iCM30,40,KM30,YM40..(HRF,MRF)..(LD,SW)198808-199201

main67005-95G33iCM36,41,KM35,36,YM31..SRF..DLX198808-199201

sub67005-95G25

sub90950-01108

main67005-95G34iCM36,41,KM35,36..(HRF,MRF)..DLX198808-199201

sub67005-95G32

sub90950-01108

main67005-95G35iCM36,41,KM35,36,YM31..SRF..DLX198808-199201

main67005-95G35iCM30,KM30..SRF198808-199201

main67005-95G35iKM31..SRF198808-198910

main67005-95G36iCM36,41,KM35,36..(HRF,MRF)..DLX198808-199201

main67005-95G36iCM36,41,KM35,36..(HRF,MRF)..DLX198808-199201

main67005-95G36iCM31,KM31,36..(HRF,MRF)..05S198808-199008

main67005-95G42iCM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD)198808-199201

main67005-95G45iCM36,41,KM35,36,YM31..SRF..DLX198808-199201

sub67005-95G35

sub90950-01108

main67005-95G46iCM36,41,KM35,36..(HRF,MRF)..DLX198808-199201

sub67005-95G36

sub90950-01108

main67005-95G48iCM36,41,KM35,36..(HRF,MRF)..DLX198808-199201

main67005-95G48iCM36,41,KM35,36..(HRF,MRF)..DLX198808-199201

main67005-95G49iCM36,41,KM35,36,YM31..SRF..DLX198808-199201

sub67005-95G55

sub90950-01108

main67005-95G50iCM36,41,KM35,36..(HRF,MRF)..DLX198808-199201

sub67005-95G48

sub90950-01108

main67005-95G51iCM30,KM30..SRF198808-199201

main67005-95G51iKM31..SRF198808-198910

main67005-95G51iCM36,41,KM35,36,YM31..SRF..DLX198808-199201

main67005-95G51iKM31,YM31..SRF..SUP198910-199201

main67005-95G52iCM30,40,KM30,YM40..(HRF,MRF)..(LD,SW)198808-199201

main67005-95G52iCM30,31,40,KM31,36,YM31..(HRF,MRF)..(SSW,SUP)199008-199201

main67005-95G52iCM31,KM31,36..(HRF,MRF)..05S198808-199008

main67005-95G52iCM36,41,KM35,36..(HRF,MRF)..DLX198808-199201

main67005-95G53iCM36,41,KM35,36,YM31..SRF..DLX198808-199201

sub67005-95G51

sub90950-01108

main67005-95G54iCM36,41,KM35,36..(HRF,MRF)..DLX198808-199201

sub67005-95G52

sub90950-01108

main67005-95G55iCM36,41,KM35,36,YM31..SRF..DLX198808-199201

main67005-95G55iCM30,KM30..SRF198808-199201

main67005-95G56iCM30,40,KM30,YM30,40..GXL,SCA,SUC198808-199201

67751BOARD, BACK DOOR TRIM

main67750-95700-03iCM30,40,KM30,YM40..LD,SW198808-199201

GRAY,TRIM1#

sub67750-95704

main67750-95702-06iCM36,KM35,36..VSP..SRF198808-199201

SABLE,TRIM1#

main67750-95703-03iKM36..VSP..MRF198808-199201

GRAY,TRIM1#

main67750-95704-03iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

GRAY,TRIM1#

sub67750-95704

main67750-95704-15iCM30,40..SSW198910-199201

GRAY,TRIM1#

sub67750-95704

main67750-95704-15iCM30,40,KM30,YM40..LD,SW198808-199201

sub67750-95704

main67750-95704-16iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

SABLE,TRIM4#

sub67750-95704

main67750-95706-16iCM36,KM35,36..VSP..SRF198808-199201

sub67750-95706

main67750-95707-03iKM36..VSP..MRF198808-199201

sub67750-95707

main67750-95709-03iCM36,41,KM35,36,YM31..VSG..DLX198808-199201

GRAY,TRIM1#

sub67750-95710

main67750-95710-03iCM31,KM31,36,YM31..SUP198808-199201

sub67750-95710

main67750-95710-03iCM31,KM31,36,YM31..SUP198808-199201

GRAY,TRIM1#

sub67750-95710

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-07054-06iCM36,KM35,36..VSP..SRF198808-199201

SABLE,TRIM1#

sub90467-07054

67754ACOVER, BACK DOOR HOLE

main55528-30020-13iCM30,40,KM30,YM30,40198808-199201

GRAY,TRIM1#

sub55528-30020

main55528-30020-16iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

SABLE,TRIM4#

sub55528-30020

67847CCOVER, BACK DOOR SERVICE HOLE, NO.1

main67847-95700iCM30,31,40,KM30,31,36,YM3#,40..FXV,GXL,SCA,SSW,SUC,SUP198808-199201

main67847-95701iCM30,36,4#,KM30,35,36,YM31,40..DLX,LD,SW198808-199201

67881AWEATHERSTRIP, BACK DOOR

main67881-95704iCM30,36,41,KM3#,YM31..SRF198808-199201

main67881-95705iCM3#,4#,KM3#,YM3#,40..HRF,MRF198808-199201

68131GLASS, BACK DOOR

main68131-95714iCM36,41,KM35,36,YM31..SRF..DLX198808-199201

sub68131-95715

main68131-95719iCM36,41,KM35,36..(HRF,MRF)..DLX198808-199201

main68131-95721iCM36,KM35,36..VSP..SRF198808-199201

main68131-95724iCM30,40,YM30,40..FXV,GXL198808-199201

sub68131-95729

main68131-95724iCM30,40,YM30,40..GXL198912-199007

sub68131-95729

main68131-95725iCM30,36,41,KM3#,YM31..SRF198808-199201

main68131-95727iCM3#,4#,KM3#,YM31,40..(HRF,MRF)..(DLX,LD,SSW,SUP,SW)198808-199201

main68131-95728iCM30,40,KM30,YM30,40..GXL,SCA,SUC198808-199201

main68131-95729iCM30,40,YM30,40..GXL198909-198910

main68131-95729iCM30,40,YM30,40..FXV,GXL198808-199201

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-95706iCM30,36,41,KM3#,YM31..SRF198808-199201

main68291-95707iCM36,KM35,36..VSP..SRF198808-199201

main68291-95708iCM3#,4#,KM3#,YM3#,40..HRF,MRF198808-199201

7455

75403ORNAMENT SUB-ASSY, BACK DOOR

main75403-95700iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

75819CLIP, LUGGAGE COMPARTMENT DOOR MOULDING

main62955-95701iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-27010iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC199107-199201

main76801-95700iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199107

76817CLIP, BACK DOOR OUTSIDE GARNISH

main76817-95701iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

6295595700SEAL, ROOF SIDE VENT

main62955-95700

6749910010RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-10010

6777130060WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30060

9017904092

main90179-04092

9018905021

main90189-05021

9046804008

main90468-04008

9095001027

main90950-01027

9356014012

main93560-14012

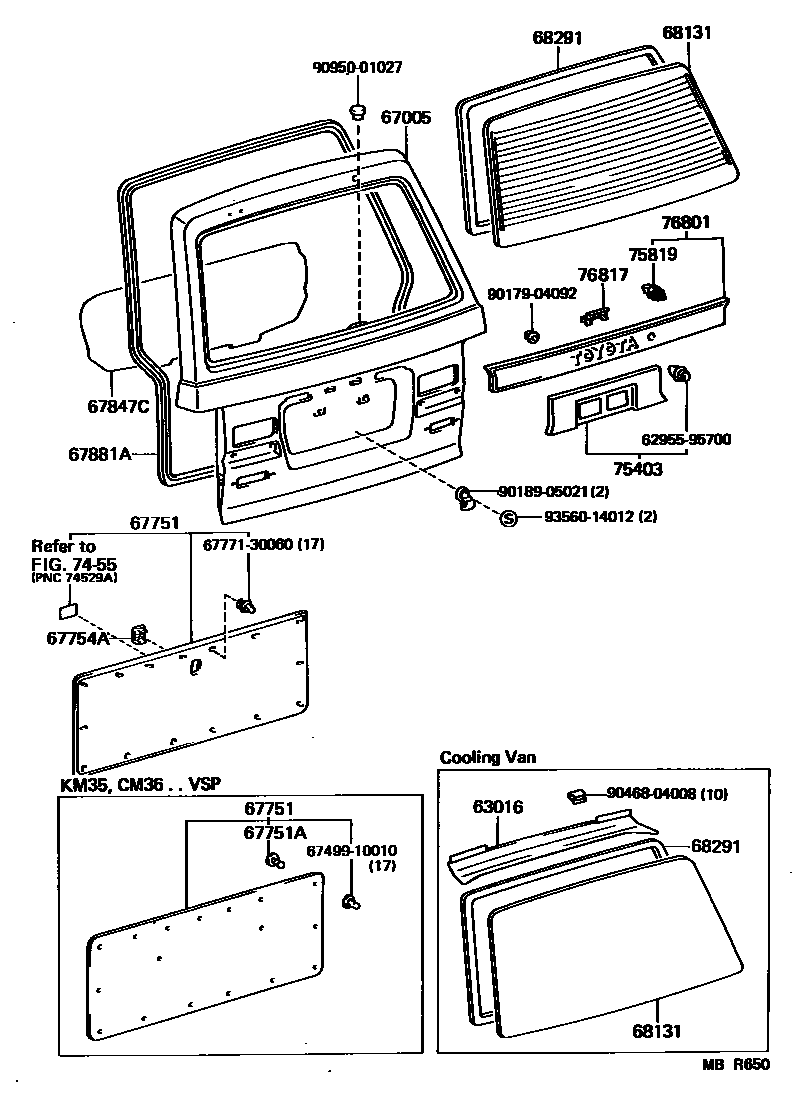

22 parts on this diagram · 1 diagram in section
