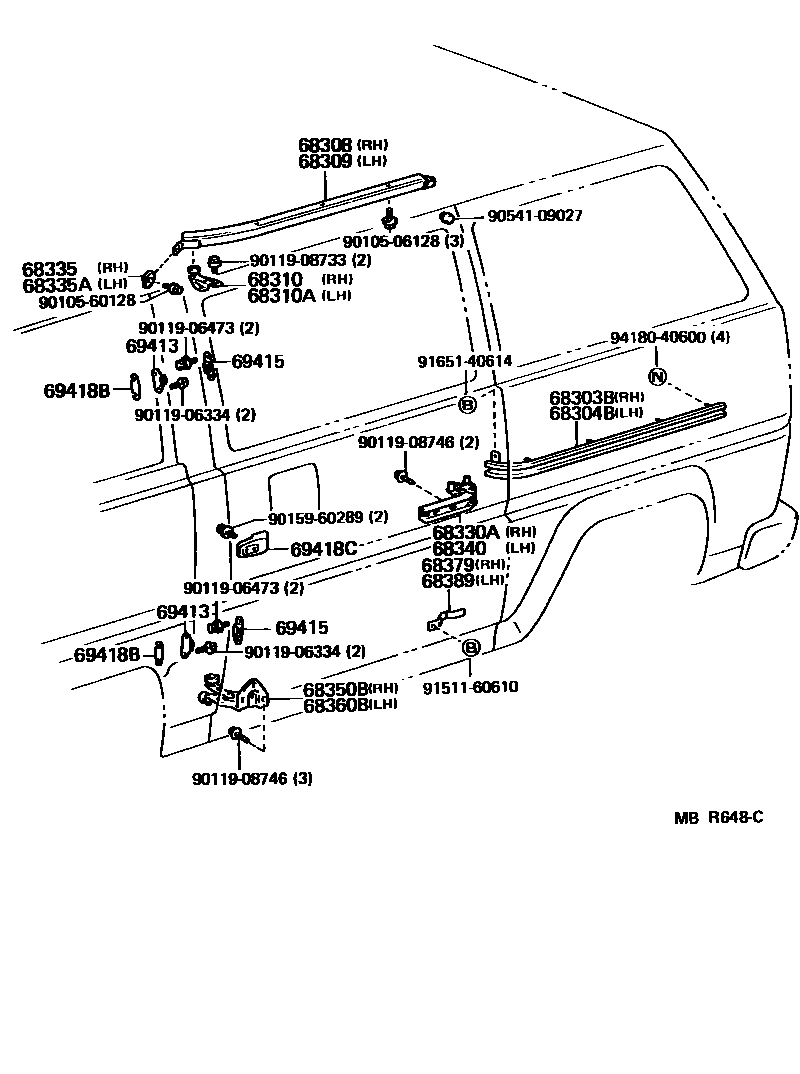

SLIDE ROLLER & RAIL

68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-95702iCM3#,4#,KM3#,YM31..V5D,W5D198808-199201

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-95702iCM3#,4#,KM3#,YM3#,40198808-199201

68308RAIL SUB-ASSY, SLIDE DOOR, UPPER RH

main68308-95701iCM3#,4#,KM3#,YM31..V5D,W5D198808-199201

68309RAIL SUB-ASSY, SLIDE DOOR, UPPER LH

main68309-95701iCM3#,4#,KM3#,YM3#,40198808-199201

68310ROLLER ASSY, SLIDE DOOR, UPPER

main68310-95703iCM3#,4#,KM3#,YM31..V5D,W5D198808-199201

68310AROLLER ASSY, SLIDE DOOR, UPPER, LH

main68310-95703iCM3#,4#,KM3#,YM3#,40198808-199201

68330AROLLER ASSY, SLIDE

main68330-95704iCM3#,4#,KM3#,YM31..V5D,W5D198808-199201

68335PAD, SLIDE DOOR UPPER RAIL

main68335-95702iCM3#,4#,KM3#,YM31..V5D,W5D198808-199201

68335APAD, SLIDE DOOR UPPER RAIL, LH

main68335-95702iCM3#,4#,KM3#,YM3#,40198808-199201

68340ROLLER ASSY, SLIDE, LH

main68340-95704iCM3#,4#,KM3#,YM3#,40198808-199201

68350BROLLER ASSY, SLIDE DOOR, LOWER RH

main68350-95704iCM3#,4#,KM3#,YM31..V5D,W5D198808-199201

68360BROLLER ASSY, SLIDE DOOR, LOWER LH

main68360-95704iCM3#,4#,KM3#,YM3#,40198808-199201

68379SPRING, SLIDE DOOR CATCH, RH

main68379-95700iCM3#,4#,KM3#,YM31..V5D,W5D198808-199201

68389SPRING, SLIDE DOOR CATCH, LH

main68389-95700iCM3#,4#,KM3#,YM3#,40198808-199201

69413STOP, SLIDE DOOR DOWN MALE

main69416-87001×2iCM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC198808-198901

main69416-87002iCM30,40,KM30,YM40..W4D..SW198901-199201

main69416-95701×2iCM31,KM31,36..V5D..05S;CM36,41,KM35,36..V4D..DLX198808-198901

main69416-95702iKM31,36..V4D..SUP198901-199201

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-87001iCM36,41,KM35,36..V5D..DLX198808-198901

main69415-87003iCM30,40,KM30,31,36,YM30,40..(V4D,W4D)..(FXV,GXL,LD,SCA,SSW,SUC,SUP)198901-199201

69418BSHIM, SLIDE DOOR DOWN STOP MALE

main69418-95700iCM3#,4#,KM3#,YM3#,40198808-199201

69418CSTOPPER, BACK DOOR MALE, LOWER

main69418-87003iCM36,4#,KM3#,YM3#,40..V4D,W4D;CM30..W4D..(FXV,GXL,LD,SUC,SW)198808-199201

9010506128

main90105-06128

9010560128

main90105-60128

9011906334

main90119-06334

9011906473

main90119-06473

9011908733

main90119-08733

9011908746

main90119-08746

9015960289

main90159-60289

9054109027

main90541-09027

9151160610

main91511-60610

9165140614

main91651-40614

9418040600

main94180-40600

29 parts on this diagram · 1 diagram in section
