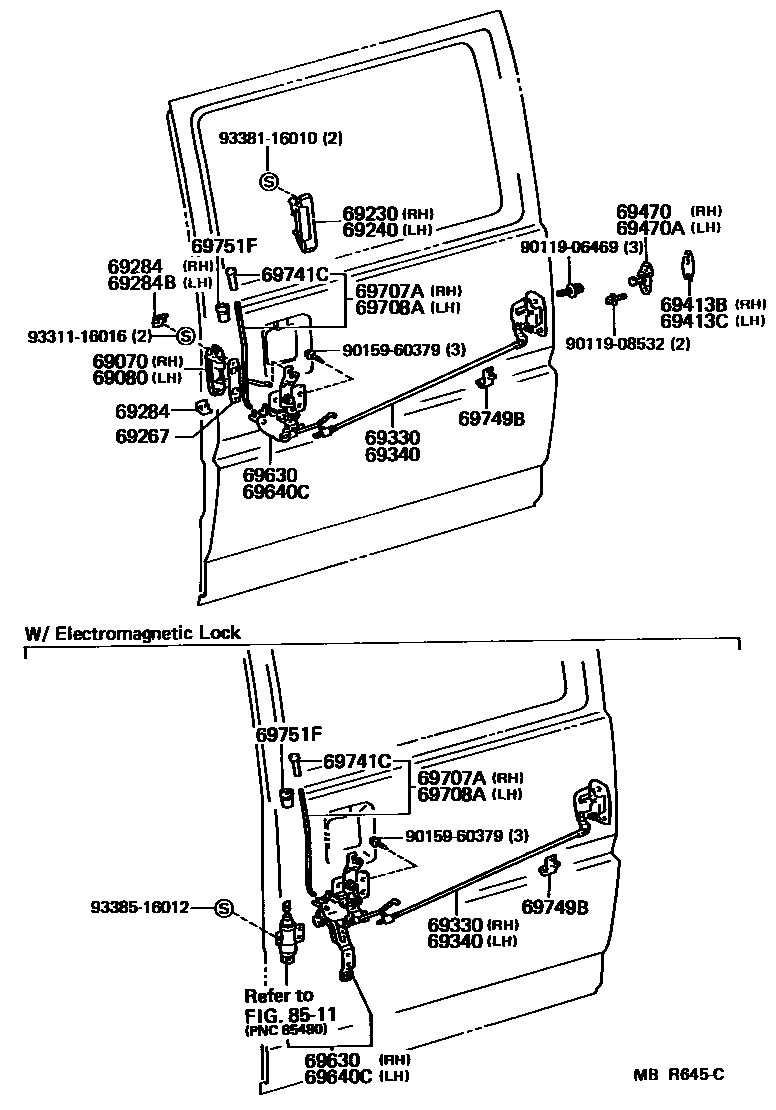

REAR DOOR LOCK & HANDLE

69070HANDLE ASSY, SLIDE DOOR, INSIDE, RH

main69070-95700-03iCM3#,4#,KM3#,YM31..V5D,W5D198808-199201

GRAY,TRIM1#

69080HANDLE ASSY, SLIDE DOOR, INSIDE, LH

main69080-95700-03iCM3#,4#,KM3#,YM3#,40198808-199201

GRAY,TRIM1#

main69080-95700-16iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

SABLE,TRIM4#

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-95J00iCM3#,4#,KM3#,YM31..V5D,W5D198808-199201

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-95701iCM30,40,YM30,40..FXV198909-198910

main69240-95J00iCM3#,4#,KM3#,YM3#,40198808-199201

69267SEAL, SLIDE DOOR INSIDE HANDLE, NO.1

main69267-87001iCM31,36,41,KM31,35,36,YM31..V5D198901-199201

69284PLUG, SLIDE DOOR INSIDE HANDLE

main69284-87001-23×2iCM3#,4#,KM3#,YM31..V5D,W5D198808-199201

GRAY,TRIM1#

69284BPLUG, SLIDE DOOR INSIDE HANDLE, LH

main69284-87001-23×2iCM3#,4#,KM3#,YM3#,40198808-199201

GRAY,TRIM1#

main69284-87001-26×2iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

SABLE,TRIM4#

69330LOCK ASSY, REAR DOOR, RH

main69330-95702iCM3#,4#,KM3#,YM31..V5D,W5D198808-199201

69340LOCK ASSY, REAR DOOR, LH

main69340-95702iCM3#,4#,KM3#,YM3#,40198808-199201

69413BSHIM, DOOR LOCK STRIKER

main69413-87002iCM3#,4#,KM3#,YM31..V5D,W5D198808-199201

sub69413-28020

69413CSHIM, DOOR LOCK STRIKER, LH

main69413-87002iCM3#,4#,KM3#,YM3#,40198808-199201

sub69413-28020

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-95701iCM3#,4#,KM3#,YM31..V5D,W5D198808-199201

69470APLATE ASSY, SLIDE DOOR LOCK STRIKER, LH

main69470-95701iCM3#,4#,KM3#,YM3#,40198808-199201

69630CONTROL ASSY, SLIDE DOOR LOCK REMOTE

main69630-95706iCM30,36,4#,KM30,35,36,YM31..(V5D,W5D)..(DLX,SW)198808-199201

main69630-95707iCM30,36,4#,KM30,35,36,YM31..(V5D,W5D)..(DLX,SW)198808-199201

69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH

main69640-95702iCM40..GXL199104-199104

main69640-95706iCM30,31,40,KM30,31,36,YM31,40..LD,SSW,SUP198808-199201

main69640-95707iCM30,36,4#,KM30,35,36,YM31,40..DLX,SW198808-199201

main69640-95708iCM30,40,KM30,YM30,40..GXL,SCA,SUC198808-199201

69707AROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, RH

main69707-95700-03iCM3#,4#,KM3#,YM31..V5D,W5D198808-199201

GRAY,TRIM1#

69708AROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, LH

main69708-95700-03iCM3#,4#,KM3#,YM3#,40198808-199201

GRAY,TRIM1#

main69708-95700-16iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

SABLE,TRIM4#

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-95703-03iCM3#,4#,KM3#,YM3#,40198808-199201

GRAY,TRIM1#

main69741-95703-16iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

SABLE,TRIM4#

69749BCLAMP, REAR DOOR LOCK LINK

main69749-95700iCM3#,4#,KM3#,YM3#,40198808-199201

69751FHOLDER, REAR DOOR LOCK CONTROL KNOB

main69751-95701-03iCM3#,4#,KM3#,YM31,40..DLX,LD,SCA,SSW,SUC,SUP,SW198808-199201

GRAY,TRIM1#

main69751-95701-16iCM30,KM30..SCA,SUC198808-199201

SABLE,TRIM4#

8511

9011906469

main90119-06469

9011908532

main90119-08532

9015960379

main90159-60379

9331116016

main93311-16016

9338116010

main93381-16010

9338516012

main93385-16012

27 parts on this diagram · 1 diagram in section
