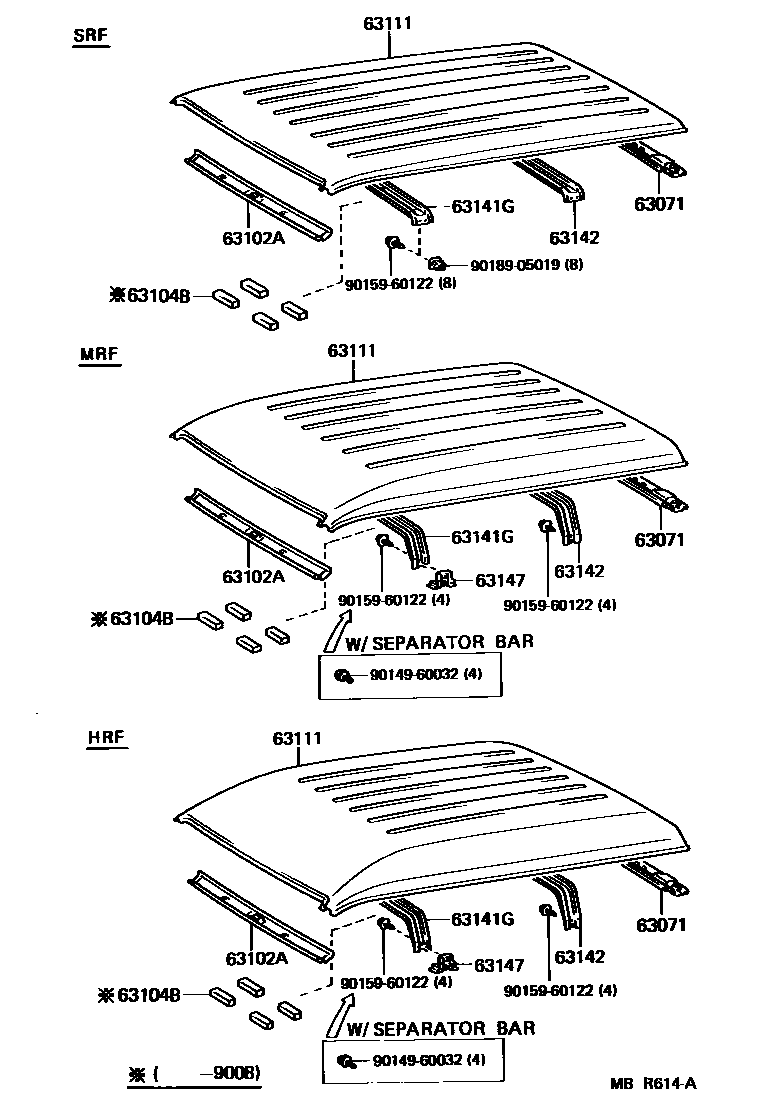

ROOF PANEL & BACK PANEL

0001 1 0002 1

63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER

main63071-95700iCM3#,4#,KM3#,YM31,40..DLX,SSW,SUP,SW198808-199201

sub63071-95703

main63071-95701iCM30..5F..GXL;CM30..(LD,SUC)..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,LD,SCA,SUC198808-199201

sub63071-95704

main63071-95702iCM30..5F..SUC..TD;CM30,40,YM30,40..FXV198808-199201

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-95706iCM3#,4#,KM3#,YM31,40..DLX,SSW,SUP,SW198808-199201

main63102-95707iCM30..5F..GXL;CM30..(LD,SUC)..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,LD,SCA,SUC198808-199201

main63102-95708iCM30..5F..SUC..TD;CM30,40,YM30,40..FXV198808-199201

63104BCUSHION, ROOF TO ROOF REINFORCEMENT

main63357-95701iCM3#,4#,KM3#,YM40..DLX,SSW,SUP,SW198808-199008

63111PANEL, ROOF

main63101-95709iCM30..5F..SUC..TD;CM30,40,YM30,40..FXV198808-199201

main63111-95710iCM30,36,41,KM3#,YM31..SRF198808-199201

main63111-95711iCM3#,KM3#,YM31..HRF198808-199201

main63111-95712iCM30..5F..GXL;CM30..MRF..DSL;CM30..4FC..(GXL,SUC);CM36,4#,KM30,35,36,YM30,40..MRF..(DLX,GXL,LD,SCA,SSW,SUC,SUP,SW)198808-199201

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63103-95705iKM36..VSP..MRF198808-199201

main63103-95706iCM30..5F..GXL;CM30..MRF..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..MRF..(GXL,LD,SCA,SUC)198808-199201

main63103-95707iCM36,41,KM35,36..VSG..MRF198808-199201

main63103-95708iCM31,36,KM31,35,36,YM31..HRF198808-199201

main63103-95709iCM31,36,KM31,35,36,YM31..HRF198808-199201

main63103-95710iCM36,41,KM31,35,36,YM31..SRF198808-199201

main63103-95711iCM36,41,KM31,35,36,YM31..SRF198808-199201

sub63103-95710

main63103-95713iCM30,KM30..SRF..LD198808-199201

main63141-95706iCM30,KM30..HRF;CM30..W5D..SRF198808-199201

main63141-95710iCM40,YM40..SSW,SW198808-199201

main63141-95716iCM30,KM30..SRF..SW198910-199201

sub63103-95710

main63141-95717iCM40,YM40..SSW,SW198910-199201

main63141-95718iCM30,KM30..HRF198910-199201

main63142-95703iCM36,KM35,36..VSP..SRF198808-199201

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-95703iCM30,36,41,KM3#,YM31..(V4D,V5D,W4D)..SRF198808-199201

main63142-95703iCM30..W5D..SRF198910-199201

main63142-95704iCM30..W5D..SRF;CM3#,KM3#,YM31..HRF198808-199201

main63142-95705iCM30..5F..GXL;CM30..MRF..DSL;CM30..4FC..(GXL,SUC);CM36,4#,KM30,35,36,YM30,40..MRF..(DLX,GXL,LD,SCA,SSW,SUC,SUP,SW)198808-199201

63147BRACKET, ROOF PANEL REINFORCEMENT

main63147-95703iCM30,40,KM30..W5D..(HRF,MRF)198910-199201

main63147-95704iCM31,36,41,KM31,35,36,YM31..V5D..(HRF,MRF)198808-199201

main63148-95701iCM30..5F..GXL;CM30..4FC..(GXL,SUC);CM30..(HRF,MRF)..DSL;CM40,KM30,YM30,40..(HRF,MRF)..(GXL,LD,SCA,SSW,SUC,SW)198808-199201

main63148-95702iCM31,36,41,KM31,35,36,YM31..HRF,MRF198808-199201

9014960032

main90149-60032

9015960122

main90159-60122

9018905019

main90189-05019

10 parts on this diagram · 2 diagrams in section
