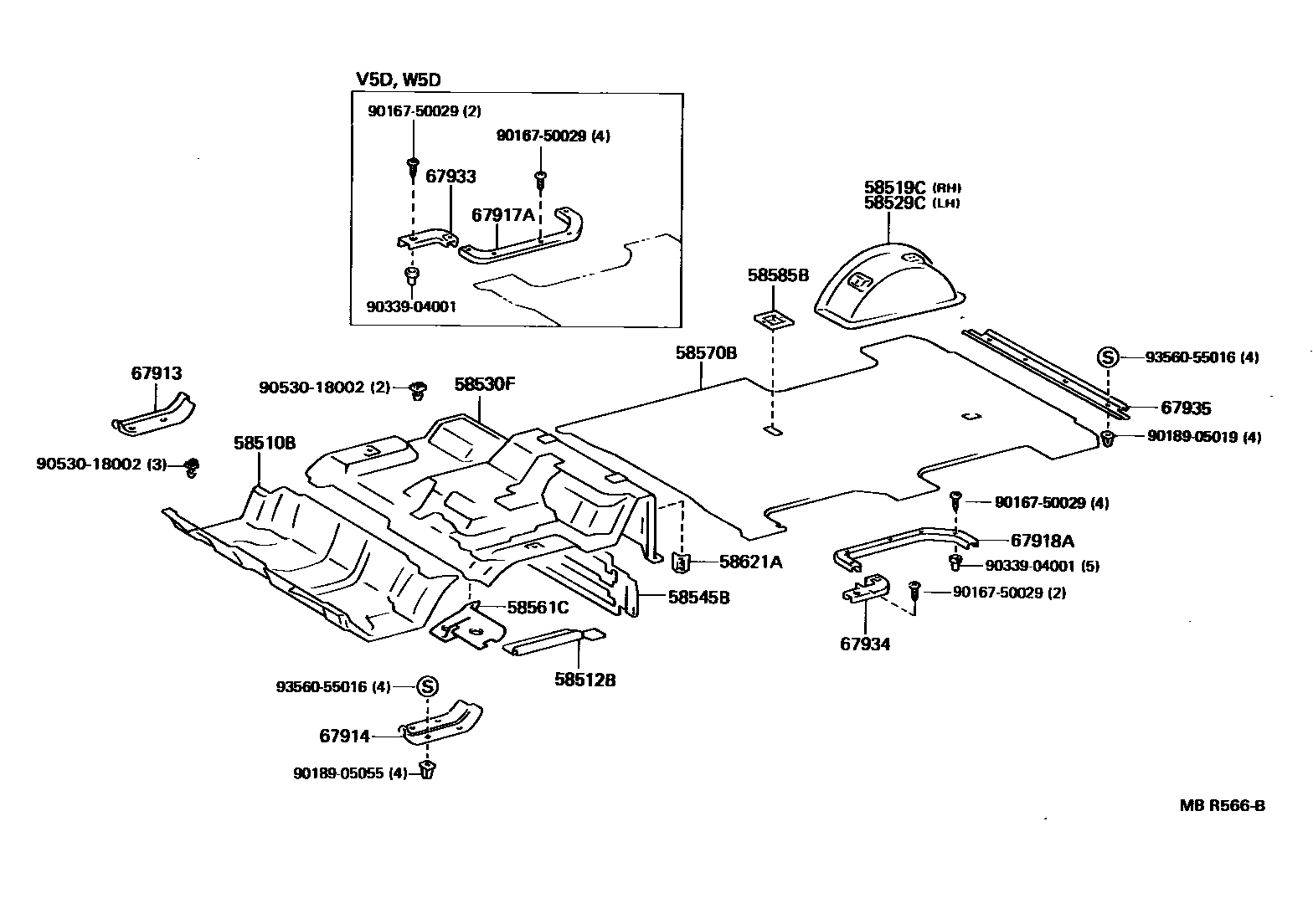

FLOOR MAT & SILENCER PAD

0001 1 0002 1

58510BMAT, FRONT FLOOR, FRONT

main58510-95700-03iCM30,36,4#,KM30,36,YM31,40..(3FC,4FC,5F)..(DLX,SW)198808-199201

GRAY,TRIM1#

sub58510-95700

main58510-95701-03iCM30,40,YM40..LD198808-199201

GRAY,TRIM1#

main58510-95706-03iKM30,35,36..MTM..(DLX,SW)198808-199201

GRAY,TRIM1#

sub58510-95706

main58510-95707-03iKM30..LD198808-199201

GRAY,TRIM1#

58512BMAT, FLOOR, FRONT LH

main58512-95703-03iCM3#,4#,KM3#,YM3#,40198808-199201

GRAY,TRIM1#

sub58512-95703

main58512-95703-16iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

SABLE,TRIM4#

sub58512-95703

58519CCARPET, REAR WHEEL HOUSE, RH

main58519-95705-03iKM30..SCA198808-199201

GRAY,TRIM1#

main58519-95705-16iKM30..SCA198808-199201

SABLE,TRIM4#

main58580-95700-03iCM30,40,YM30,40..GXL198808-199201

GRAY,TRIM1#

main58580-95700-16iCM30,40,YM30,40..GXL198808-199201

SABLE,TRIM4#

main58580-95701-03iCM30,40,YM30,40..FXV198808-199201

GRAY,TRIM1#

main58580-95701-16iCM30,40,YM30,40..FXV198808-199201

SABLE,TRIM4#

main62613-95710-03iCM30,KM30..SUC198808-199201

GRAY,TRIM1#

sub62613-95710

main62613-95710-26iCM30,KM30..SUC198808-199201

SABLE,TRIM4#

sub62613-95710

main62613-95711-03iCM30,40,KM30,YM40..LD198808-199201

GRAY,TRIM1#

sub62613-95711

58529CCARPET, REAR WHEEL HOUSE, LH

main58519-95705-03iKM30..SCA198808-199201

GRAY,TRIM1#

main58519-95705-16iKM30..SCA198808-199201

SABLE,TRIM4#

main58590-95700-03iCM30,40,YM30,40..GXL198808-199201

GRAY,TRIM1#

main58590-95700-16iCM30,40,YM30,40..GXL198808-199201

SABLE,TRIM4#

main58590-95701-03iCM30,40,YM30,40..FXV198808-199201

GRAY,TRIM1#

main58590-95701-16iCM30,40,YM30,40..FXV198808-199201

SABLE,TRIM4#

main62614-95710-03iCM30,KM30..SUC198808-199201

GRAY,TRIM1#

sub62614-95710

main62614-95710-26iCM30,KM30..SUC198808-199201

SABLE,TRIM4#

sub62614-95710

main62614-95711-03iCM30,40,KM30,YM40..LD198808-199201

GRAY,TRIM1#

sub62614-95711

58530FMAT ASSY, HEADER

main58530-95746-03iKM30..3FC..SW198808-199201

GRAY,TRIM1#

main58530-95747-03iKM30..MTM..(LD,SW)198808-199201

GRAY,TRIM1#

main58530-95748-03iKM36..SRF..3FC199008-199201

GRAY,TRIM1#

main58530-95749-03iKM36..MRF..3FC..DLX199008-199201

GRAY,TRIM1#

main58530-95759-03iCM30,40,YM40..LD,SW198808-199201

GRAY,TRIM1#

sub58530-95759

main58530-95764-03iCM30,40..LD,SW198808-199201

main58530-95G11-03iKM35,36..V1..MTM198808-199201

GRAY,TRIM1#

main58530-95G12-03iKM35,36..MRF..MTM..DLX198808-199201

GRAY,TRIM1#

main58530-95G13-03iCM36,41,YM31..V1..DLX198808-199201

GRAY,TRIM1#

main58530-95G14-03iCM36,41..V1198808-199201

main58530-95G19-03iCM36..MRF198808-199201

GRAY,TRIM1#

main58530-95G20-03iCM36..MRF198808-199201

main58530-95G22-03iCM36..VSP198808-199201

main58530-95G35-03iKM35,36..VSP..SRF198808-199201

58545BSILENCER, HEADER PANEL

main58545-95714iKM30,31;KM35,36..V1198808-199201

main58545-95715iKM35,36..MRF198808-199201

main58545-95716iCM36..V1;CM30,31,YM3#198808-199201

main58545-95717iCM36..MRF198808-199201

main58545-95718iCM4#,YM40198808-199201

58561CSILENCER, FRONT FLOOR, NO.1

main58561-95700iCM40..W5D..5F..SW;CM30,KM30,YM30..3FC,4FC,5F198808-199201

main58561-95701iCM41,YM40;CM40..4FC;CM40..W4D..5F;CM40..W5D..5F..SSW198808-199201

58570BMAT ASSY, REAR FLOOR

main58570-95777-03iCM30,40,YM40..LD198808-199201

main58570-95778-03iKM30..LD198808-199201

main58570-95784-03iCM36,41,YM31..V1..V4D..05S198808-199201

GRAY,TRIM1#

main58570-95785-03iCM36..V5D..MRF..05S198808-199201

GRAY,TRIM1#

main58570-95786-03iKM35,36..V1..V4D..(05S,06S)198808-199201

GRAY,TRIM1#

main58570-95787-03iKM35,36..V4D..SRF..03S198808-199201

GRAY,TRIM1#

main58570-95788-03iKM35,36..V1..V5D..(05S,06S)198808-199201

GRAY,TRIM1#

main58570-95789-03iKM35,36..V5D..SRF..03S198808-199201

GRAY,TRIM1#

main58570-95G00-03iKM35,36..V4D..VSG..MRF..DLX198808-199201

GRAY,TRIM1#

main58570-95G01-03iKM35,36..VSG..MRF..03S198808-199201

GRAY,TRIM1#

main58570-95G02-03iKM36..VSP..MRF198808-199201

GRAY,TRIM1#

main58570-95G03-03iCM36,41..V1..V4D..02S198808-199201

GRAY,TRIM1#

main58570-95G04-03iCM36,41..V1..V5D..02S198808-199201

GRAY,TRIM1#

main58570-95G05-03iCM36..V4D..MRF..05S198808-199201

GRAY,TRIM1#

main58570-95G06-03iCM36..V4D..MRF..02S198808-199201

GRAY,TRIM1#

main58570-95G07-03iCM36..V5D..MRF..02S198808-199201

GRAY,TRIM1#

main58570-95G08-03iKM35,36..V5D..MRF..DLX..(05S,06S)198808-199201

GRAY,TRIM1#

main58570-95G09-03iCM36,41,YM31..V1..V5D..DLX..05S198808-199201

GRAY,TRIM1#

main58570-95G10-03iKM30..W4D..SW198808-199201

GRAY,TRIM1#

main58570-95G11-03iCM30,40,YM40..W4D..SW198808-199201

GRAY,TRIM1#

main58570-95G12-03iKM30..LD198808-199201

GRAY,TRIM1#

main58570-95G13-03iCM30,40,YM40..LD198808-199201

GRAY,TRIM1#

main58570-95G22-03iKM30..W5D198910-199201

GRAY,TRIM1#

main58570-95G23-03iCM30,40..W5D..SW198910-199201

GRAY,TRIM1#

58585BCOVER, REAR FLOOR SEAT LOCK

main58585-95705-03iCM30,40,KM30,YM40..LD198808-199201

GRAY,TRIM1#

main58585-95706-03iCM30,40,KM30,YM30,40..GXL,SSW,SUC198808-198911

main58585-95706-03iCM30,40,YM30,40..GXL198808-198911

GRAY,TRIM1#

main58585-95706-16iCM30,40,YM30,40..GXL198808-198911

main58585-95706-16iCM30,40,KM30,YM30,40..GXL,SUC198808-198911

SABLE,TRIM4#

main58585-95707-03iCM30,40,YM30,40..FXV198808-198911

GRAY,TRIM1#

main58585-95707-16iCM30,40,YM30,40..FXV198808-198911

SABLE,TRIM4#

main58585-95708-03iCM30,40,KM30,YM30,40..FXV,GXL,SSW,SUC198911-199201

main58585-95708-03iCM30,40,YM30,40..GXL198911-199201

GRAY,TRIM1#

main58585-95708-06iCM30,40,YM30,40..GXL198911-199201

SABLE,TRIM4#

main58585-95708-06iCM30,40,KM30,YM30,40..FXV,GXL,SUC198911-199201

58621APLATE, MAT SET, NO.1 LH

main58621-95706iCM30,36,4#,KM3#,YM3#,40..V4D,W4D198808-199201

67913PLATE, FRONT DOOR SCUFF, RH

main67913-95702-13iCM3#,4#,KM3#,YM3#,40198808-199201

GRAY,TRIM1#

sub67913-27010

main67913-95702-16iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

SABLE,TRIM4#

sub67913-27010

67914PLATE, FRONT DOOR SCUFF, LH

main67914-95702-13iCM3#,4#,KM3#,YM3#,40198808-199201

GRAY,TRIM1#

sub67914-27010

main67914-95702-16iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

SABLE,TRIM4#

sub67914-27010

67917APLATE, REAR DOOR SCUFF, RH

main67917-95705iCM3#,4#,KM3#,YM31..V5D,W5D198808-199201

67918APLATE, REAR DOOR SCUFF, LH

main67918-95700iCM3#,4#,KM3#,YM31,40..DLX,SSW,SUP,SW198808-199201

main67918-95704-03iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

GRAY,TRIM1#

main67918-95704-16iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

SABLE,TRIM4#

main67918-95705-03iCM30,40,KM30,YM40..LD198808-199201

GRAY,TRIM1#

main67918-95705-03iCM30,40,KM30,YM40..LD198808-199201

main67918-95705-16iCM30,40,YM30,40..GXL198808-199201

67933PLATE, QUARTER SCUFF, INNER RH

main67933-95700-03iCM3#,4#,KM3#,YM31..V5D,W5D198808-199201

GRAY,TRIM1#

67934PLATE, QUARTER SCUFF, INSIDE LH

main67934-95700-03iCM3#,4#,KM3#,YM31,40..DLX,SSW,SUP,SW198808-199201

GRAY,TRIM1#

67935PLATE, BACK DOOR SCUFF

main67935-95703iCM36,KM35,36..V1;CM30,31,4#,KM30,31,YM31,40..DLX,LD,SSW,SUP,SW198808-199201

main67935-95704iCM36,KM35,36..MRF198808-199201

main67935-95705iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

9016750029

main90167-50029

9018905019

main90189-05019

9018905055

main90189-05055

9033904001

main90339-04001

9053018002

main90530-18002

9356055016

main93560-55016

23 parts on this diagram · 2 diagrams in section
