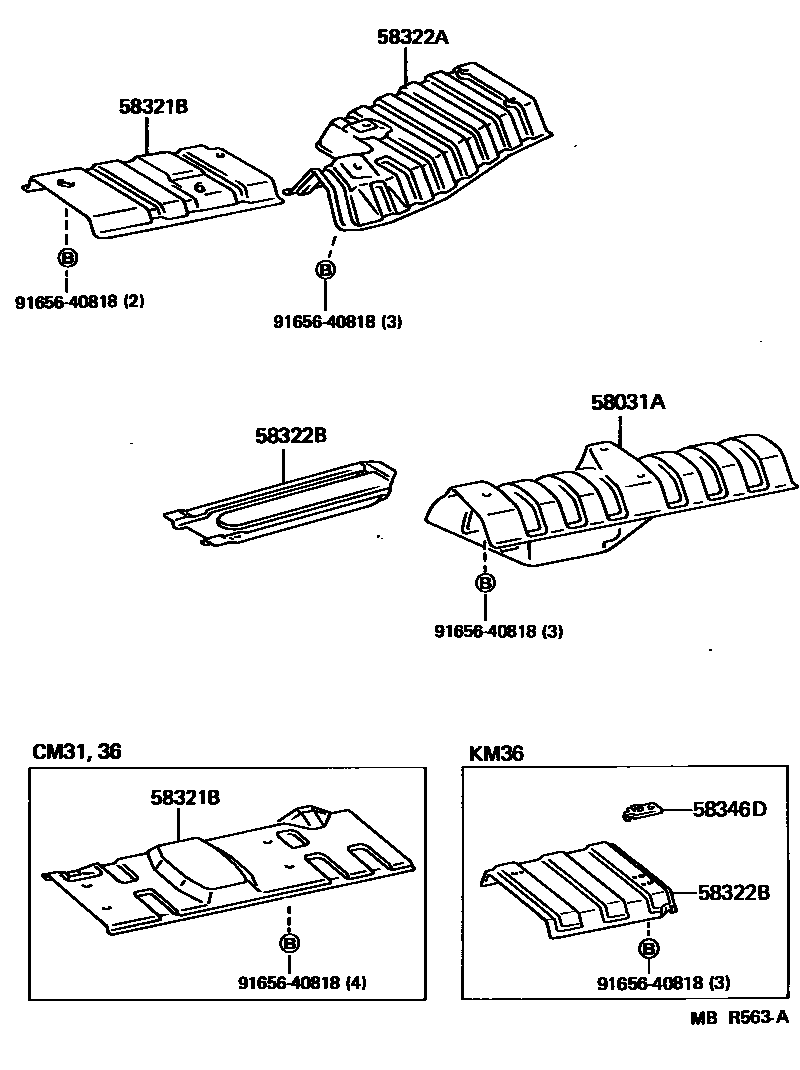

FLOOR INSULATOR

58031AINSULATOR SUB-ASSY, MAIN MUFFLER HEAT

main58031-95700iCM30,4#,KM30,YM30,40198808-199201

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58321-95703iCM31,36..V1198808-199201

main58321-95704iKM30,YM30,40198808-199201

main58321-95707iKM31,35,36..V1198808-199008

58322AINSULATOR, REAR FLOOR HEAT, REAR

main58321-95705iKM30,YM30,40198808-199201

58322BINSULATOR, REAR FLOOR HEAT, NO.2

main58322-95701iCM41,KM30,YM30,40198808-199201

main58322-95702iKM36..MRF199008-199201

58346DBRACKET, REAR FLOOR HEAT INSULATOR, NO.2

main58346-27010iKM36..MRF199008-199201

9165640818

main91656-40818

6 parts on this diagram · 1 diagram in section
