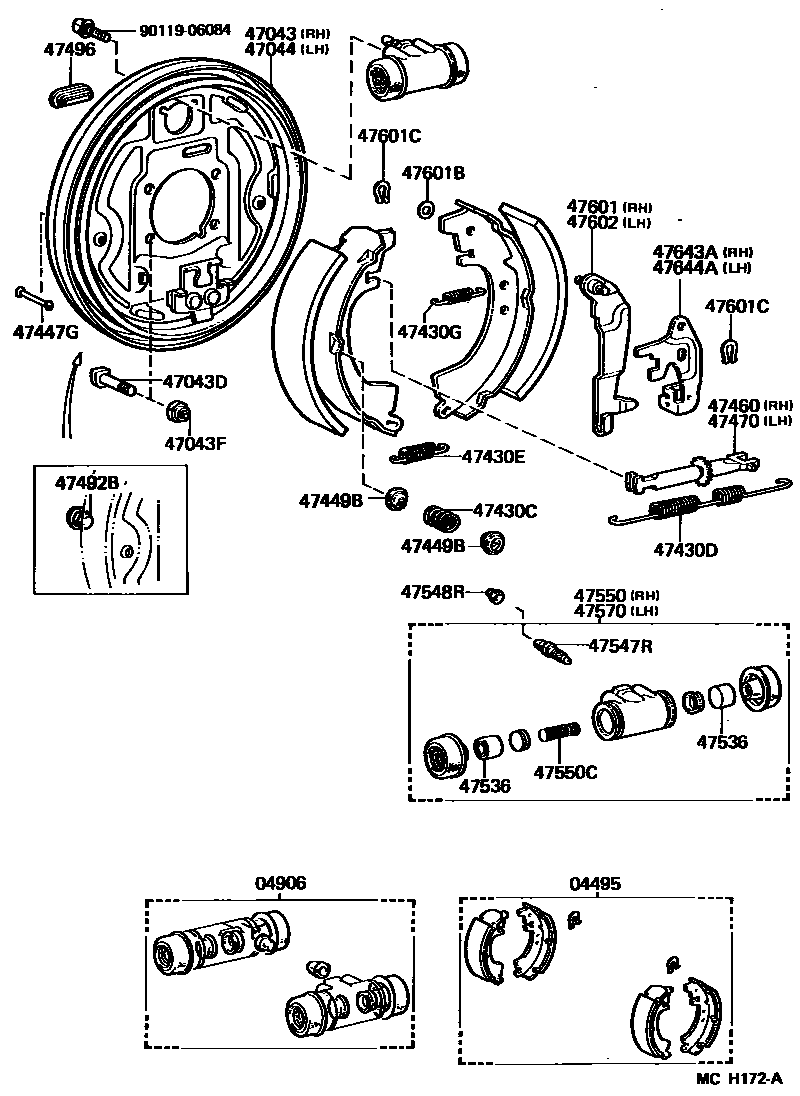

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-20050iCM3#,KM3#,YM30198808-198809

sub04495-20051

main04495-20051iCM3#,KM3#,YM30198809-198910

sub04495-0W010

main04495-27041iCM3#,KM3#,YM3#198910-199201

main04495-28040iCM4#,YM40198808-198809

sub04495-28041

main04495-28041iCM4#,YM40198809-198910

sub04495-30090

main04495-28061iCM4#,YM40198910-199201

main04497-20030iCM3#,KM3#,YM30198808-198809

sub04497-20031

main04497-20031iKM30198809-198910

main04497-27030iCM3#,KM3#,YM3#198910-199201

main04497-28040iCM4#,YM40198808-198809

sub04497-28041

main04497-28041iCM4#,YM40198809-198910

04906CUP KIT, REAR WHEEL CYLINDER

main04906-12040iCM3#,KM3#,YM3#198808-199201

main04906-30080iCM4#,YM40198808-199201

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-27080iCM36,KM35,36..MRF198808-199201

main47043-28050iCM4#,YM40198808-199201

main47043-28060iCM36,KM35,36..V1;CM30,31,KM30,31,YM3#198808-199201

47043DBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-22011iCM3#,KM3#,YM3#198808-199201

main42184-30021iCM4#,YM40198808-199201

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10030iCM4#,YM40198808-199201

main94181-11000iCM3#,KM3#,YM3#198808-199201

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-27080iCM36,KM35,36..MRF198808-199201

main47044-28050iCM4#,YM40198808-199201

main47044-28060iCM36,KM35,36..V1;CM30,31,KM30,31,YM3#198808-199201

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-18017iCM3#,KM3#,YM3#198808-199201

main90501-20756iCM4#,YM40198808-199201

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23003iCM4#,YM40198808-199201

main90506-23375iCM3#,KM3#,YM3#198808-199201

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23030iCM4#,YM40198808-199201

main90506-23346iCM3#,KM3#,YM3#198808-199201

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12011iCM3#,KM3#,YM3#198808-199201

main90506-12480iCM4#,YM40198808-199201

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20030iCM3#,KM3#,YM3#198808-199201

main47447-30020iCM4#,YM40198808-199201

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iCM3#,4#,KM3#,YM3#,40198808-199201

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-14040iCM3#,KM3#,YM3#198808-199201

main47062-30040iCM4#,YM40198808-199201

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47061-30040iCM4#,YM40198808-199201

main47062-14040iCM3#,KM3#,YM3#198808-199201

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010iCM3#,4#,KM3#,YM3#,40198808-199201

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iCM3#,4#,KM3#,YM3#,40198808-199201

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-22040iCM3#,4#,KM3#,YM3#,40198808-199201

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iCM3#,KM3#,YM3#198808-199201

main47547-20030iCM4#,YM40198808-199201

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iCM3#,4#,KM3#,YM3#,40198808-199201

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-12060iCM3#,KM3#,YM3#198808-199201

main47550-30120iCM4#,YM40198808-199201

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-12020iCM3#,KM3#,YM3#198808-199201

main47509-22010iCM4#,YM40198808-199201

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-12060iCM3#,KM3#,YM3#198808-199201

main47550-30120iCM4#,YM40198808-199201

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-14010iCM3#,KM3#,YM3#198808-199201

main47601-28010iCM4#,YM40198808-199201

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150iCM3#,KM3#,YM3#198808-199201

main90564-08151iCM3#,KM3#,YM3#198808-199201

main90564-08152iCM3#,KM3#,YM3#198808-199201

main90564-08172iCM3#,KM3#,YM3#198808-199201

main90564-08173iCM3#,KM3#,YM3#198808-199201

main90564-08174iCM3#,KM3#,YM3#198808-199201

main90564-09001iCM4#,YM40198808-199201

main90564-09002iCM4#,YM40198808-199201

main90564-09003iCM4#,YM40198808-199201

main90564-09184iCM4#,YM40198808-199201

main90564-09185iCM4#,YM40198808-199201

main90564-09186iCM4#,YM40198808-199201

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iCM4#,YM40198808-199201

main90213-07010iCM4#,YM40198808-199201

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-14010iCM3#,KM3#,YM3#198808-199201

main47602-28010iCM4#,YM40198808-199201

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-20020iCM3#,KM3#,YM3#198808-199201

main47644-30010iCM4#,YM40198808-199201

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47643-30010iCM4#,YM40198808-199201

main47644-20020iCM3#,KM3#,YM3#198808-199201

9011906084

main90119-06084
