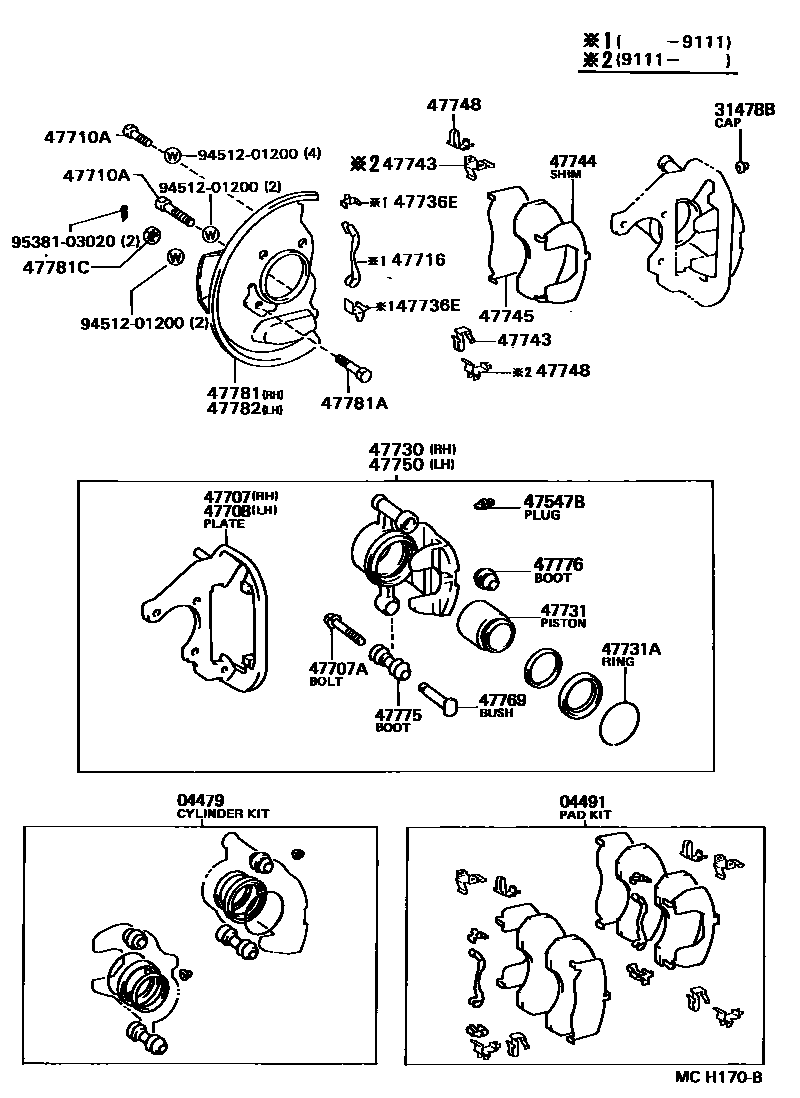

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-27010iCM3#,4#,KM3#,YM3#,40198808-199201

04491PAD KIT, DISC BRAKE, FRONT

main04491-27080iCM3#,KM3#,YM30198808-198910

main04491-27081iCM3#,KM3#,YM3#198910-199201

sub04491-28260

main04491-27110iCM4#,YM40198808-198910

main04491-27120iCM4#,YM40198910-199201

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iCM3#,4#,KM3#,YM3#,40198808-199201

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iCM3#,4#,KM3#,YM3#,40198808-199201

47707PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH

main47707-27010iCM4#,YM40198808-199201

main47707-27040iCM3#,KM3#,YM3#198808-199201

47707ABOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)

main90119-08384×2iCM3#,4#,KM3#,YM3#,40198808-199201

47708PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH

main47708-27010iCM4#,YM40198808-199201

main47708-27040iCM3#,KM3#,YM3#198808-199201

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12010×2iCM3#,KM3#,YM3#198808-199201

main90101-12030×4iCM3#,KM3#,YM3#198808-199201

main90101-12123×4iCM4#,YM40198808-199201

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-28020×2iCM3#,4#,KM3#,YM3#,40198808-199111

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-27020iCM4#,YM40198808-199201

main47730-27060iCM3#,KM3#,YM3#198808-199201

47731PISTON, FRONT DISC BRAKE

main47731-14090×2iCM3#,4#,KM3#,YM3#,40198808-199201

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-69002×2iCM3#,4#,KM3#,YM3#,40198808-199201

47736EPLATE, FRONT DISC BRAKE PAD GUIDE, NO.1

main47736-14030×4iCM3#,4#,KM3#,YM3#,40198808-199111

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-14040×2iCM3#,4#,KM3#,YM3#,40198808-199111

main47743-28010×2iCM3#,4#,KM3#,YM3#,40199111-199201

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-14070×2iCM4#,YM40198808-199201

main47744-28010×2iCM3#,KM3#,YM3#198808-199201

sub47744-28020

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47744-27020×2iCM4#,YM40198808-199201

main47744-28030×2iCM3#,KM3#,YM3#198910-199201

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-14050×2iCM3#,4#,KM3#,YM3#,40198808-199111

main47748-28010×2iCM3#,4#,KM3#,YM3#,40199111-199201

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-27020iCM4#,YM40198808-199201

main47750-27060iCM3#,KM3#,YM3#198808-199201

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-28010×2iCM3#,4#,KM3#,YM3#,40198808-199201

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-17010×2iCM3#,4#,KM3#,YM3#,40198808-199201

47776BOOT, MAIN PIN(FOR FRONT DISC BRAKE)

main47776-14010×2iCM3#,4#,KM3#,YM3#,40198808-199201

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-28050iCM3#,KM3#,YM3#198808-199201

main47781-28080iCM4#,YM40198808-199201

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90102-12001×2iCM3#,KM3#,YM3#198808-199201

47781CNUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main94145-71200×2iCM3#,KM3#,YM3#198808-199201

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-28050iCM3#,KM3#,YM3#198808-199201

main47782-28080iCM4#,YM40198808-199201

9451201200

main94512-01200

9538103020

main95381-03020

27 parts on this diagram · 3 diagrams in section
