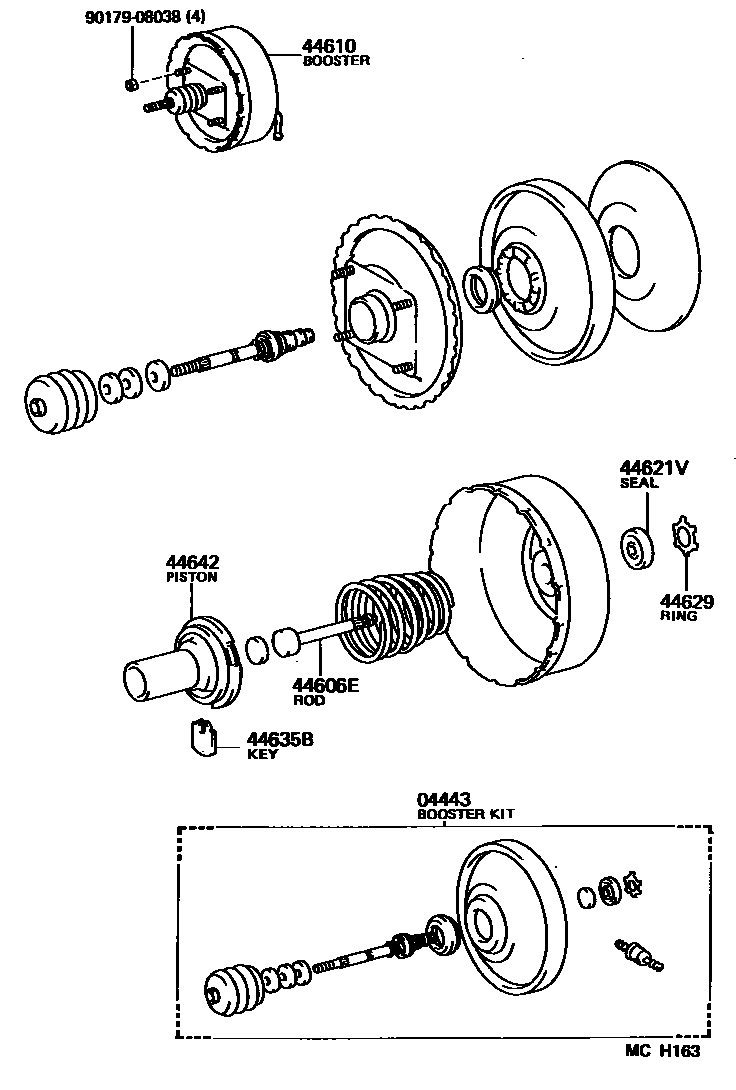

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

04443BOOSTER KIT, BRAKE

main04443-27360iKM36..4H,5F;KM36..3FC..SUP;KM30,31,35,YM30..(V4D,V5D,W4D)..(3FC,4FC,4H,5F)¥13,200198808-199201

main04443-27390iYM40¥13,200198808-199201

main04443-27400iCM4#..(V4D,V5D,W4D)..(DLX,FXV,GXL,LD,SW)¥13,200198808-199201

main04443-28420iCM3#..(V4D,V5D,W4D)..(DLX,FXV,GXL,LD,SUC,SUP,SW)¥13,200198808-199201

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-12520iCM3#,4#,KM3#,YM3#,40¥2,660198808-199201

44610BOOSTER ASSY, BRAKE

main44610-27340iCM3#,KM3#,YM3#¥45,700198808-199201

main44610-27360iCM4#,YM40¥45,700198808-199201

44621VSEAL, BOOSTER BODY

main44621-28120iCM3#,4#,KM3#,YM3#,40¥590198808-199201

44629RING, CIRCULAR INTERNAL

main44628-28120iCM3#,4#,KM3#,YM3#,40¥390198808-199201

44635BKEY, VALVE STOPPER

main44635-12630iCM3#,4#,KM3#,YM3#,40¥410198808-199201

44642PISTON, BRAKE BOOSTER

main44642-32010iCM3#,KM3#,YM3#¥6,100198808-199201

main44642-32030iCM4#,YM40¥5,900198808-199201

9017908038

main90179-08038¥130

8 parts on this diagram · 3 diagrams in section
