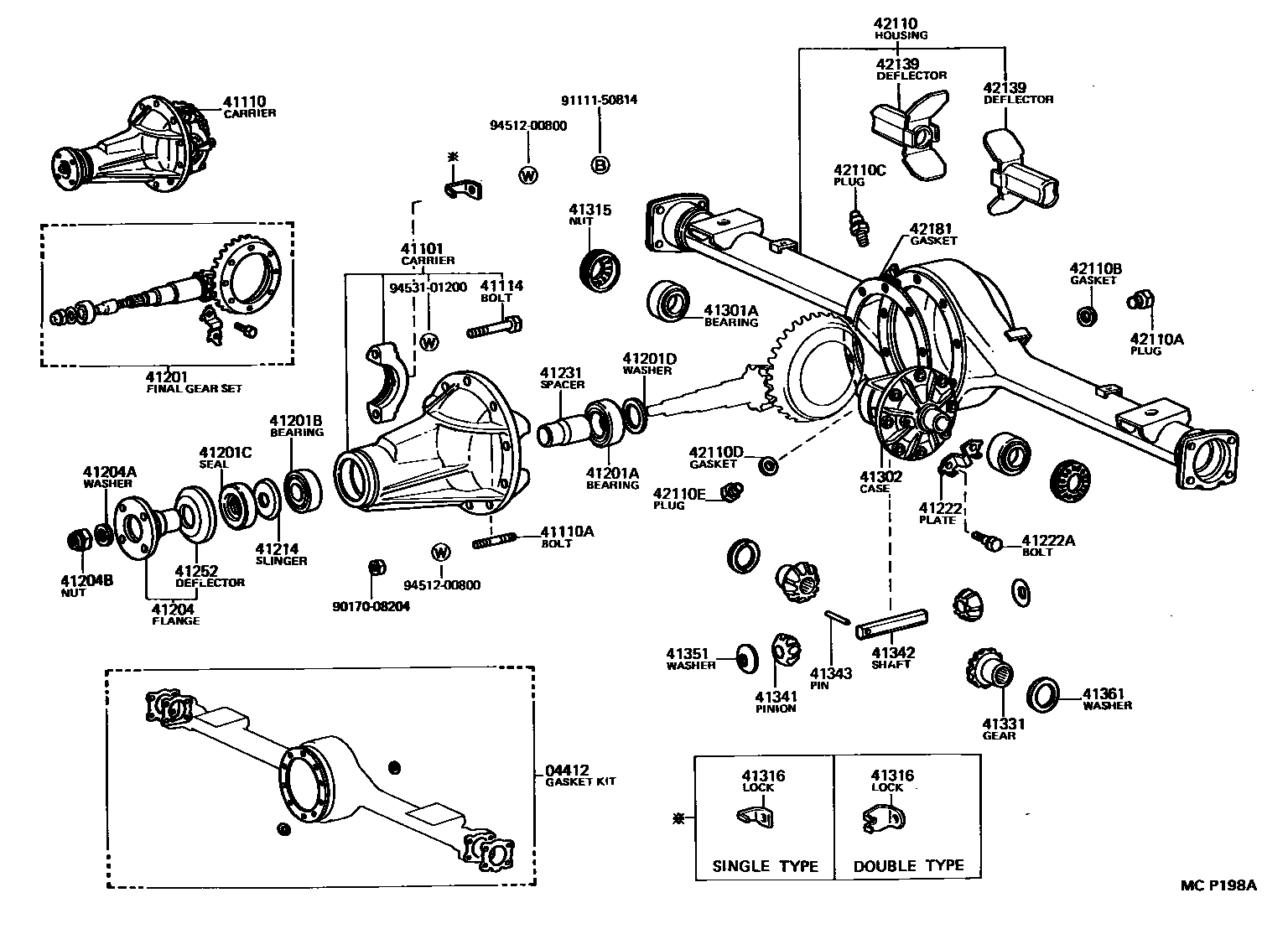

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1

04412GASKET KIT, REAR DIFFERENTIAL CARRIER

main04412-20030iCM3#,KM3#,YM30198808-199201

main04412-30020iCM4#,YM40198808-199201

sub04412-30060

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-30010iCM3#,KM3#,YM3#198808-199201

main41101-30031iCM4#,YM40198808-199201

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-20241iCM30,KM36,YM30..MRF..MTM..(CBR,TD)198808-199201

main41110-21020iKM36..3FC;CM36..V1..5F;CM30,31,KM30..MTM..(CBR,DSL);CM30,KM35,YM30..MRF..(4FC,4H)198808-199201

main41110-22110iKM36..MRF..3FC;KM31,36..V1..MTM;CM31,36,KM30..ATM198808-199101

sub41110-27120

main41110-22240iCM36..MRF198808-199201

main41110-27030iKM36..SRF..3FC;KM31,35..V1..(3FC,4H)198808-199201

sub41110-27100

main41110-27120iKM36..MRF..3FC;KM31,36..V1..MTM;CM31,36,KM30..ATM199101-199201

main41110-28070iYM40..5F198808-199201

main41110-28080iCM40;YM40..4FC198808-199201

main41110-28090iCM41198808-199201

main41110-28100iYM40..5F198808-199201

main41110-28110iCM40;YM40..4FC198808-199201

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-08235iCM3#,4#,KM3#,YM3#,40198808-199201

sub90116-08418

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90101-12376iCM3#,4#,KM3#,YM3#,40198808-199201

main90105-12053iCM4#,YM40199102-199201

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29217iKM36..3FC;CM36..V1..5F;CM30,31,KM30..MTM..(CBR,DSL);CM30,KM35,YM30..MRF..(4FC,4H)198808-199201

main41201-29307iKM36..SRF..3FC;KM31,35..V1..(3FC,4H)198808-199201

sub41201-29865

main41201-29765iCM36..MRF198808-199201

main41201-39287iKM36..MRF..3FC;KM31,36..V1..MTM;CM31,36,KM30..ATM198808-199101

sub41201-80020

main41201-39298iCM41198808-198908

sub41201-80017

main41201-39555iCM30,KM36,YM30..MRF..MTM..(CBR,TD)198808-199201

main41201-39875iCM40;YM40..4FC198808-198908

sub41201-39876

main41201-39876iCM40;YM40..4FC198908-199201

sub41201-80015

main41201-80004iYM40..5F198808-199201

main41201-80017iCM41198908-199201

sub41201-80030

main41201-80020iKM36..MRF..3FC;KM31,36..V1..MTM;CM31,36,KM30..ATM199101-199201

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35023iCM4#,YM40198808-199008

main90366-35031iCM3#,KM3#,YM3#198808-199201

sub90366-35064

main90366-35073iCM4#,YM40199008-199201

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30022iCM3#,4#,KM3#,YM30,40198808-199201

sub90366-30078

main90366-30055iCM4#,YM40199008-199201

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38133iCM3#,4#,KM3#,YM3#,40198808-199201

sub90311-38047

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35396iCM3#,4#,KM3#,YM3#,40198808-199201

main90201-35397iCM3#,4#,KM3#,YM3#,40198808-199201

main90201-35398iCM3#,4#,KM3#,YM3#,40198808-199201

main90201-35399iCM3#,4#,KM3#,YM3#,40198808-199201

main90201-35400iCM3#,4#,KM3#,YM3#,40198808-199201

main90201-35401iCM3#,4#,KM3#,YM3#,40198808-199201

main90201-35402iCM3#,4#,KM3#,YM3#,40198808-199201

main90201-35403iCM3#,4#,KM3#,YM3#,40198808-199201

main90201-35404iCM3#,4#,KM3#,YM3#,40198808-199201

main90201-35434iCM3#,4#,KM3#,YM3#,40198808-199201

sub90201-35515

main90201-35435iCM3#,4#,KM3#,YM3#,40198808-199201

sub90201-35516

main90201-35436iCM3#,4#,KM3#,YM3#,40198808-199201

sub90201-35517

main90201-35437iCM3#,4#,KM3#,YM3#,40198808-199201

sub90201-35518

main90201-35438iCM3#,4#,KM3#,YM3#,40198808-199201

main90201-35439iCM3#,4#,KM3#,YM3#,40198808-199201

main90201-35440iCM3#,4#,KM3#,YM3#,40198808-199201

main90201-35441iCM3#,4#,KM3#,YM3#,40198808-199201

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-20030iCM3#,KM3#,YM3#198808-199201

main41204-35050iCM4#,YM40198808-199201

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-18485iCM3#,4#,KM3#,YM3#,40198808-199201

41204BNUT (FOR REAR DRIVE PINION)

main90179-18001iCM3#,4#,KM3#,YM3#,40198808-199201

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-30021iCM3#,4#,KM3#,YM3#,40198808-199201

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-28010iCM3#,KM3#,YM3#198808-199201

main41222-35030iCM4#,YM40198808-199201

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iCM3#,KM3#,YM3#198808-199201

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iCM4#,YM40198808-199201

main41231-22020iCM3#,KM3#,YM3#198808-199201

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-30010iCM3#,4#,KM3#,YM3#,40198808-199201

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90368-45011iCM3#,KM3#,YM3#198808-199104

sub90368-45014

main90368-45014iCM3#,KM3#,YM3#199104-199201

main90368-45066iCM4#,YM40198808-199201

main90368-50024iYM40..5F198808-199201

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-22011iYM40..5F198808-199201

main41311-30022iCM3#,KM3#,YM3#198808-199201

main41311-30050iCM4#,YM40198808-199201

sub41311-28010

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-30010iCM3#,KM3#,YM3#198808-199201

main41315-35010iCM4#,YM40198808-199201

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-30010iCM3#,4#,KM3#,YM3#,40198808-199201

SINGLE TYPE

main41317-30010iCM3#,4#,KM3#,YM3#,40198808-199201

DOUBLE TYPE

41331GEAR, REAR DIFFERENTIAL SIDE

main41305-22010iCM40;YM40..4FC198808-199201

main41331-22070iCM3#,KM3#,YM3#199008-199201

sub41039-28010

main41331-30021iCM3#,KM3#,YM30198808-199008

sub41331-22070

main41331-30030iCM4#,YM40198808-199201

41341PINION, REAR DIFFERENTIAL

main41341-14031iCM40;YM40..4FC198808-199201

main41341-22030iCM3#,KM3#,YM3#199008-199201

sub41039-28010

main41341-30011iCM3#,KM3#,YM30198808-199008

main41341-30020iCM4#,YM40198808-199201

sub41341-30050

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-22020iCM4#,YM40198808-199201

sub41342-22021

main41342-30011iCM3#,KM3#,YM3#198808-199201

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06058iCM3#,4#,KM3#,YM3#,40198808-199201

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30032iCM3#,KM3#,YM3#198808-199201

main41351-30060iCM4#,YM40198808-199201

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-22020iCM3#,KM3#,YM3#198808-199201

main41361-22030iCM3#,KM3#,YM3#198808-199201

main41361-22040iCM3#,KM3#,YM3#198808-199201

main41361-22140iCM3#,KM3#,YM3#198808-199201

main41361-22150iCM3#,KM3#,YM3#198808-199201

main41361-22160iCM3#,KM3#,YM3#198808-199201

main41361-28130iCM40,YM40198808-199201

main41361-28140iCM40,YM40198808-199201

main41361-28150iCM40,YM40198808-199201

main41361-28160iCM40,YM40198808-199201

main41361-28170iCM40,YM40198808-199201

main41361-28180iCM40,YM40198808-199201

main41361-28190iCM40,YM40198808-199201

main41361-28200iCM40,YM40198808-199201

main41361-28210iCM40,YM40198808-199201

main41361-28220iCM40,YM40198808-199201

main41361-30040iCM4#,YM40198808-199201

main41361-30050iCM4#,YM40198808-199201

main41361-30060iCM4#,YM40198808-199201

main41361-30070iCM4#,YM40198808-199201

42110HOUSING ASSY, REAR AXLE

main42110-27101iCM4#,YM40198808-199201

main42110-27140iCM36,KM35,36..V1198808-199201

main42110-27200iCM36,KM35,36..MRF198808-199201

main42110-27210iCM30,31,KM30,31,YM3#198808-199201

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18049iCM3#,4#,KM3#,YM3#,40198808-199201

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iCM3#,4#,KM3#,YM3#,40198808-199201

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90930-03031iCM3#,4#,KM3#,YM3#,40198808-199201

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iCM3#,4#,KM3#,YM3#,40198808-199201

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18057iCM3#,4#,KM3#,YM3#,40198808-199201

42139DEFLECTOR, REAR AXLE HOUSING OIL

main42108-22010iCM30,31,KM30,31,YM3#198808-199201

main42108-30010iCM4#,YM40198808-199201

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-30010iCM3#,KM3#,YM3#198808-199201

main42181-30020iCM4#,YM40198808-199201

9017008204

main90170-08204

9111150814

main91111-50814

9451200800

main94512-00800

9453101200

main94531-01200

40 parts on this diagram · 2 diagrams in section
