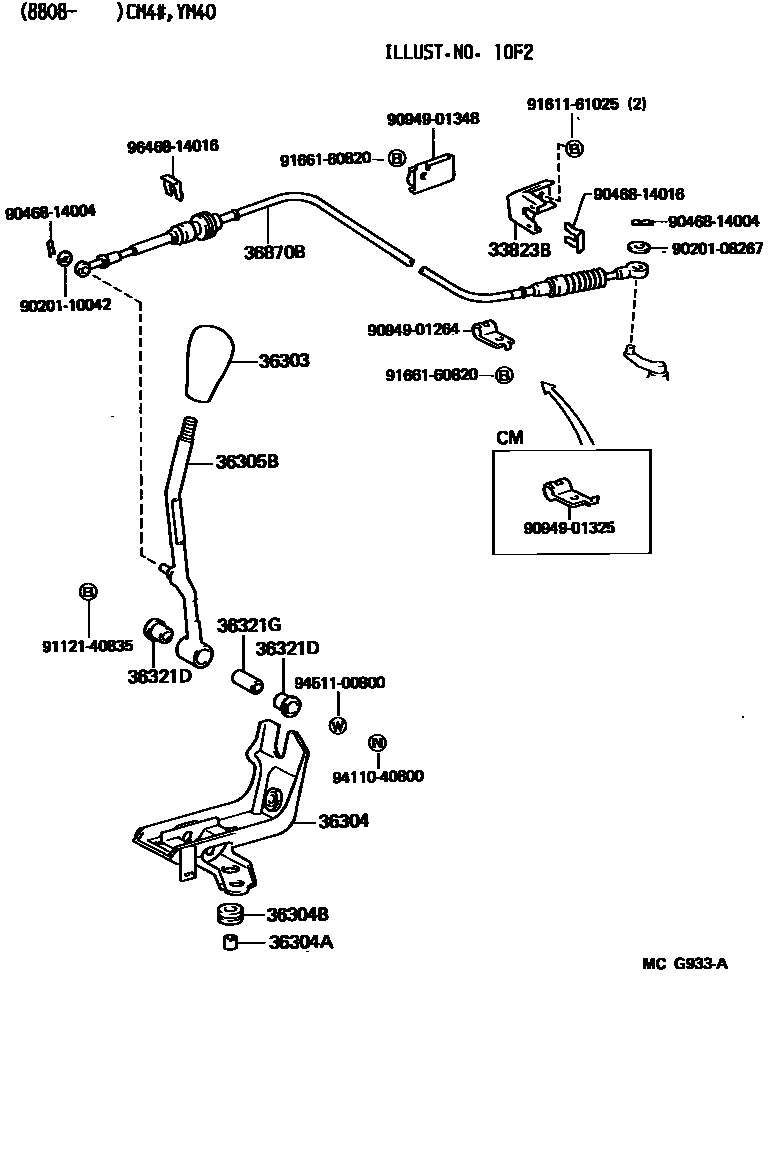

TRANSFER LEVER & SHIFT ROD

0001 1 0002 1

33823BBRACKET, TRANSFER CONTROL CABLE

main33823-28100iCM4#,YM40198808-199201

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-27010-13iCM40..5F..(LD,SW);CM41,YM40..DLX,LD,SW198808-199201

GRAY,TRIM1#

main36303-28020-03iCM40..4FC;YM40..FXV,GXL;CM40..5F..(FXV,GXL,SSW)198808-199201

SHADOW GRAY,TRIM1#

main36303-28020-06iCM40,YM40..FXV,GXL198808-199201

SABLE,TRIM4#

36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

main33506-27040iCM4#,YM40198808-199201

36304ACOLLER (FOR TRANSFER CONTROL SHIFT LEVER RETAINER)

main90387-09011×2iCM4#,YM40198808-199201

36304BGROMMET (FOR TRANSFER CONTROL SHIFT LEVER RETAINER)

main90480-13012×2iCM4#,YM40198808-199201

36305BLEVER SUB-ASSY, TRANSFER SHIFT

main33530-27170iCM4#,YM40198808-199201

36321DBUSH (FOR TRANSFER SHIFT LEVER)

main90385-11003×2iCM4#,YM40198808-199201

36321GCOLLER (FOR TRANSFER SHIFT LEVER)

main90387-08069iCM4#,YM40198808-199201

36870BCABLE ASSY, TRANSFER CONTROL

main36870-27010iCM4#,YM40..5F198808-199201

main36870-27020iCM40,YM40..4FC198808-199201

9020108267

main90201-08267

9020110042

main90201-10042

9046814004

main90468-14004

9046814016

main90468-14016

9094901264

main90949-01264

9094901325

main90949-01325

9094901348

main90949-01348

9112140835

main91121-40835

9161161025

main91611-61025

9166160820

main91661-60820

9411040800

main94110-40800

9451100800

main94511-00800

9646814016

main96468-14016

22 parts on this diagram · 2 diagrams in section
