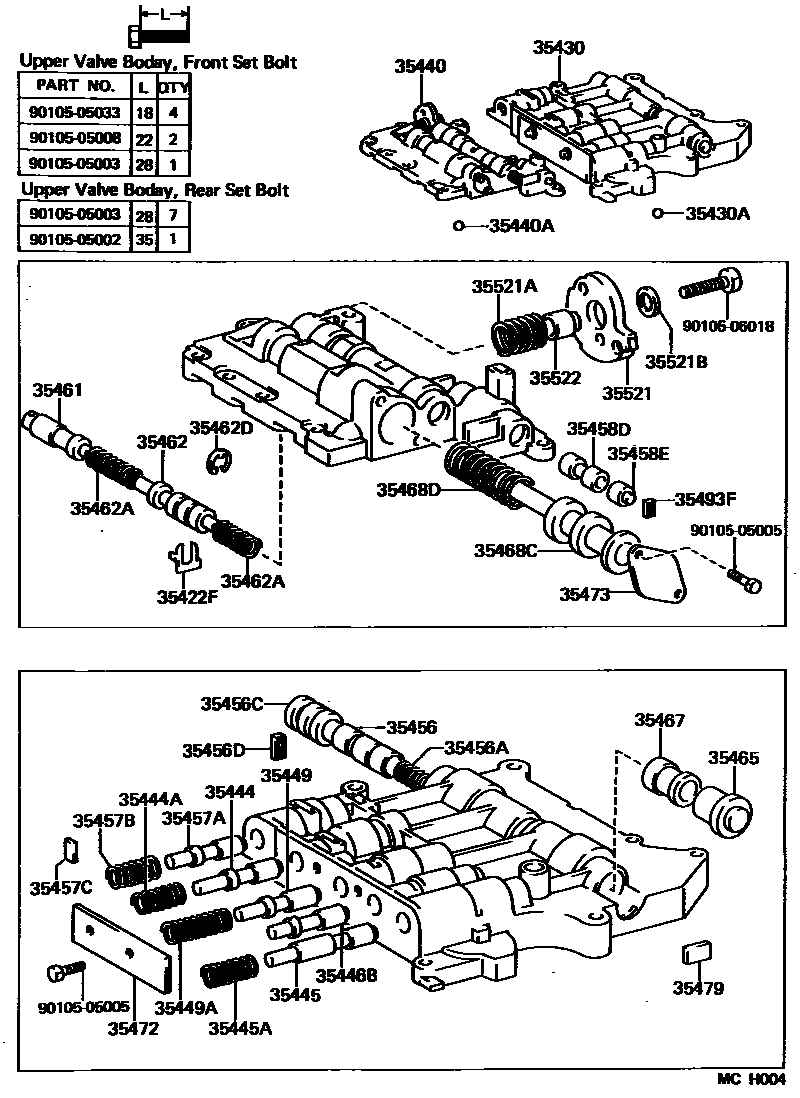

VALVE BODY & OIL STRAINER (ATM)

0001 1A41 0002 1A41 0003 1A41 0004 1A40D,A40DF 0005 1A40D,A40DF 0006 1A40D,A40DF 0007 1A42D 0008 1A42D 0009 1A42D 0010 1A45DF 0011 1A45DF 0012 1A45DF

35422FSTOPPER, VALVE VIBRATING

main35422-22010iCM3#,40,KM30,31,36,YM3#,40..ATM198808-199201

35430BODY ASSY, REAR UPPER VALVE

main35430-27020iKM30,31,36..3FC198808-199201

main35430-27030iYM3#,40..4FC198808-199201

main35430-28050iCM40..4FC198808-199201

main35430-30110iCM3#..4FC198808-199201

35430ABALL (FOR REAR UPPER VALVE BODY)

main35495-22020iCM40..4FC198808-199201

main90360-06023iCM3#,40,KM30,31,36,YM3#,40..ATM198808-199201

35440BODY ASSY, FRONT UPPER VALVE

main35440-20021iCM3#..4FC198808-199201

main35440-22090iKM30,31,36..3FC198808-199201

main35440-28041iYM3#,40..4FC198808-199201

main35440-28060iCM40..4FC198808-199201

35440ABALL (FOR FRONT UPPER VALVE BODY)

main35495-22020iCM40,KM30,31,36..ATM198808-199201

35444VALVE, INTERMEDIATE MODULATOR

main35444-22010iCM3#,40,KM30,31,36..ATM198808-199201

35444ASPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE)

main90501-11009iCM3#,40,KM30,31,36..ATM198808-199201

35445VALVE, LOW MODULATOR

main35445-22010iCM3#,40,KM30,31,36,YM3#,40..ATM198808-199201

35445ASPRING, COMPRESSION (FOR LOW MODULATOR VALVE)

main90501-08725iCM3#,40,KM30,31,36,YM3#,40..ATM198808-199201

35446VALVE, GOVERNOR MODULATOR

main35446-20010iCM3#,40,YM3#,40..4FC198808-199201

35446BPLUG, GOVERNOR MODULATOR VALVE

main35446-20010iKM30,31,36..3FC198808-199201

35449VALVE, SEQUENCE

main35447-22010iYM3#,40..4FC198808-199201

LWR VALVE BODY

main35449-22010iCM3#,40,KM30,31,36..ATM198808-199201

UPR VALVE BODY

35449ASPRING, COMPRESSION (FOR SEQUENCE VALVE)

main90501-12055iCM40,KM30,31,36..ATM198808-199201

UPR VALVE BODY

main90501-12726iCM3#,YM3#,40..4FC198808-199201

LWR VALVE BODY

35456VALVE, 2-3 SHIFT

main35456-22010iCM3#,40,KM30,31,36..ATM198808-199201

main35456-30040iYM3#,40..4FC198808-199201

35456ASPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

main90501-08013iYM3#,40..4FC198808-199201

main90501-08724iCM3#,40,KM30,31,36..ATM198808-199201

35456CPLUG (FOR 2-3 SHIFT VALVE)

main35452-22010iCM3#,40,KM30,31,36..ATM198808-199201

main35452-30020iYM3#,40..4FC198808-199201

35456DSEAT (FOR 2-3 SHIFT VALVE)

main35493-22020iCM3#,40,KM30,31,36..ATM198808-199201

35457AVALVE, DETENT REGULATOR

main35457-22010iCM3#,40,KM30,31,36,YM3#,40..ATM198808-199201

35457BSPRING, COMPRESSION (FOR DETENT REGULATOR VALVE)

main90501-09022iKM30,31,36,YM3#,40..ATM198808-199201

main90501-09025iCM3#,40..4FC198808-199201

35457CSEAT (FOR DETENT REGULATOR VALVE)

main35438-22020iCM3#,40,KM30,31,36,YM3#,40..ATM198808-199201

35458DVALVE, CUT BACK

main35458-22010iCM3#,40,KM30,31,36,YM3#,40..ATM198808-199201

35458EPLUG (FOR CUT BACK VALVE)

main35459-22010iCM3#,40,KM30,31,36,YM3#,40..ATM198808-199201

35461PLUG, DOWN SHIFT

main35408-22020iKM30,31,36..3FC198808-199201

main35408-30010iCM40,YM3#,40..4FC198808-199201

main35408-30030iCM3#..4FC198808-199201

35462VALVE, THROTTLE

main35462-22011iCM3#,40,KM30,31,36,YM3#,40..ATM198808-199201

35462ASPRING, COMPRESSION (FOR THROTTLE VALVE)

main90501-07680iCM3#,40,KM30,31,36,YM3#,40..ATM198808-199201

main90501-12029iCM3#,40..4FC198808-199201

PRIMARY

main90501-12077iKM30,31,36,YM3#,40..ATM198808-199201

35462DRING, E (FOR THROTTLE VALVE)

main90523-06023iCM3#,40,KM30,31,36,YM3#,40..ATM198808-199201

35465PLUG, INTERMEDIATE SHIFT VALVE

main35465-22010iCM3#,40,KM30,31,36..ATM198808-199201

main35465-30010iYM3#,40..4FC198808-199201

35467VALVE, INTERMEDIATE SHIFT

main35467-22010iCM3#,40,KM30,31,36..ATM198808-199201

main35467-30020iYM3#,40..4FC198808-199201

35468CVALVE, SECONDARY REGULATOR

main35204-30010iCM40..4FC198808-199201

main35468-22010iCM3#,KM30,31,36,YM3#,40..ATM198808-199201

35468DSPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

main90501-16683iKM30,31,36..3FC198808-199201

main90501-19001iCM3#,40,YM3#,40..4FC198808-199201

35472COVER, VALVE BODY, NO.2

main35472-22010iCM3#,40,KM30,31,36,YM3#,40..ATM198808-199201

35473COVER, TRANSMISSION VALVE BODY

main35473-22010iCM3#,40,KM30,31,36,YM3#,40..ATM198808-199201

35479SEAT, INTERMEDIATE SHIFT VALVE

main35479-22010iCM3#,40,KM30,31,36..ATM198808-199201

35493SEAT, SHIFT VALVE SPRING

main35493-22010iCM3#,40,KM30,31,36,YM3#,40..ATM198808-199201

35493FSEAT, SHIFT VALVE PLUG

main35493-22010iKM30,31,36..3FC198808-199201

35521CAM, THROTTLE VALVE

main35521-20010iCM3#,40..4FC198808-199201

main35521-22030iKM30,31,36,YM3#,40..ATM198808-199201

35521ASPRING (FOR THROTTLE VALVE CAM RETURN)

main90508-12331iCM3#,40,KM30,31,36,YM3#,40..ATM198808-199201

35521BWASHER (FOR THROTTLE VALVE CAM SET)

main90201-06472iCM3#,40,KM30,31,36,YM3#,40..ATM198808-199201

35522PIN, THROTTLE VALVE CAM

main35522-22010iCM3#,40,KM30,31,36,YM3#,40..ATM198808-199201

9010505002

main90105-05002

9010505003

main90105-05003

9010505005

main90105-05005

9010505008

main90105-05008

9010505033

main90105-05033

9010506018

main90105-06018

45 parts on this diagram · 12 diagrams in section
