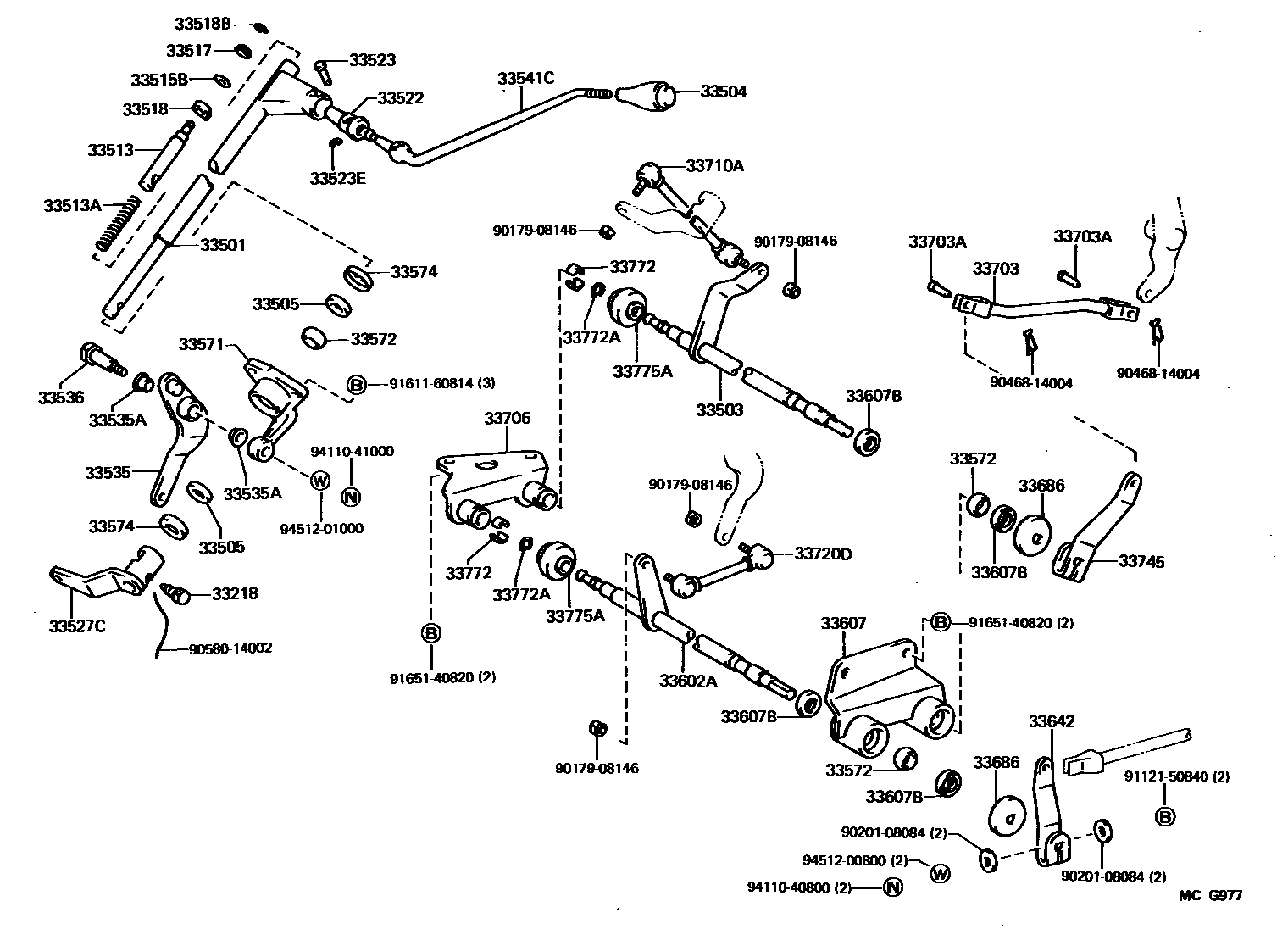

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1

33218BOLT, SHIFT LEVER LOCK

main33218-35010iKM30,35,36..4H,5H198808-199201

33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

main33501-27100iKM30,35,36..4H198808-199008

main33501-27180iKM30,36..5H199008-199201

33503LEVER SUB-ASSY, SHIFT(FOR COLUMN SHIFT)

main33503-27141iKM30,35,36..4H,5H198808-199201

33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)

main33504-30110iKM30,35,36..4H,5H198808-199201

33505SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)

main90303-17005iKM30,35,36..4H,5H198808-199201

33513SHAFT, CONTROL SHAFT BRACKET, UPPER

main33513-36020iKM30,35,36..4H,5H198808-199201

33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)

main90501-14395iKM30,35,36..4H,5H198808-199201

33515BSEAT, CONTROL UPPER SHAFT (FOR COLUMN SHIFT)

main33515-30010iKM30,35,36..4H,5H198808-199201

33517RETAINER, CONTROL SHAFT UPPER SPRING

main33517-30010iKM30,35,36..4H,5H198808-199201

33518BUSH, UPPER CONTROL SHAFT PIECE

main33518-36010iKM30,35,36..4H,5H198808-199201

sub33518-35010

33518BRING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)

main90523-06019iKM30,35,36..4H,5H198808-199201

33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)

main33522-36010iKM30,35,36..4H,5H198808-199201

33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)

main90249-07001iKM30,35,36..4H,5H198808-199201

33523ERING, E (FOR SHIFT LEVER PIN)

main96160-00500iKM30,35,36..4H,5H198808-199201

33527CLEVER, CONTROL SHIFT (FOR COLUMN SHIFT)

main33527-27070iKM30,35,36..4H198808-199008

main33527-27100iKM30,36..5H199008-199201

33535LEVER, CONTROL SELECT (FOR COLUMN SHIFT)

main33535-27070iKM30,35,36..4H198808-199008

main33535-27110iKM30,36..5H199008-199201

33535ABUSH (FOR CONTROL SELECT LEVER)

main90386-13007iKM30,35,36..4H,5H198808-199201

33536SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)

main33536-25010iKM30,35,36..4H,5H198808-199201

33541CLEVER, SHIFT (FOR COLUMN SHIFT)

main33541-27200iKM30,35,36..4H,5H198808-199201

33571BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)

main33571-27040iKM30,35,36..4H198808-199008

main33571-27070iKM30,36..5H199008-199201

33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)

main33572-36010iKM30,35,36..4H,5H198808-199201

33574RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)

main33574-25010iKM30,35,36..4H,5H198808-199201

33602ALEVER SUB-ASSY, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT)

main33602-27060iKM30,35,36..4H198808-199008

main33602-27100iKM30,36..5H199008-199201

33607SUPPORT SUB-ASSY, CONTROL ROD (FOR COLUMN SHIFT)

main33607-27081iKM30,35,36..4H,5H198808-199201

33607BSEAL, OIL (FOR CONTROL ROD SUPPORT)

main90312-16004iKM30,35,36..4H,5H198808-199201

33642LEVER, GEAR SELECTING, NO.2

main33642-27040iKM30,35,36..4H,5H198808-199201

33686COVER, CONTROL LEVER DUST (FOR COLUMN SHIFT)

main33686-26010iKM30,35,36..4H,5H198808-199201

33703ROD SUB-ASSY, GEAR SHIFTING, NO.2 (FOR COLUMN SHIFT)

main33703-27081iKM30,35,36..4H,5H198808-199201

33703APIN, W/HOLE (FOR GEAR SHIFTING ROD NO.2)

main90240-08042iKM30,35,36..4H,5H198808-199201

33706SUPPORT SUB-ASSY, CROSS SHAFT, NO.2 (FOR COLUMN SHIFT)

main33706-27050iKM30,35,36..4H,5H198808-199201

33710AROD ASSY, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)

main33710-27080iKM30,35,36..4H,5H198808-199201

33720DROD ASSY, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT)

main33720-27100iKM30,35,36..4H198808-199008

main33720-27130iKM30,36..5H199008-199201

33745LEVER, GEAR SHIFTING, NO.2 (FOR COLUMN SHIFT)

main33745-27040iKM30,35,36..4H,5H198808-199201

33772BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)

main33772-20010iKM30,35,36..4H,5H198808-199201

33772ARING, SNAP (FOR CROSS SHAFT SUPPORT BUSH)

main96151-01600iKM30,35,36..4H,5H198808-199201

33775ACOVER, CROSS SHAFT DUST

main33775-20020iKM30,35,36..4H,5H198808-199201

9017908146

main90179-08146

9020108084

main90201-08084

9046814004

main90468-14004

9058014002

main90580-14002

9112150840

main91121-50840

9161160814

main91611-60814

9165140820

main91651-40820

9411040800

main94110-40800

9411041000

main94110-41000

9451200800

main94512-00800

9451201000

main94512-01000

47 parts on this diagram · 2 diagrams in section
