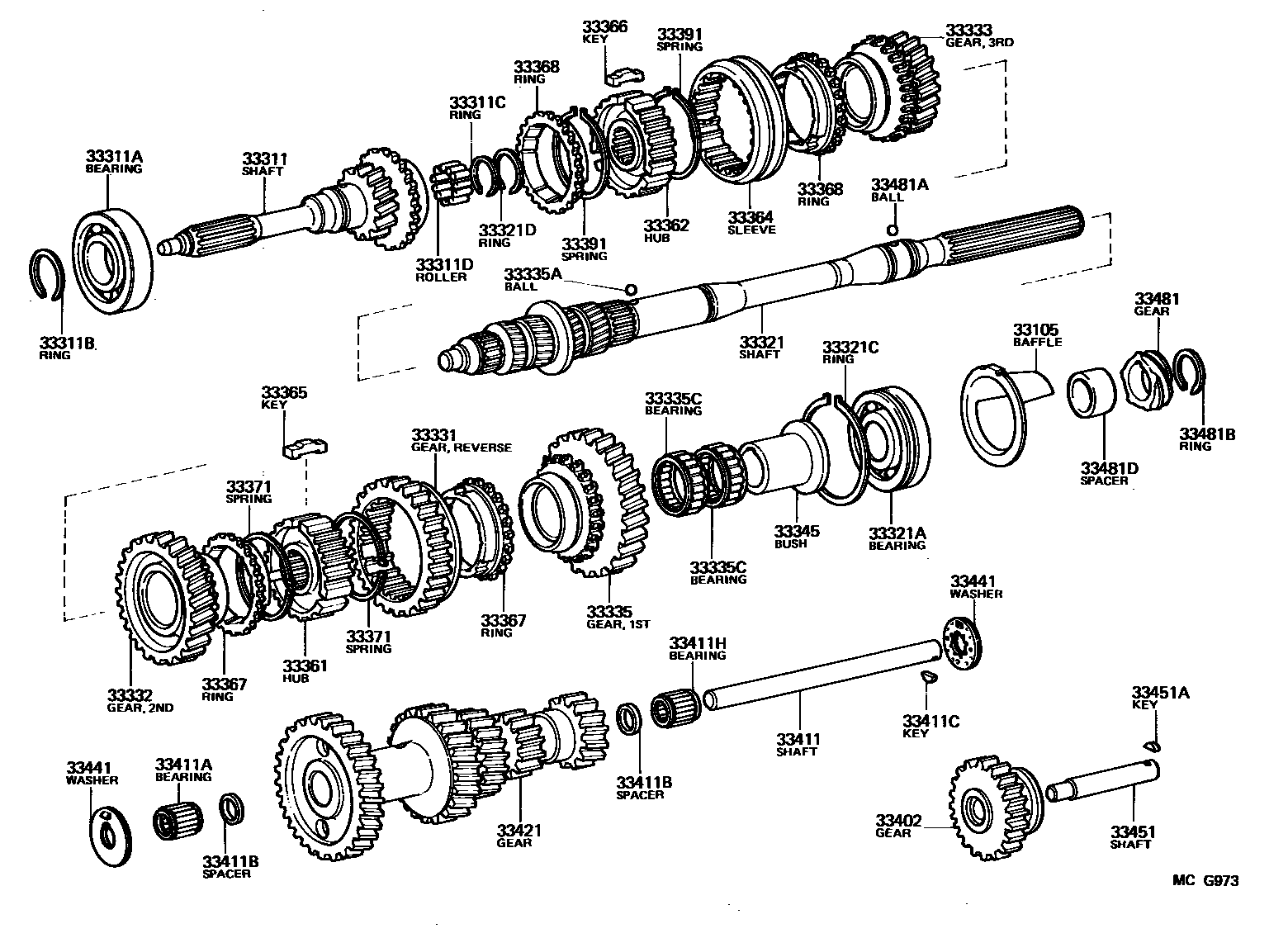

TRANSMISSION GEAR (MTM)

0001 1 0002 1

33105BAFFLE SUB-ASSY, EXTENSION HOUSING OIL

main33143-27010iKM30,35,36..4H¥1,750198808-199008

33311SHAFT, INPUT

main33301-26030iKM36..5H¥24,700198906-199201

sub33301-35080¥28,300

main33301-26040iKM31,YM30,40..5F¥24,700198906-199201

sub33301-35071¥15,500

main33301-28060iCM30,40,KM30,31,36,YM30,40..5F¥28,200198808-198906

sub33301-26040¥24,700

main33301-35060iCM31,36,41..5F¥24,600198808-199201

sub33301-26030¥24,700

main33301-35070iCM30,40..5F¥28,300198808-199201

sub33301-35071¥15,500

main33311-35040iKM35¥11,800198808-199008

main33311-35050iKM30,36..4H¥13,900198808-199008

33311ABEARING (FOR INPUT SHAFT FRONT)

main90363-32024iCM3#,4#,KM30,31,36,YM3#,40..5F,5H¥2,420198808-199201

main90363-35026iKM30,35,36..4H¥2,040198808-199008

33311BRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-30214iCM3#,4#,KM30,31,36,YM3#,40..5F,5H¥180198808-199201

main90520-30215iCM3#,4#,KM30,31,36,YM3#,40..5F,5H¥180198808-199201

main90520-30216iCM3#,4#,KM30,31,36,YM3#,40..5F,5H¥180198808-199201

main90520-30217iCM3#,4#,YM40..5F¥180198808-199201

main90520-30218iKM36..5H;CM3#,4#,YM40..5F¥180198808-199201

main90520-30219iKM36..5H;CM3#,4#,YM40..5F¥180198808-199201

main90520-33107iKM30,35,36..4H¥120198808-199008

main90520-33168iKM30,35,36..4H¥220198808-199008

main90520-33169iKM30,35,36..4H¥220198808-199008

main90520-33170iKM30,35,36..4H¥220198808-199008

main90520-33171iKM30,35,36..4H¥220198808-199008

main90520-33172iKM30,35,36..4H¥220198808-199008

33311CRING, HOLE SNAP (FOR NEEDLE ROLLER)

main90521-33006iKM30,35,36..4H¥200198808-199008

33311DBEARING, INPUT SHAFT

main90361-06002iCM3#,4#,KM30,31,36,YM3#,40..5F,5H¥110198808-199201

main90361-06047iKM30,35,36..4H¥180198808-199008

33321SHAFT, OUTPUT

main33321-26050iCM3#,KM30,31,36,YM3#..5F,5H¥22,300198808-199201

main33321-27021iKM30,35,36..4H¥19,700198808-199008

main33321-28010iCM4#,YM40..5F¥22,900198808-199201

33321ABEARING (FOR OUTPUT SHAFT REAR)

main97183-06306iKM30,35,36..4H¥1,310198808-199008

33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

main90520-68181iKM30,35,36..4H¥210198808-199008

main90520-68182iKM30,35,36..4H¥210198808-199008

main90520-68183iKM30,35,36..4H¥210198808-199008

main90520-68184iKM30,35,36..4H¥210198808-199008

main90520-68185iKM30,35,36..4H¥210198808-199008

main90520-71221iCM3#,4#,KM30,31,36,YM3#,40..5F,5H¥230198808-199201

33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)

main90520-28010iCM3#,4#,KM30,31,36,YM3#,40..5F,5H¥200198808-199201

main90520-28011iCM3#,4#,KM30,31,36,YM3#,40..5F,5H¥200198808-199201

main90520-28012iCM3#,4#,KM30,31,36,YM3#,40..5F,5H¥120198808-199201

main90520-28013iCM3#,4#,KM30,31,36,YM3#,40..5F,5H¥120198808-199201

main90520-28242iKM30,35,36..4H¥260198808-199008

main90520-28243iKM30,35,36..4H¥260198808-199008

main90520-28244iKM30,35,36..4H¥260198808-199008

main90520-28245iKM30,35,36..4H¥170198808-199201

main90520-28246iCM3#,4#,KM30,31,36,YM3#,40..5F,5H¥170198808-199201

main90520-28248iCM3#,4#,KM30,31,36,YM3#,40..5F,5H¥130198808-199201

main90520-30217iCM3#,KM30,31,36,YM3#..5F,5H¥180198808-199201

main90520-30218iCM3#,KM30,31,36,YM3#..5F,5H¥180198808-199201

main90520-30219iCM3#,KM30,31,36,YM3#..5F,5H¥180198808-199201

33331GEAR, REVERSE

main33331-26010iKM30,35,36..4H¥10,900198808-199008

main33331-28010iCM3#,4#..5F¥13,900198808-199102

sub33331-28011¥13,000

main33331-28011iKM30,31,36..5F,5H¥13,000199005-199201

sub33331-35061¥13,200

main33331-35060iYM30,40..5F¥13,300198906-199012

sub33331-35061¥13,200

main33331-35061iKM36..5H¥13,200199012-199201

sub33331-35062¥13,000

33332GEAR, 2ND

main33033-35011iCM31,36,41..5F¥9,300198808-199201

main33033-35021iCM30,40,KM30,YM30,40..MTM¥13,600198808-199201

main33332-35030iKM35¥13,300198808-199008

main33332-35040iKM30,36..4H¥7,800198808-199008

33333GEAR, 3RD

main33034-28020iKM36..5H¥11,800198808-199201

sub33034-35030¥8,200

main33034-35030iCM3#,4#..5F¥8,200198808-199201

main33333-26010iKM30,35,36..4H¥12,200198808-199008

33335GEAR, 1ST

main33032-26020iKM31,YM3#,40..5F¥17,200198906-199201

main33032-35050iCM3#,4#,KM30,31,36,YM30,40..5F¥10,800198808-199201

sub33032-26020¥17,200

main33335-35010iKM30,35,36..4H¥13,500198808-199008

33335ABALL, 1ST SHIFT RESTRICT

main90360-06004iKM30,35,36..4H¥90198808-199008

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90364-37050iKM30,35,36..4H¥1,260198808-199008

main90364-39011iCM3#,4#,KM30,31,36,YM3#,40..5F,5H¥2,690198808-199201

33345BUSH, 1ST GEAR

main33345-26011iKM30,35,36..4H¥2,730198808-199008

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-26012iKM30,35,36..4H¥9,200198808-199008

main33361-35020iCM3#,4#,KM30,31,36,YM3#,40..5F,5H¥6,600198808-199201

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-26011iKM30,35,36..4H¥9,200198808-199008

main33362-35040iCM3#,4#,KM30,31,36,YM3#,40..5F,5H¥3,410198808-199201

33364SLEEVE, TRANSMISSION HUB, NO.2

main33364-26010iKM30,35,36..4H¥6,300198808-199008

main33364-35030iCM3#,4#,KM30,31,36,YM3#,40..5F,5H¥6,700198808-199201

sub33364-26020¥4,190

sub33213-35033¥2,910

sub33220-26010¥4,100

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-26010iKM30,35,36..4H¥300198808-199008

main33365-35020iCM3#,4#,KM30,31,36,YM3#,40..5F,5H¥330198808-199201

sub33365-35021¥210

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33366-26010iKM30,35,36..4H¥300198808-199008

main33366-35040iCM3#,4#,KM30,31,36,YM3#,40..5F,5H¥300198808-199201

sub33366-35041¥190

33367RING, SYNCHRONIZER, NO.1

main33367-26023iKM30,35,36..4H¥3,380198808-199008

main33368-20012iCM3#,4#,KM30,31,36,YM3#,40..5F,5H¥2,660198808-199201

33368RING, SYNCHRONIZER, NO.2

main33367-14010iCM3#,4#,KM30,31,36,YM3#,40..5F,5H¥2,250198808-199201

main33367-26023iKM30,35,36..4H¥3,380198808-199008

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-14010iKM30,35,36..4H¥160198808-199008

main33371-14031iCM3#,4#,KM30,31,36,YM3#,40..5F,5H¥140198808-199201

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33371-14010iCM3#,4#,KM3#,YM3#,40..MTM¥160198808-199201

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-26010iKM30,35,36..4H¥9,800198808-199008

main33402-28011iCM3#,4#..5F¥9,900198808-199201

sub33402-35050¥11,400

main33402-35050iKM31,YM3#,40..5F¥11,400198906-199201

sub33402-60040¥7,800

33411COUNTERSHAFT

main33411-30021iKM30,35,36..4H¥2,030198808-199008

33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)

main90364-19068iKM30,35,36..4H¥960198808-199008

main90365-25025iCM3#,4#,KM30,31,36,YM3#,40..5F,5H¥3,760198808-199201

sub90365-25023¥3,760

33411BSPACER(FOR COUNTER GEAR BEARING)

main90560-19450iKM30,35,36..4H¥200198808-199008

33411CKEY, WOODRUFF(FOR COUNTER GEAR SHAFT)

main90280-03005iKM30,35,36..4H¥120198808-199008

33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)

main90364-19068iKM30,35,36..4H¥960198808-199008

33421GEAR, COUNTER

main33421-26120iKM31,36,YM31..5F¥32,300198906-199201

sub33421-35170¥32,300

main33421-28040iKM30,36..5F¥30,100198906-199201

main33421-35051iKM35¥25,200198808-199008

main33421-35060iKM30,36..4H¥18,300198808-199008

main33421-35140iCM31,36,41..5F¥32,100198808-199201

sub33421-26120¥32,300

main33421-35150iCM30,40,KM30,31,36,YM30,40..5F¥32,300198808-199201

33441WASHER, COUNTER GEAR SIDE THRUST, NO.1

main33441-26012iKM30,35,36..4H¥880198808-199008

main33441-26022iKM30,35,36..4H¥880198808-199008

main33441-26032iKM30,35,36..4H¥880198808-199008

main33441-26042iKM30,35,36..4H¥930198808-199008

main33441-26052iKM30,35,36..4H¥930198808-199008

main33441-26061iKM30,35,36..4H¥1,190198808-199008

33451SHAFT, REVERSE IDLER GEAR

main33451-28010iCM3#,4#,KM30,31,36,YM3#,40..5F,5H¥2,920198808-199201

sub33451-28011¥1,930

main33451-30020iKM30,35,36..4H¥1,490198808-199008

33451AKEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)

main90280-03005iKM30,35,36..4H¥120198808-199008

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-20070iKM30,31,36..(5F,5H)..(DLX,LD,SCA,SUC,SUP)¥1,900198808-199201

main33481-25010iKM35¥2,290198808-199008

main33481-25020iKM30,36..DLX,LD¥2,290198808-199008

main33481-25030iKM30..4H..SW¥2,290198808-199008

main33481-30040iCM3#,YM3#..5F;KM30..(5F,5H)..(SCA,SUC,SW)¥1,480198808-199201

33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)

main90360-06004iKM30,35,36..4H¥90198808-199008

33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)

main90520-26061iCM3#,KM3#,YM3#..MTM¥120199110-199201

main90520-26179iCM3#,KM30,31,36,YM3#..5F,5H¥240198808-199110

sub90520-26061¥120

main90520-28137iKM30,35,36..4H¥250198808-199008

main90520-28246iKM30,35,36..4H¥170198808-199008

main90520-28248iKM30,35,36..4H¥130198808-199008

main90520-28249iKM30,35,36..4H¥210198808-199008

33481DSPACER (FOR SPEEDOMETER DRIVE GEAR)

main90560-30355iKM30,35,36..4H¥330198808-199008

40 parts on this diagram · 2 diagrams in section
