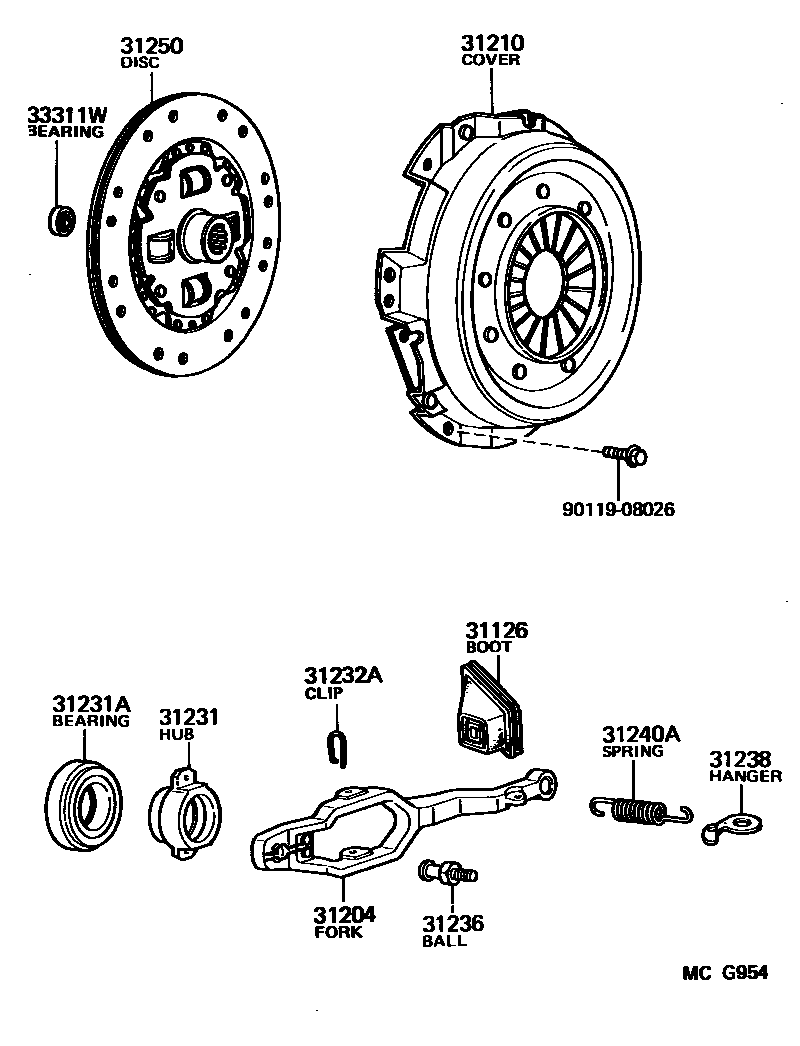

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iCM3#,4#,YM3#,40..5F198808-199201

main31126-20070iKM30,31,36..5F,5H198808-199201

main31126-27020iKM30,35,36..4H198808-199008

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iCM3#,4#,YM3#,40..5F198808-199201

main31204-22040iKM30,31,36..5F,5H198808-199201

main31204-27011iKM30,35,36..4H198808-199008

31210COVER ASSY, CLUTCH

main31210-12180iKM3#..MTM199104-199201

sub31210-12181

main31210-22120iCM3#,YM3#,40..5F..(CBR,DSL)198812-199201

sub31210-22121

main31210-27010iKM3#..MTM198808-198907

sub31210-27011

main31210-27011iKM3#..MTM198907-199104

sub31210-12180

main31210-35080iCM3#,YM30,40..5F..(CBR,DSL)198808-198812

sub31210-22120

main31210-35090iCM4#..5F;CM30..5F..TD198808-199201

sub31210-22100

31231HUB, CLUTCH RELEASE BEARING

main31231-27030iKM30,35,36..4H198808-199008

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iKM30,35,36..4H198808-199008

31232ACLIP, RELEASE BEARING HUB

main31232-30020iKM30,35,36..4H198808-199008

main31232-35020iCM3#,4#,KM30,31,36,YM30,40..5F198808-198911

main31232-35020iCM3#,4#,KM30,31,36,YM3#,40..5F,5H198911-199201

main31232-35040iCM3#,4#,KM30,31,36,YM3#,40..5F,5H198911-199201

31236BALL, RELEASE FORK

main31236-30060iCM3#,4#,KM3#,YM3#,40..MTM198808-199201

31238HANGER, RELEASE FORK RETRACTING SPRING

main31238-27010iKM30,35,36..4H198808-199008

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-18311iKM30,35,36..4H198808-199008

31250DISC ASSY, CLUTCH

main31250-20114iCM3#..5F..DSL198808-198812

sub31250-20115

main31250-20115iCM3#..5F..DSL198812-199007

sub31250-20116

main31250-20116iCM3#..5F..DSL199007-199201

sub31250-20117

main31250-20121iYM40..5F198808-199201

sub31250-25122

main31250-27025iKM35..V1;KM30..MTM..(LD,SCA,SUC)198808-198910

sub31250-27060

main31250-27060iKM31,36..MTM198808-198908

sub31250-27061

main31250-27061iKM36..5F;KM30,31,36..(HRF,SRF)..MTM..(DLX,SUP,SW)198908-198910

sub31250-28140

main31250-27061iKM36..5F,5H;KM30,31..MTM;KM35,36..V1..4H198910-199201

sub31250-28140

main31250-27090iKM35,36..MRF..DLX198907-199008

sub31250-27091

main31250-27090iKM36..5F;KM31,36..V1..MTM198907-199008

sub31250-27091

main31250-28021iCM41198808-199201

sub31250-28022

main31250-28060iCM40..5F198808-199201

sub31250-28061

main31250-28070iCM30..5F..TD198808-199201

sub31250-28071

main31250-35062iYM30..5F198808-198812

sub31250-35063

main31250-35063iYM30..5F198812-199007

sub31250-35064

main31250-35064iYM3#..5F199007-199201

sub31250-35065

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iYM3#,40..5F198808-199201

sub90363-12024

main90363-12003iKM3#..MTM198808-199201

main90363-12004iCM3#,4#..5F198808-199201

9011908026

main90119-08026

12 parts on this diagram · 3 diagrams in section
