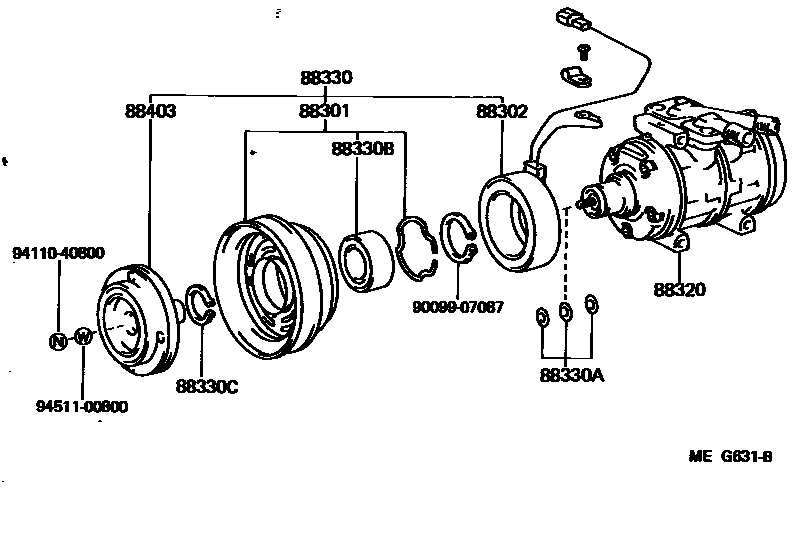

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-20070iCM3#,4#198509-198808

main88412-22030iKM3#,YM30,40198509-198808

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iCM3#,4#,KM3#,YM30,40198509-198808

88320COMPRESSOR ASSY, COOLER

main88320-27060iYM30,40198509-198808

main88320-27070iKM3#198509-198808

main88320-27080iCM4#198510-198808

main88320-28040iCM3#198509-198808

88330CLUTCH ASSY, MAGNET

main88410-14120iCM3#,4#198509-198808

main88410-22080iKM3#,YM30,40198509-198808

sub88410-60140

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iCM3#,4#,KM3#,YM30,40198509-198808

88330BBEARING, MAGNET CLUTCH

main90099-10133iCM3#,4#,KM3#,YM30,40198509-198808

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07114iKM3#,YM30,40198509-198808

main90099-07118iCM3#,4#198509-198808

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-14030iCM3#,4#,KM3#,YM30,40198509-198808

sub88403-12030

9009907087

main90099-07087

9411040800

main94110-40800

9451100800

main94511-00800

11 parts on this diagram · 3 diagrams in section
