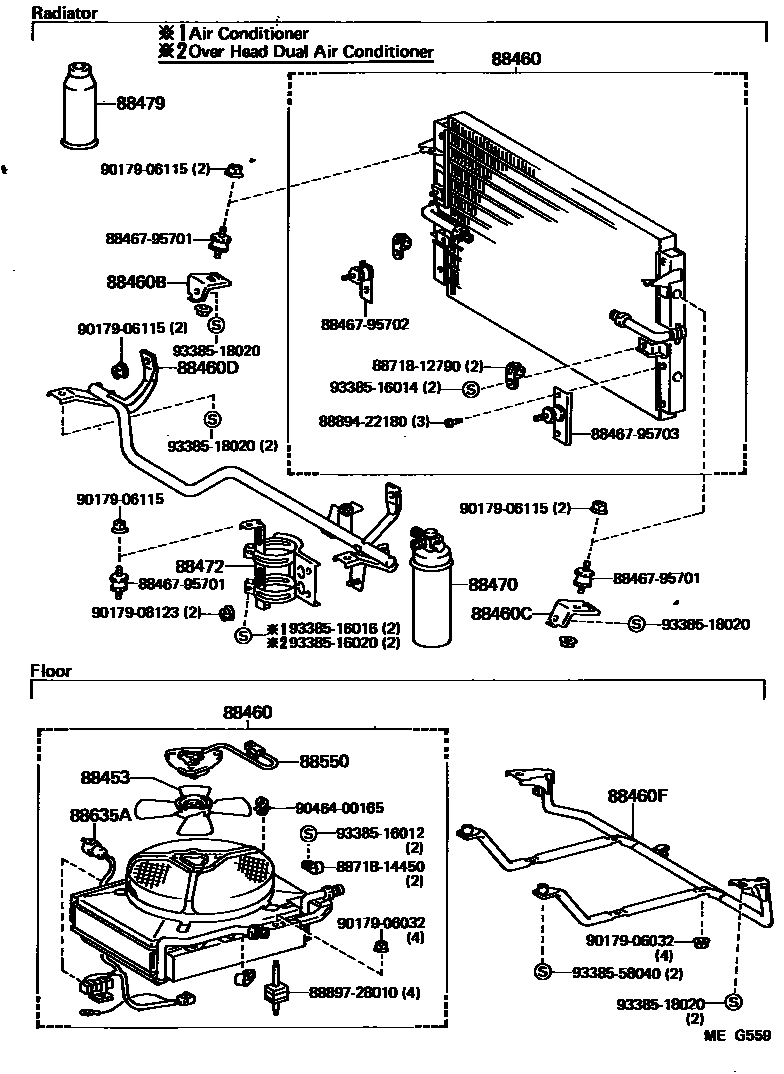

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

88453FAN, COOLING (FOR CONDENSER)

main88453-12030iCM30,KM30,YM30198509-198705

sub88453-28010

main88453-28010iCM4#,YM40198510-198808

88460CONDENSER ASSY, COOLER

main88460-95713iCM40,YM40198510-198808

main88460-95716iCM3#,KM3#,YM30198509-198808

RADIATOR

sub88460-95710

main88460-95717iCM30,KM30,YM30198509-198808

FLOOR

main88460-95718iCM41198510-198808

main88460-95719iCM30,KM30198602-198808

RADIATOR,W/SHUTTER

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-95743iCM3#,KM3#,YM30198509-198808

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-95744iCM3#,KM3#,YM30198509-198808

88460DBRACKET, COOLER CONDENSER, NO.3

main88688-95746iCM3#,KM3#,YM30198509-198808

88460FBRACKET, COOLER CONDENSER, NO.4

main88688-95771iCM40,YM40198510-198808

RR

main88688-95776iCM40,YM40198510-198808

FR

main88688-95777iCM30,41,KM30,YM30198509-198808

88470RECEIVER & DRYER ASSY, COOLER

main88470-16010iCM3#,4#,KM3#,YM30,40198509-198610

sub88471-16010

main88471-16010iCM3#,4#,KM3#,YM30,40198610-198808

88472BRACKET, RECEIVER TANK, NO.1

main88472-95706iCM40,YM40198510-198808

main88472-95707iCM3#,KM3#,YM30198509-198808

sub88472-95704

main88472-95708iCM41198510-198808

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001iCM3#,4#,KM3#,YM30,40198509-198808

sub90986-02004

sub90986-02005

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-87002iCM30,4#,KM30,YM30198509-198808

88635ARESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR)

main88635-95702iCM30,KM30,YM30198509-198808

8846795701CUSHION, COOLER CONDENSER, NO.1

main88467-95701

8846795702CUSHION, COOLER CONDENSER, NO.1

main88467-95702

8846795703CUSHION, COOLER CONDENSER, NO.1

main88467-95703

8871812790PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12790

8871814450PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-14450

8889422180

main88894-22180

8889728010VALVE, COOLER MAGNET

main88897-28010

9017906032

main90179-06032

9017906115

main90179-06115

9017908123

main90179-08123

9046400165

main90464-00165

9338516012

main93385-16012

9338516014

main93385-16014

9338516016

main93385-16016

9338516020

main93385-16020

9338518020

main93385-18020

9338558040

main93385-58040

28 parts on this diagram · 10 diagrams in section
