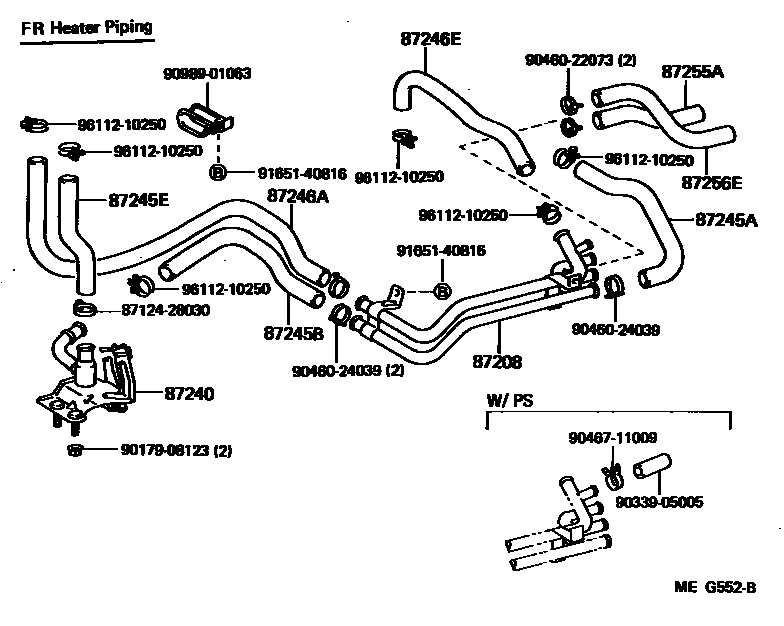

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

87208PIPE SUB-ASSY, HEATER WATER

main87208-95715iKM30..DLX,SW198509-198808

W/PS

main87208-95716iKM30198509-198808

W/RR HEATER

main87208-95716iKM30198509-198808

W/PS & RR HEATER

main87208-95717iKM31,35,36198509-198808

main87208-95718iKM31,36..V4D..SUP198509-198808

W/RR HEATER

main87208-95732iCM41..V4D..05S198509-198808

87240VALVE ASSY, HEATER WATER

main87240-95707iCM3#,4#,KM3#,YM30,40198509-198808

87245AHOSE, HEATER WATER, INLET A

main87245-95734iKM3#198509-198808

main87245-95736iCM3#,4#198509-198808

main87245-95737iYM30,40198509-198808

87245BHOSE, HEATER WATER, INLET B

main99556-30260iCM3#,4#,YM30,40198802-198808

sub99556-30300

main99556-30300iCM3#,4#,YM30,40198509-198802

main99556-30980iKM3#198509-198808

sub99556-31000

87245EHOSE, HEATER WATER, INLET E

main99556-30180iCM3#,4#,KM3#,YM30,40198509-198808

sub99556-30200

87246AHOSE, HEATER WATER, OUTLET A

main99556-30980iKM3#198509-198808

sub99556-31000

main99556-30980iCM3#,4#,YM30,40198509-198808

sub99556-31000

87246EHOSE, HEATER WATER, OUTLET E

main87245-95732iKM3#198509-198808

main87245-95739iCM3#,4#198509-198808

main87245-95740iYM30,40198509-198808

87255AHOSE, REAR HEATER WATER INLET, A(FROM ENGINE)

main87245-95738iCM35,41..V4D..05S198509-198808

main87245-95748iKM30198509-198510

main87245-95754iKM30198510-198808

sub87245-95J35

87256EHOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)

main87245-95741iCM35,41..V4D..05S198509-198808

main87245-95753iYM30,40198509-198808

main99556-20300iKM31,36..V4D..SUP198509-198808

main99556-20300iKM30198509-198808

8712428030CLAMP, HEATER

main87124-28030

9017908123

main90179-08123

9033905005

main90339-05005

9046022073

main90460-22073

9046024039

main90460-24039

9046711009

main90467-11009

9098901063

main90989-01063

9165140816

main91651-40816

9611210250

main96112-10250

18 parts on this diagram · 4 diagrams in section
