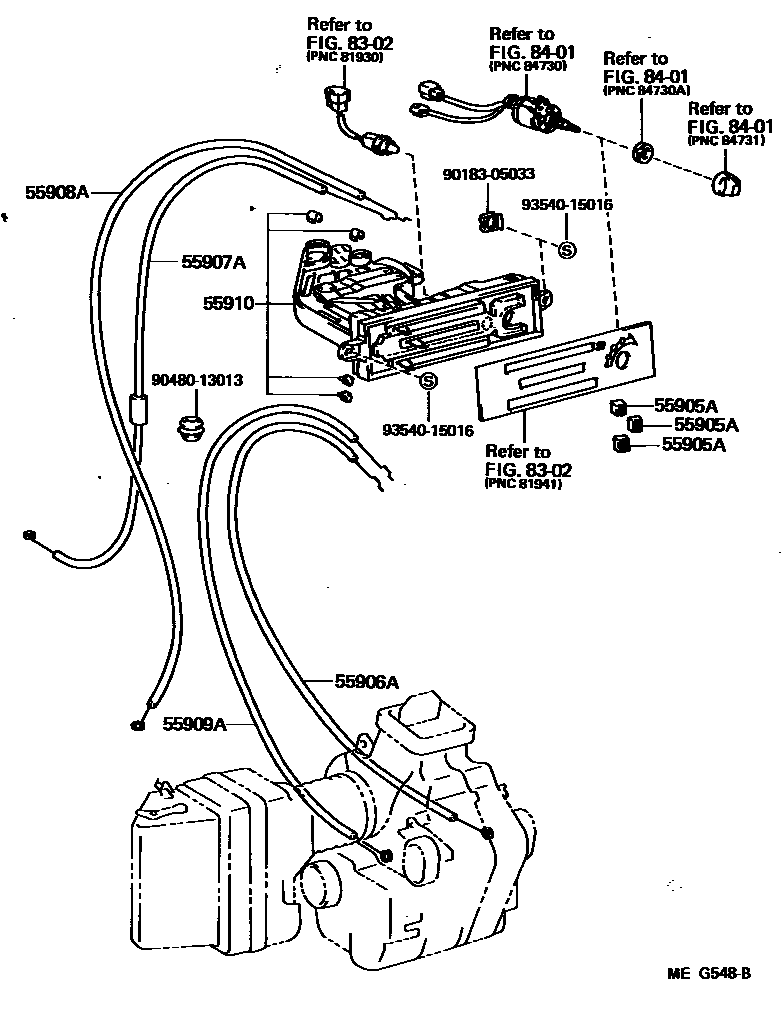

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1 0004 1

55905AKNOB, HEATER CONTROL

main55905-10110iCM3#,4#,KM3#,YM30,40198509-198808

DEF-VENT,WARM-COOL

main55905-95707iCM3#,4#,KM3#,YM30,40198509-198808

FRESH-RECIRC

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-95707iCM3#,4#,KM3#,YM30,40198509-198808

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-95709iCM3#,4#,KM3#,YM30,40198509-198808

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-95706iCM3#,4#,KM3#,YM30,40198509-198808

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-95703iCM3#,4#,KM3#,YM30,40198509-198808

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-95719iCM3#,4#,KM3#,YM30,40198509-198808

8302

8401

9018305033

main90183-05033

9048013013

main90480-13013

9354015016

main93540-15016

11 parts on this diagram · 4 diagrams in section
