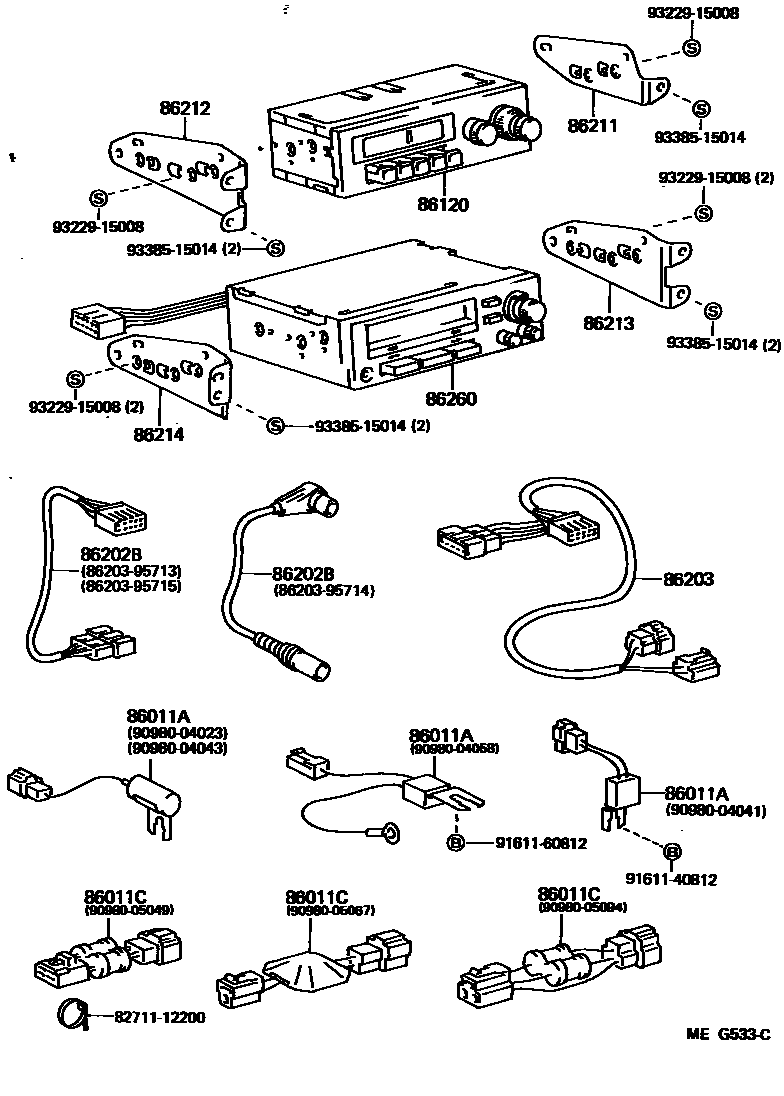

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011ACONDENSER, RADIO SETTING

main90980-04023iKM31,35,36198509-198705

REGULATOR

sub90980-04043

main90980-04041iYM30,40198509-198808

main90980-04043iKM31,35,36198705-198808

REGULATOR

main90980-04058iKM3#198509-198808

IG COIL

86011CFILTER, NOISE

main90980-05049iCM30,40,YM30,40..FXV198509-198808

WIPER MOTOR

main90980-05067iCM3#,4#,KM3#,YM30,40198509-198808

STOP LAMP SW

main90980-05094iCM3#,4#,KM3#,YM30,40198509-198808

FLASHER RELAY

86120RECEIVER ASSY, RADIO

main86120-14421iCM3#,4#,KM3#,YM30,40..DLX,GXL,SUC,SUP,SW,XL7198509-198608

AM

sub86120-10260

sub86203-20180

main86120-16350iCM3#,4#,KM3#,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7198608-198808

sub86120-10290

main86120-19016iCM30,40,YM30,40..FXV198509-198608

main86120-20310iCM30,40,KM30,YM30,40198509-198808

*17(TEN)

main86120-20530iCM30,40,KM30,YM30,40198509-198808

*18(TEN)

main86120-32190iCM30,40,YM30,40..FXV198608-198808

main86120-95707iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198509-198808

*17(PIONEER)

86202BWIRE, TAPE PLAYER

main86202-95710iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198509-198808

W/RADIO *17(PIONENR)

main86203-95713iCM3#,4#,KM3#,YM30,40198509-198608

W/RADIO AM OR *19

main86203-95714iCM30,40,KM30,YM30,40198509-198808

W/RADIO *17 OR *18(TEN)

main86203-95715iCM3#,4#,KM3#,YM30,40198608-198808

W/RADIO AM OR *19

86203WIRE, RADIO

main86202-95707iCM30,40,KM30,YM30,40198509-198808

W/RADIO *17 OR *18(TEN)

sub86203-95710

86211BRACKET, RADIO, NO.1

main86215-95700iCM3#,4#,KM3#,YM30,40198509-198808

86212BRACKET, RADIO, NO.2

main86212-95704iCM3#,4#,KM3#,YM30,40198509-198808

86213BRACKET, RADIO, NO.3

main86211-95712iCM3#,4#,KM3#,YM30,40198509-198808

86214BRACKET, RADIO, NO.4

main86212-95705iCM3#,4#,KM3#,YM30,40198509-198808

86260TAPE PLAYER ASSY

main86260-19015iCM3#,4#,KM3#,YM30,40198509-198608

W/RADIO AM OR *19

sub86260-90B09

sub86203-16100

sub86203-20180

main86260-19105iCM3#,4#,KM3#,YM30,40198608-198808

W/RADIO AM OR *19

main86260-20090iCM30,40,KM30,YM30,40198509-198808

W/RADIO *18(TEN)

main86260-20100iCM30,40,KM30,YM30,40198509-198808

W/RADIO *17(TEN)

sub86260-14300

main86260-95703iCM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD)198509-198808

W/RADIO *17(PIONEER)

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8620395713WIRE, RADIO

main86203-95713

8620395714WIRE, RADIO

main86203-95714

8620395715WIRE, RADIO

main86203-95715

9098004023

main90980-04023

9098004041

main90980-04041

9098004043

main90980-04043

9098004058

main90980-04058

9098005049

main90980-05049

9098005067

main90980-05067

9098005094

main90980-05094

9161140812

main91611-40812

9161160812

main91611-60812

9322915008

main93229-15008

9338515014

main93385-15014
